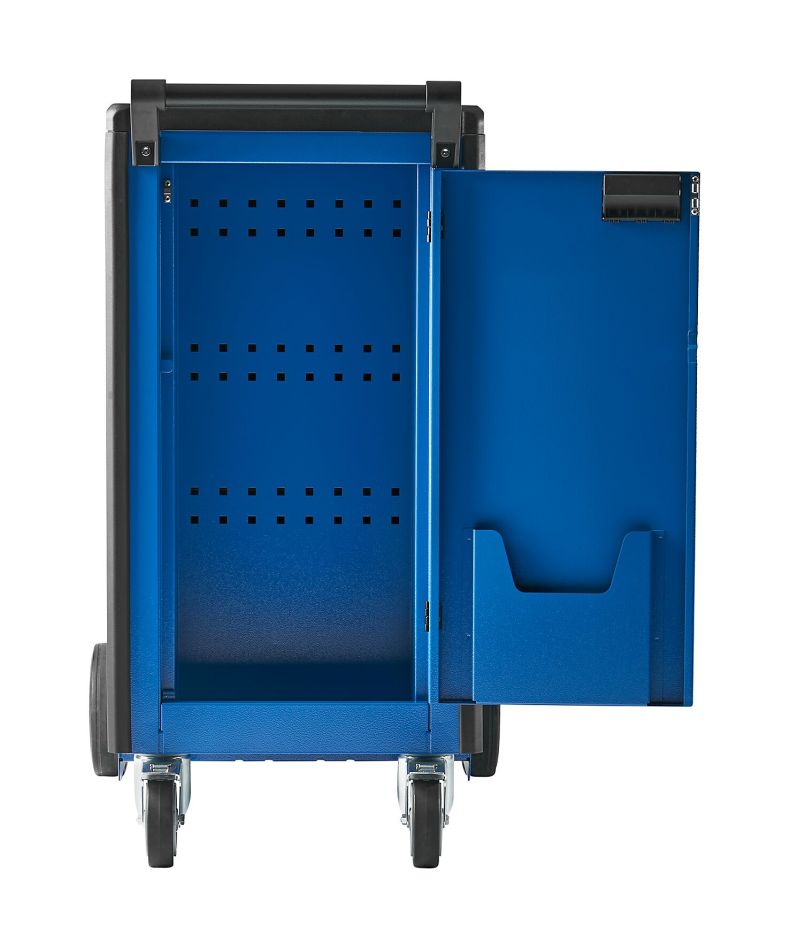

Gedore 1640755 2004 0321 Tool trolley with 6 drawers
Special features
- Body: Dimensions: H 812 x W 771 x D 478 mm
- ABS plastic shelf with 3 compartments for small parts, 2 spray can holders, 8 screwdriver holders
- Storage space with perforated plate (European perforation 10 x 38 mm) and 2 removable small parts drawers plus a door on the handle side
- Maneuverable and easy to steer thanks to the steering handle
- Front with Euro hole 10 x 38 mm for attaching hooks and tools
- Safety thanks to heel protection and impact protection along the edges for people and the environment
- Sheet steel, corrosion-resistant and scratch-resistant powder coated
- GEDORE blue
- Drawers: Centrally lockable via cylinder lock
- Wide drawers (W 480 x D 400 mm), fully extendable, removable
- Safety lock per drawer and storage compartment, one-hand operation
- Ball-bearing guide rails
- Individually configurable using longitudinal and transverse dividers (also available separately)
- Load capacity per drawer 40 kg, bottom heavy-duty drawer 60 kg (not with No. 2004 1000)
- Sheet steel, corrosion-resistant and scratch-resistant powder coated
- GEDORE blue
- Heavy-duty GEDORE base: Total static load capacity 1000 kg (dynamic 750 kg), 2 high-quality, roller-bearing GEDORE casters (fixed castors Ø 200 mm), 2 smooth-running, ball-bearing GEDORE castors (swivel castors Ø 125 mm), both with locking and swiveling mechanism
- GEDORE axle construction ensures: smooth-running, maneuverable, and track-stable properties even under maximum load
- Accessories: Drawer dividers (LT) and cross dividers (QT) made of galvanized sheet steel (also available separately)
- Options: Can be optimally equipped with GEDORE tool modules (No. 1500 ES/1500 CT)
- Can be expanded as desired with GEDORE tool boxes, back panels, and tool holders
- Other drawer variants on request
- Special colors and finishes on request
- Delivery without tools and accessories
Technical data
- Capacity (number of pieces): 1
- Total length: 606 mm
- Total width: 875 mm
- Total height: 985 mm
- Net weight: 82 kg
- 1000 V insulated: No
- VDE certified: No
- Material: sheet steel
- Surface: powder coated
- Color: RAL 5017
- RAL color: Blue
- Dimensions (L x W x H): 985x875x606 mm
- Drawer type: 3x Type 1, H = 67 mm 2x Type 2, H = 137 mm 1x Type 3, H = 207 mm
- Number of cross dividers: 2
- Number of longitudinal dividers: 3
- Number of drawers: 6
- Dynamic load capacity: 750 kg
- Individual pull-out lock: No
- Number of wheels: 4
- Working height: 985 mm
- Static load capacity: 1000 kg
- Load capacity per drawer: 40 kg
- Load capacity heavy-duty drawer: 60 kg
- Fixed wheel diameter (2x): 200 mm
- Swivel wheel diameter with brakes (2x): 125 mm
