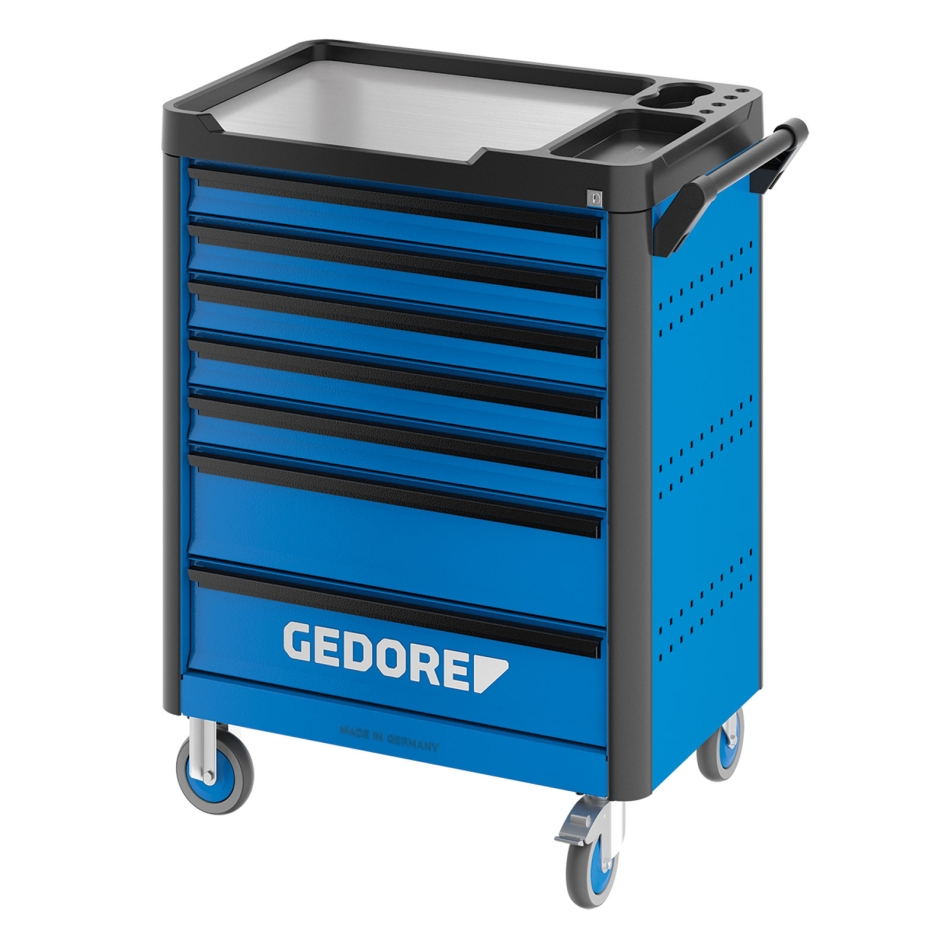

Gedore WHL-L7-TS-308 Tool Trolley 308-piece 3082113
Body
- Worktop with PP synthetic work surface with front cut-out and raised protective edge, as well as small extra storage bins, spray can and screwdriver holder
- Maneuverable and easy to steer thanks to the steering handle

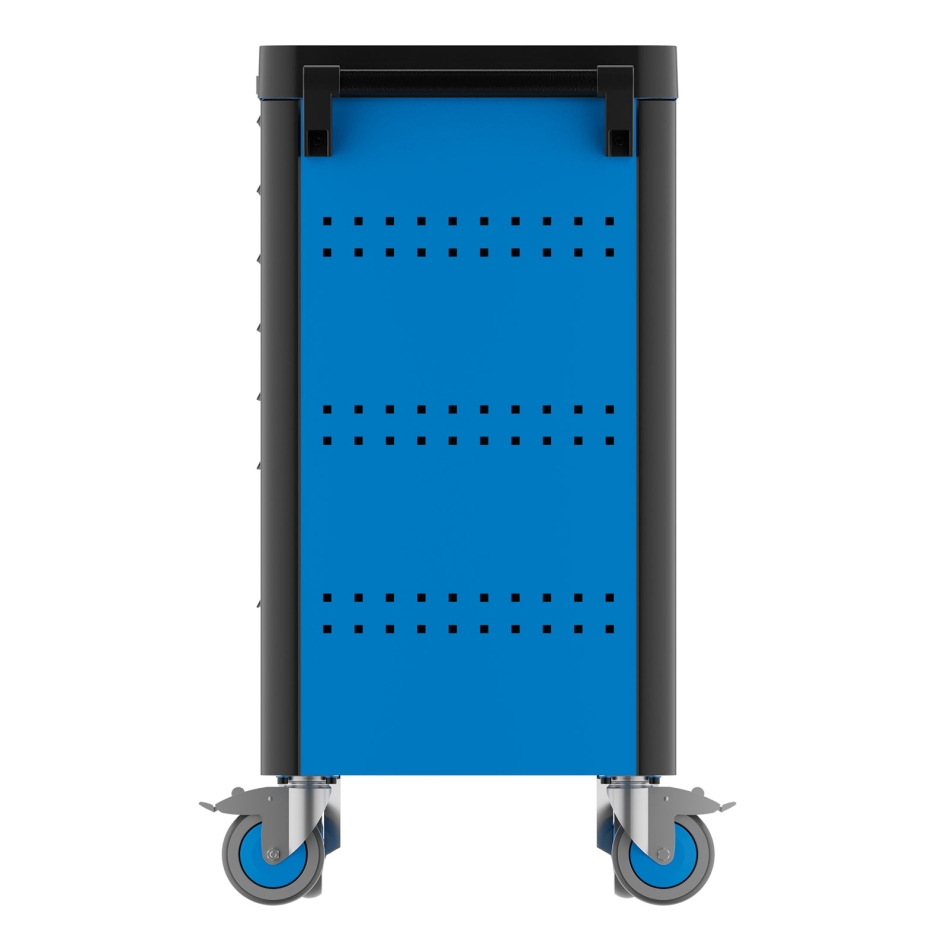

- Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools
- Impact protection along the edges – minimization of impact accidents
- Stainless steel inlay element in the work surface
- Body welded, self-supporting and torsionally rigid
- Sheet steel, corrosion-resistant and scratch-resistant powder coated
Drawers
- Individual pull-out locking mechanism, only one drawer can be opened at a time, one-hand operation
- Centrally lockable with cylinder lock and safety key, folds away under load and does not break off
- 5 flat, wide drawers (W 640 x D 400), fully extendable
- 2 high, wide drawers (W 640 x D 400), fully extendable
- Ball-bearing guide rails
- Drawers loadable up to 40 kg
- Sheet steel, corrosion-resistant and scratch-resistant powder-coated
GEDORE base
- Total load capacity 500 kg
- 4 ball-bearing smooth-running castors (swivel castors Ø 125 mm) with closed hub caps, two of which with driving and swivel locking
- Even under heavy load: smooth-running, maneuverable and stable on the track
Options
- Optimally fillable with GEDORE tool modules (1500 ES, 1500 CT, 2005 CT, TS-147, TS-190, TS-308)
- Individually configurable with drawer dividers and cross dividers
- Special colors and versions on request
Dimensions
- Width 785 mm
- Depth 510 mm
- Height 1045 mm
Standard included
308-Piece
- Reversible ratchet 1/4 127 mm
- Socket wrench 1/4", 12-kt UD profile 4 to 13 mm
- Cardan extension 1/4" 97 mm 1
- Sliding handle 1/4" 115 mm
- Socket wrench 1/4", external TORX E4, E5, E6, E7, E8, E10
- Screwdriver bit 1/4” 2.5 - 3 - 4- 5 - 5.5 – 6 - 6.5 - 8 mm
- Screwdriver bit 1/4”
- Screwdriver bit 1/4" PH 1, 2, 3
- Screwdriver bit 1/4" PZ 1, 2, 3
- Adapter 1/4" 6-sided - 1/4" 4-sided
- Bit adapter 1/4" 6-sided - 1/4" 4-sided
- Multi-handle 1/4"
- Bit holder 1/4"
- Reversible ratchet 1/2"
- Cardan extension 1/2" 125 mm, 250 mm
- Extension 1/2" 2.1/2" / 63 MM
- Socket wrench 1/2", 12-kt UD profile 10 mm up to 22 mm, 24, 27, 30, 32 mm
- Socket wrench 1/2" Allen 5 mm to 10, 12, 14 mm
- Ring spanner UD profile 8 to 22, 24 mm
- Allen key set in holder 8-piece 2-10 mm
- 3C screwdriver with impact cap, slotted 3.5 - 5.5 – 6.5 – 8 mm
- 3C screwdriver with impact cap, Phillips PH 1, PH 2
- Bench hammer with ash handle, 500 g
- Center 120x12x5 mm
- Pin driver 1.5 - 3 – 4 mm
- O-sided cold chisel, 250x24 mm
- O-sided scoring chisel, 125x10x5 mm
- O-sided punch 120x12x5 mm
- Water pump pliers 10", 15-way adjustable
- Combination pliers Power, 180 mm, 2-component handle
- Telephone and crimping pliers 200 mm, 2-component handle
- Wide cutting pliers Power 180 mm, 2-component handle
- Helix drill bit set in cassette 24-piece
- Open-end wrench 6x7 - 8x9 - 10x11 - 12x13 - 14x15 - 16x17 - 18x19 - 20x22 - 24x27
- Corgring pliers, external clamping, straight, 10-25,
