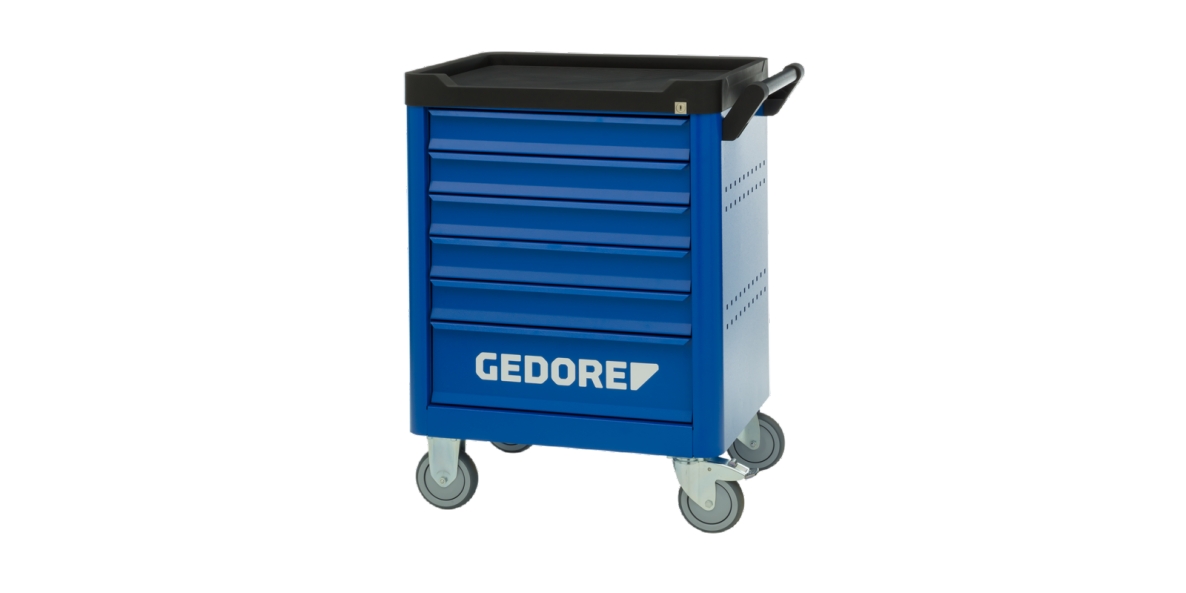

Gedore WSL-M-TS-172 Tool Trolley 172-piece 3100197
Special features
- Professional workshop with 6 fully extendable drawers and anti-tilt mechanism, welded body, self-supporting and torsionally rigid, and 4 lightweight ball-bearing wheels with protective caps.
- Sheet steel, corrosion-resistant and scratch-resistant powder coated
- Single-pull locking prevents more than one drawer from being opened with one hand
- Central locking with cylinder lock
- Capacity per drawer 20 kg
Technical data
- Dimensions
- Height 903 mm
- Width 625 mm
- Thickness 510 mm
- Drawer dimensions: W 480 x D 400 mm with central extension
- 5 drawers height 80 mm
- 1 drawer height 160 mm
- Wheels: 2 steerable (one with brake), 2 rigid
- Load capacity: max. 300 kg
Body
- Worktop with PP-plastic work surface with front cut-out and raised protective edge, as well as small extra storage bins, spray can holder and screwdriver holder
- Maneuverable and easy to steer thanks to the steering handle
- Side panels with Euro perforation 10 x 38 mm for attaching hooks and tools
- Impact protection along the edges – minimization of impact accidents
- Stainless steel inlay element in the work surface
- Body welded, self-supporting and torsionally rigid
- Sheet steel, corrosion-resistant and scratch-resistant powder coated
Drawers
- Individual pull-out locking mechanism, only one drawer can be opened at a time, one-hand operation
- Centrally lockable with cylinder lock and safety key, folds away under load and does not break off
- 5 flat, wide drawers (W 480 x D 400), fully extendable
- 2 tall, wide drawers (W 480 x D 400), fully extendable
- Ball-bearing guide rails
- Sheet steel, corrosion-resistant and scratch-resistant powder coated
GEDORE base
- Total load capacity 300 kg
- 4 ball-bearing smooth-running casters (swivel casters Ø 125 mm) with closed hub caps, two of which with driving and swivel locking
- Even under heavy load: smooth-running, maneuverable, and stable on the track
Options
- Optimally fillable with GEDORE tool modules
- Individually configurable with drawer dividers and cross dividers
- Special colors and versions on request
Dimensions
- Width 785 mm
- Depth 510 mm
- Height 1045 mm
- Weight 77 kg

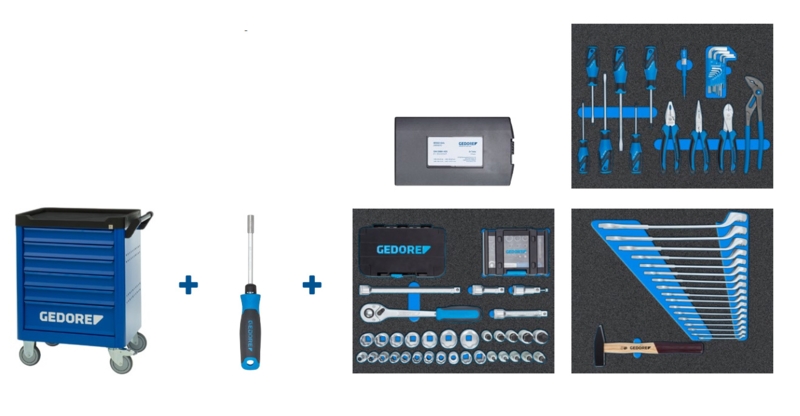

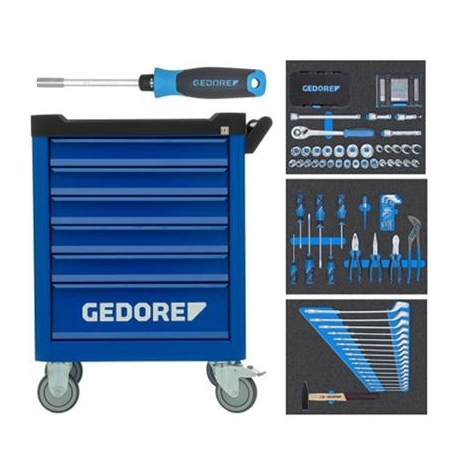

Standard included
- 172-Piece
- Ring spanners, no. 1 B, SW 8 10 11 12 13 14 15 16 17 18 19 21 22 24 27 30 32 mm
- Socket wrenches, no. C19, SW 8 10 11 12 13 14 15 16 17 18 19 20 21 22 24 27 30 32 mm
- 1/2” socket screwdrivers 6-point, no. IN19, SW 5 6 7 8 9 10 12 14 17 19 mm
- Reversible ratchet 1/2”, no. 1993 U-10 T
- 1/2” extension, no. 1990, 75 125 250 mm
- 1/2” extension, no. 1990 M, with magnet holder
- 1/4” ratchet bit box, 35-piece, no. 666-U-20
- Torsion bit set, no. 666-042
- 1/4” SilentGEAR ratchet screwdriver, no. 2675 with bit holder
- Right-angle hex wrenches, no. H 42-10, 6-point SW 1.3 1.5 2 2.5 3 4 5 6 8 10 mm ?
- 3C screwdrivers, no. 2150, 4 5.5 6.5 8 mm ?
- 3C screwdrivers, no. 2160 PH 1 2
- Adjustable nut wrench, no. 142 10 TL, 10"
- Telephone pliers, no. 8133-200 JC, 200 mm
- Side cutting pliers POWER, no. 8316-180 JC, 180 mm
- Voltage tester saw cut, no. 4615 3, 220-250 V, 3 mm
- Engineering hammer, no. 4 E-500, 500 g
- Spiral drill set, no. 8550-024, Ø 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10 10.5 mm
