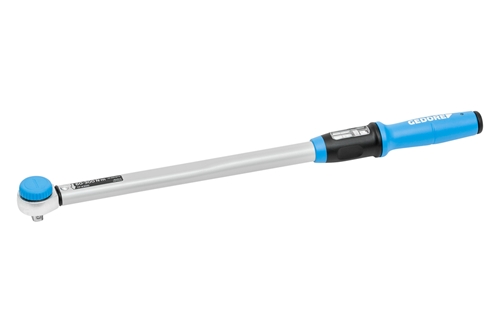

Gedore 3278395 TF-K300 Torque Wrench Torcofix TF-K 1/2" 60-300 Nm
Special features
- Controlled tightening of screws in the range of 60-300 N · m / 45-220 lbf · ft
- Adjustable, unlocking, and robust torque wrench with integrated square drive ratchet for industry and trade
- Execution:
Classified according to DIN EN ISO 6789-2: 2017 Type II Class A, calibrated to a maximum permissible deviation of +/- 3% and therefore more accurate than the +/- 4% required in the standard - Incl. Traceable test certificate (DIN EN ISO 6789-2: 2017)
- For controlled clockwise and counterclockwise tightening (move the square to change direction)
- 1/2" mushroom head reversible square with ball lock
- Robust, matte powder-coated steel tube construction, with galvanized ratchet and high-quality plastic parts
- New ergonomic handle, shaped to the natural grip of the hand
- Clearly recognizable and tactile hand centering aid and calibration aid in the middle of the handle
- Dual scale N · m / lbf · ft with vernier scale (N · m), enlarged viewing window protects against wear and dirt
- With vernier scale for N · m main scale for setting intermediate scale values; lbf · ft
- Adjustment only via main scale
- Vertical alignment of the scale, torque setting therefore suitable for left- and right-handed users
- Scale marking directly above the scale, prevents reading errors (parallax error)
- Unit labeling integrated into the scale frame and also protected against wear via a viewing window,
- Precise spring mechanism generates a clearly perceptible and audible trigger signal when the set torque value is reached
- Includes cutter, prevents rolling away when placing the tool
Technical data
- Distance housing - center square: 22 mm
- Drive square [metric]: 12.5 mm
- Drive square [imperial]: 1/2 "
- Total width [mm]: 46 mm
- Total height [mm]: 51.6 mm
- Total length [mm]: 586 mm
- Net weight [g]: 1373 g
- Net weight [kg]: 1.37 kg
- Calibration length: 495.3 mm
- Head width 1 [mm]: 46.0 mm
- Head height 1 [mm]: 36 mm
- Backrest swivel angle: 7.5 °
- Grading [lbf · ft]: 10 lbf · ft
- Grading [n · m]: 10 N · m
- Torque (max.) [Lbf · ft]: 220 lbf · ft
- Torque (max.) [Nm]: 300 Nm
- Torque (min.) [Lbf · ft]: 45 lbf · ft
- Torque (min.) [Nm]: 60 Nm
- Drive type / drive: mushroom head
- Grading: 10
- Number of teeth: 48
- Tightening direction: left and right
- Release mechanism: short stroke release
- Fixed setting: No
- Material: steel tube construction, high-quality plastic parts
- Cut Nm: 1 Nm
- Precision +/-: +/- 3%
- Locking square: ball lock
- Scale type: Dual
