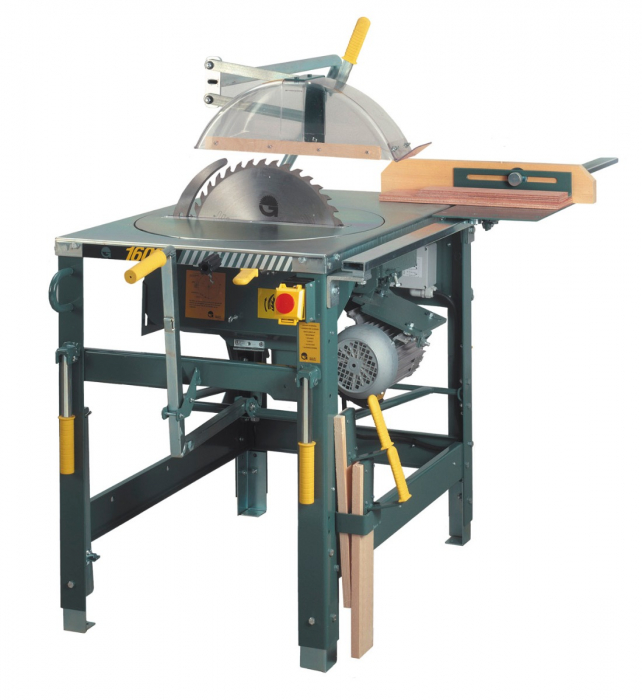

Gjerde 90052 1603-NL Construction Saw 3.6 kW 400 Volt
This very robust three-phase powered construction saw is ideally suited for the most common sawing tasks on construction sites. By using the rotary blade, bevel adjustment, and height adjustment with articulated arm, one can rip, crosscut, miter, double miter saw, and create rebates with the greatest ease of operation.
Optionally, this saw can be equipped with various feed and outfeed tables, resulting in a highly ergonomic sawing machine that allows one to effortlessly saw long timber beams and large-dimension sheet material.
Standard equipment includes:
- Wide bracket with a feed width of 930 mm with transparent protective cover.
- HM saw blade 400 mm, tiltable up to 45° and adjustable to a height of 148 mm at 90° and up to 90 mm at 45°.
- Long guide track allowing the guide to be set outside the table top up to 930 mm from the saw blade.
- Turning blade adjustable up to 105°.
- Degree stop for quick setting to 0° - 45° - 90°.
- Lifting arm for cutting and height adjustment (remains in place independently of the turntable)
- Motor with mechanical brake.
Technical data
- Tabletop (LxW) 930 x 640 mm
- Tabletop working height 850 - 900 mm
- Transport height 1210 mm
- Machine weight approx. 140 kg
- Saw blade HM 400 x 30 x 40 TDS
- Saw blade cutting width 3.5 mm
- Sawing height at 90° 148 mm
- Sawing height at 45° 90 mm
- Motor power 3.6 kW
- Supply voltage 400 V, 3 phases, 50Hz
- Nominal/Thermal protection 400V, 8.5 A
- Motor temperature protection PTC
- Saw spindle speed 2300 RPM
- Saw spindle drive 3 V-belts
- Cutting speed, saw blade 300 mm 48 m/sec
- Spiking knife Hardened steel 3.0 mm
- Machine cabling 7 x 1.5 mm²
- Connection cable (max. 10 m) 4 x 2.5 mm²
- Fuse 16 A slow
- Workplace noise Unloaded 80.9 dB (A) Loaded 84.7 dB (A)
- Dust extraction: Diameter under tabletop 100 mm On top guard 75 mm
- Flow-through width 930 mm
- Saw blade bevel 0° to 45°
- Tabletop adjustment angle 105° (+90° to -15°)
Standard included
- Saw blade
- 2 pcs. push sticks
- Stop
