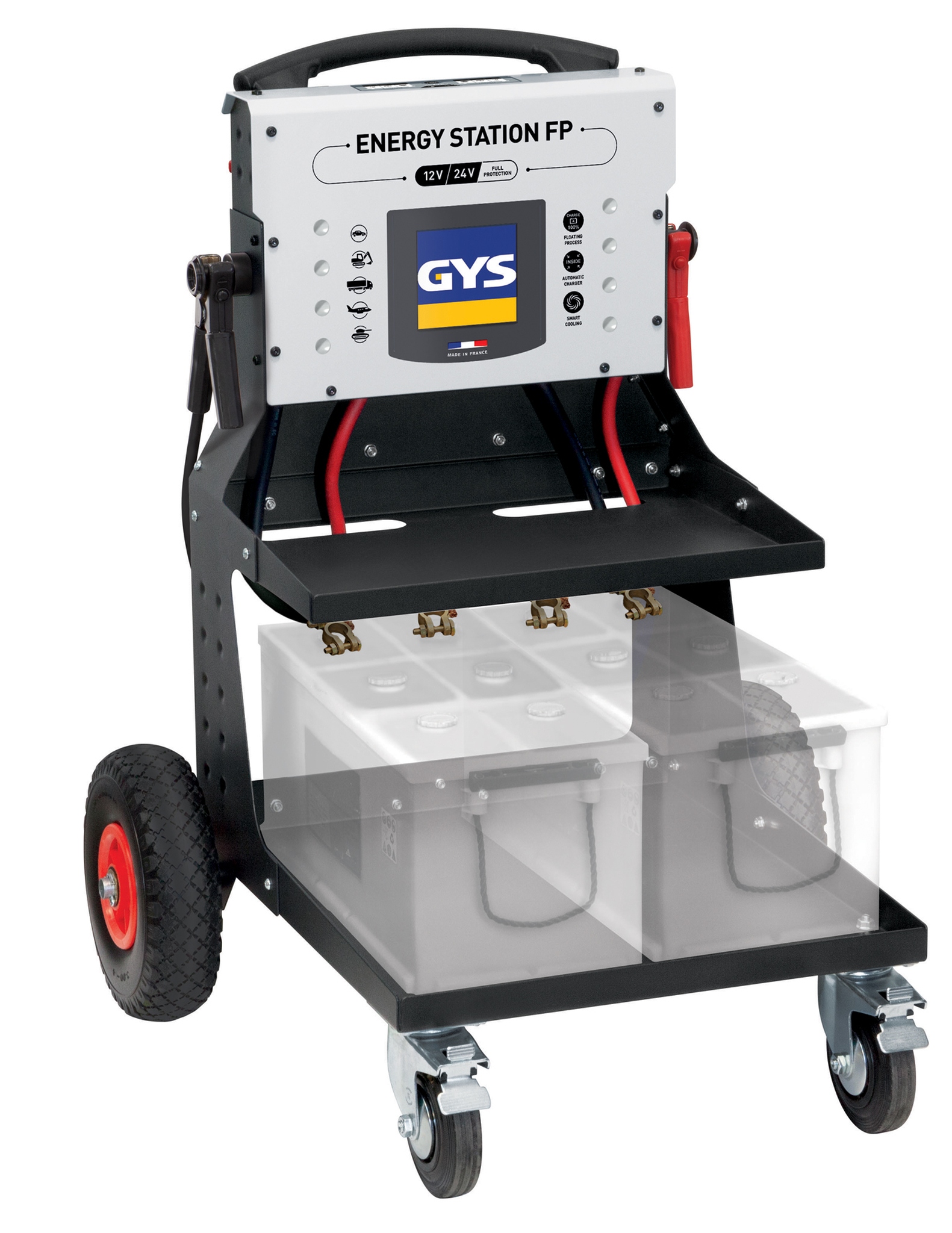

Gys 5192069589Energy Station Battery Booster excl. batteries
Special features
- Designed for starting 24V vehicles such as trucks, construction and agricultural vehicles, and buses.
- AUTONOME STARTER 12/24V (without included batteries).
- Flexible battery system can be equipped with one or two lead-acid batteries (gel or liquid) from 100 to 375 Ah.
- Starting power depends on the capacity of the selected batteries.
- Integrated battery tester checks the charge status and capacity of internal batteries before starting a vehicle.
- Automatic, intelligent charger (12V/30A) charges internal batteries autonomously and alternately
- Can also charge an external lead-acid battery (100 to 375 Ah).
- Control panel with status lights for a clear overview of the charge status.
- Equipped with a battery switch and 300A fuse.
- Protected against reverse polarity with alarm light and warning signal.
- Robust construction with all-terrain rear wheels and swivel casters at the front.
- Maneuverable and suitable for both indoor and outdoor use.
- IP23 rated: protected against rain.
Technical data
- Functions: Start-up, Charging, Testing, Protections
- Operation: Batteries not included
- Charging voltage: 12–24 V
- Battery capacity (per battery): 100–375 Ah (12 V Pb)
- Charging current: 30 A, automatic in 6 steps
- Starting current: 300 A
- Protection class: IP23
- Cables: Length: 2 x 2.5 m
- Thickness: 70 mm²
- Clamps: Ø 62 mm, Ø 50 mm
- Dimensions: 92 cm length
- Weight (without batteries): 29 kg
- Max. weight (with batteries): 100 kg
