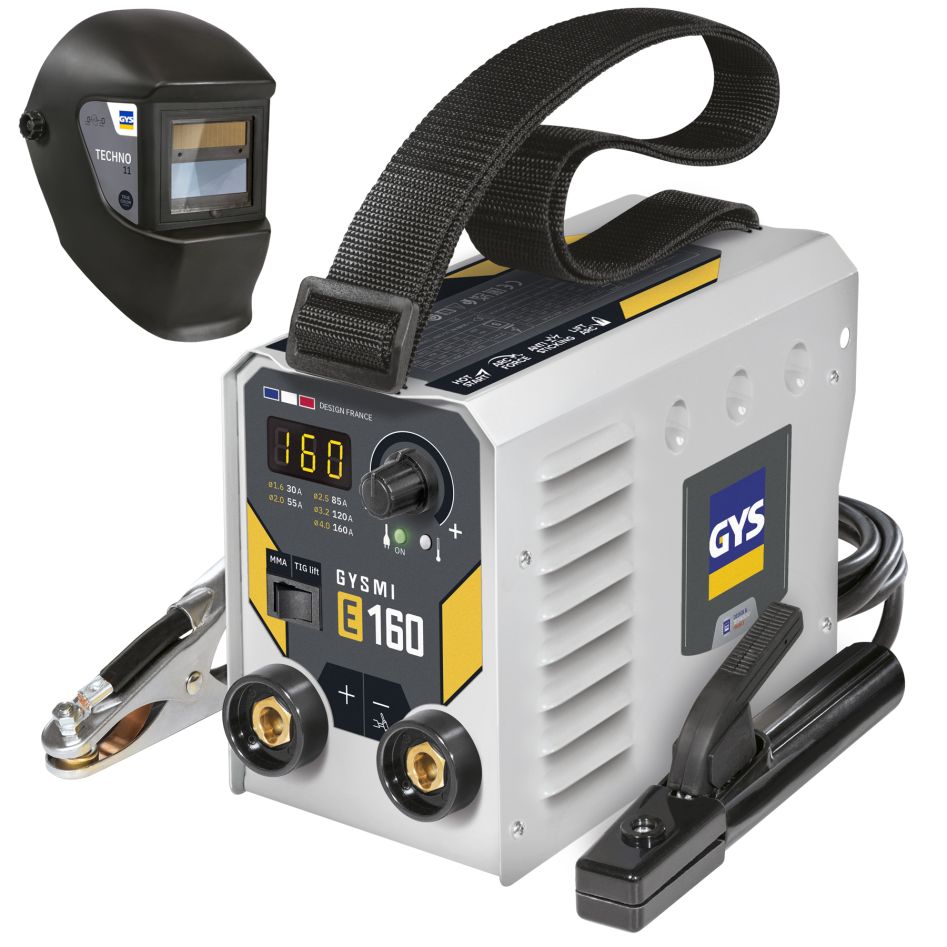

GYS 5192083783 GYSMI E160 Welding Inverter + LCD Techno 11 True Color Welding Helmet

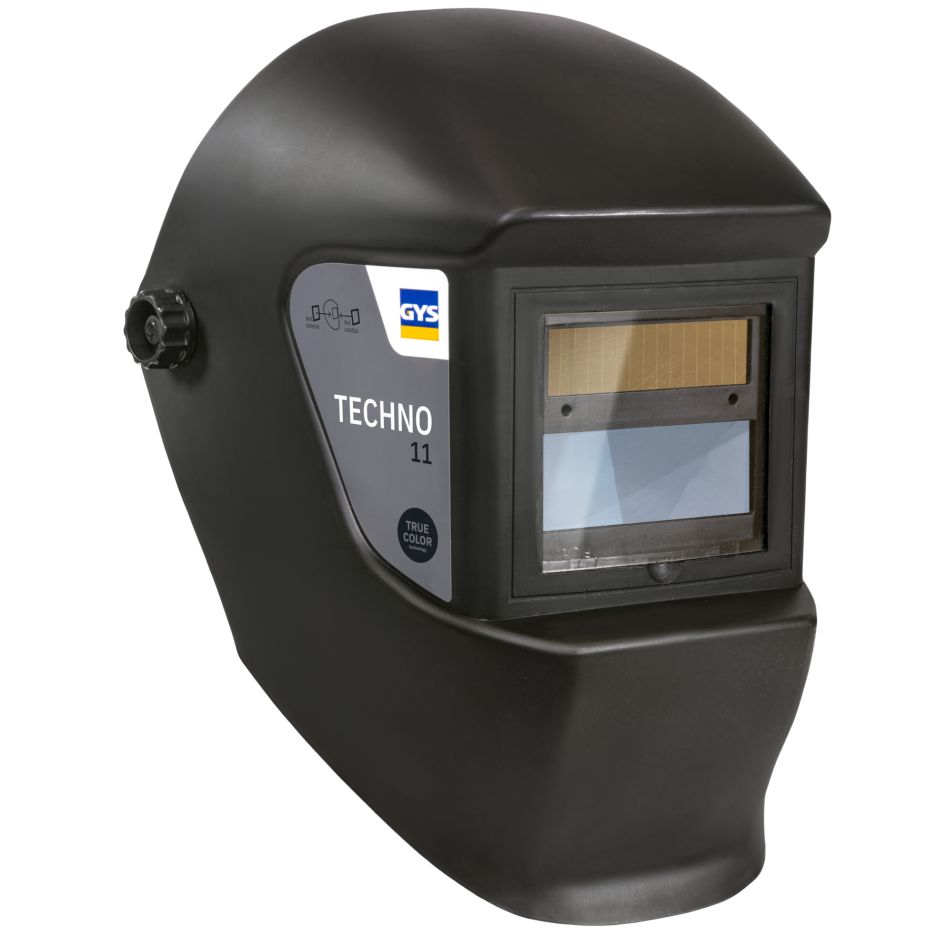

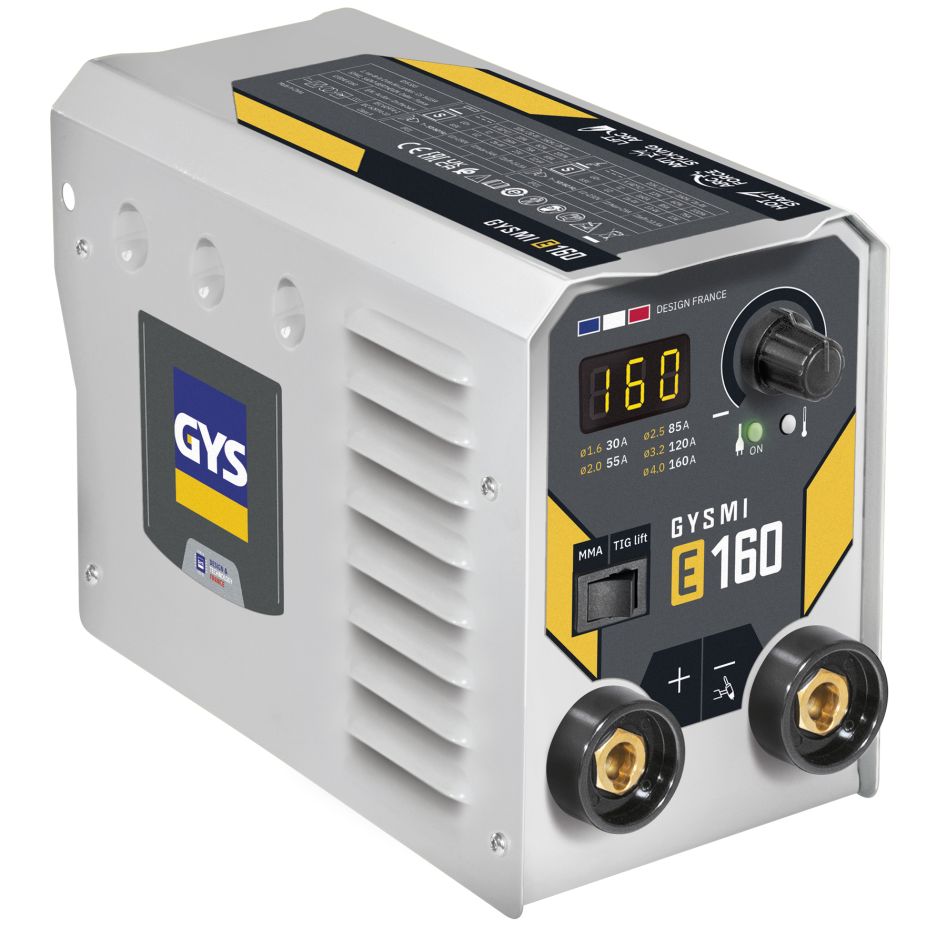

The GYSMI E160 welding inverter is a single-phase inverter welding machine with 2 welding procedures: MMA and TIG Lift. The GYSMI E160 features the latest IGBT inverter technology, has very high ignition quality, and perfect arc stability. Thanks to the clear digital screen, you can quickly and accurately enter your welding settings and effortlessly perform all professional welding work on steel, cast iron, and stainless steel up to 10 mm thick. The Techno 11 True Color welding helmet from GYS is essential for safety. The opto-electronic hood protects the welder's face and eyes against UV, infrared, and spatter. The mask switches fully automatically from clear to tinted in a fraction of a second as soon as it is ready for use. The mask is equipped with a headband that frees the welder's hands and offers all the necessary comfort for welding work.
Special features
- MMA: Easily welds most types of coated electrodes: rutile, stainless steel, cast iron, and basic (up to Ø 4.0 mm)
- TIG Lift: For performing meticulous work on fine sheet metal, without the electrode sticking to the weld bead
- Immediate ignition thanks to the Hot Start function
- Constant welding power
- The direct current ensures soft fusion
- Overload protected
- Hot Start: ignition assistance.
- Arc Force: temporary current increase during difficult welding situations.
- Antisticking: reduces the risk of the electrode sticking when it comes into contact with the workpiece.
- Lightweight (2.9 kg).
- Very compact, can be easily stored (shelf, trolley, etc.)
- One handle carrying strap/shoulder strap, so you can easily take the device with you.
- Can be connected to a power generator.
Technical data
- Type: Inverter
- Model: MMA Welding Machine
- Connection voltage: 230 V
- Length: 230 mm
- Width: 100 mm
- Height: 150 mm
- Number of phases: 1
- Weight: 2.9 kg
- Max. Amperage: 160 A
- Protection class (IP): IP21
- Fuse (slow-blow): 16 A
- Infinitely variable: Yes
- No-load voltage: 65 V
- Welding current (electrode): 10 / 160 A
