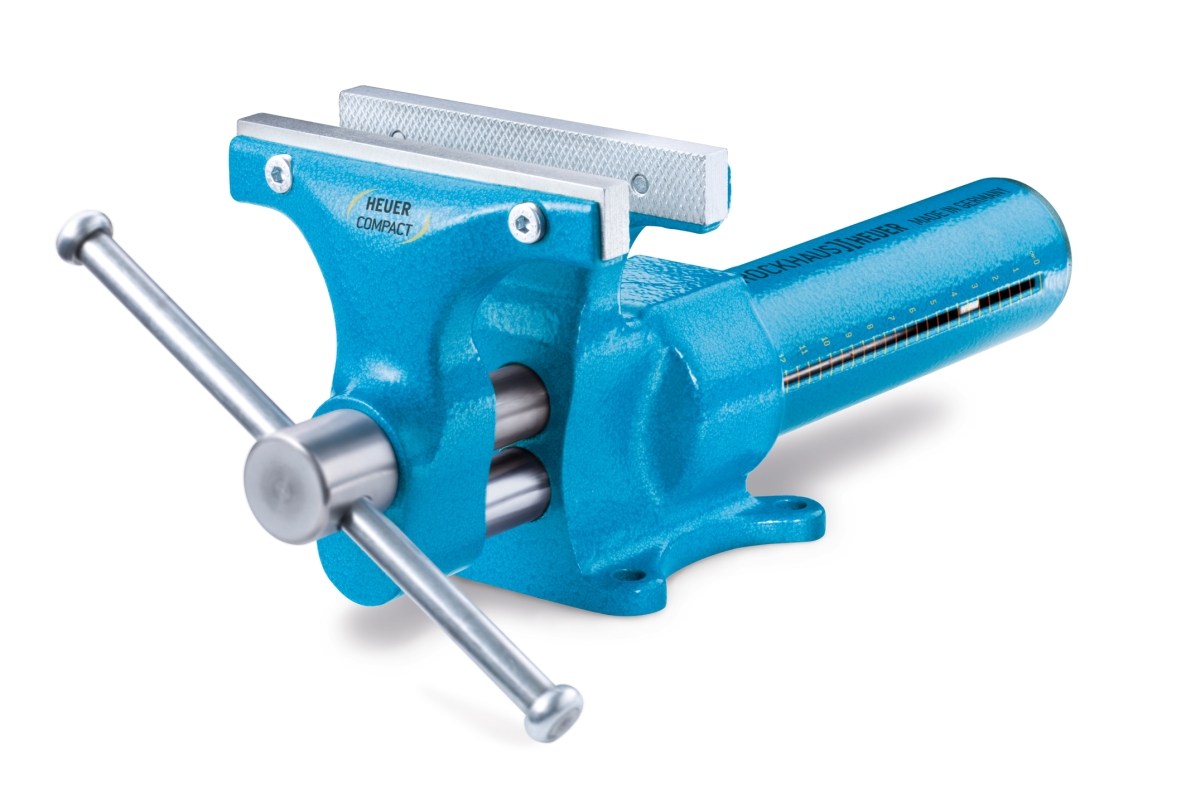

HeuerBrockhaus 118003 Compact vise set with table clamp and protective jaws - 120mm
The HEUER Compact owes its name to its highly efficient design. Functionality is the most emphasized aspect of the design. The acclaimed high Brockhaus HEUER quality remains unchanged.
The highlight is the completely new, revolutionary, quick-adjusting HEUER Quicklaunch. This makes changing the setting of the HEUER Compact literally a piece of cake – from 0 to 130 mm in 3 seconds. And this is done without breaking the clamping lever! A diaphragm indication assists with adjustment. The spindle clearance required for optimally functioning quick adjustment does not affect the parallelism of the jaws during the clamping phase. The compression spring guarantees secure locking in the desired position. Locking occurs in a visible and audible manner.
Special features
- Weighing only 4.5 kg and with a substantial 10 kN compression force, it is a lightweight in its class
- The HEUER Compact naturally has a large shelf depth
- An additional advantage is its excellent expandability with standard Brockhaus Heuer accessories
- Extra flexibility is ensured by replaceable, reversible jaws with smooth and serrated pressing surfaces

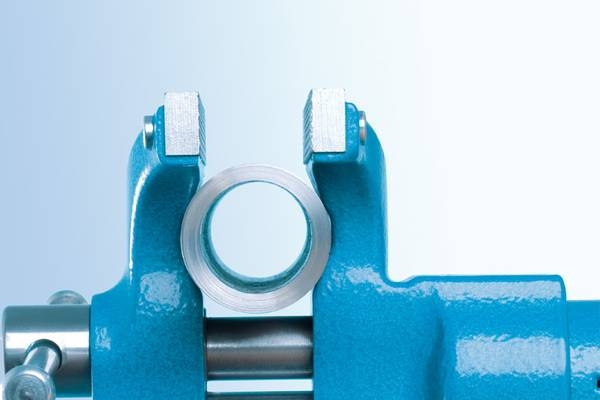

- Furthermore, the HEUER Compact features integrated tube jaws in the front and rear jaws
- Sensible additional accessories include, for example, the HEUER Table Bracket 100 or the HEUER Turntable 100 and a wide selection of magnetic jaws
- HEUER Compact – versatility in a portable format
Technical data
- Range (mm): 130
- Clamping depth: (mm) 65
- Jaw width (mm): 120
- Vipe weight: 4.5 kg
- Total weight: 7.95 kg
- Min/max diameter of the tube to be attached to the tube jaws: 15-50
Scope of delivery
Includes
- Case
- Table clamp
- 4 x 2 Jaws (N,F,G,P)
- 1x Heuer Brockhaus118003 Compact vise set with table clamp and protective jaws - 120mm
