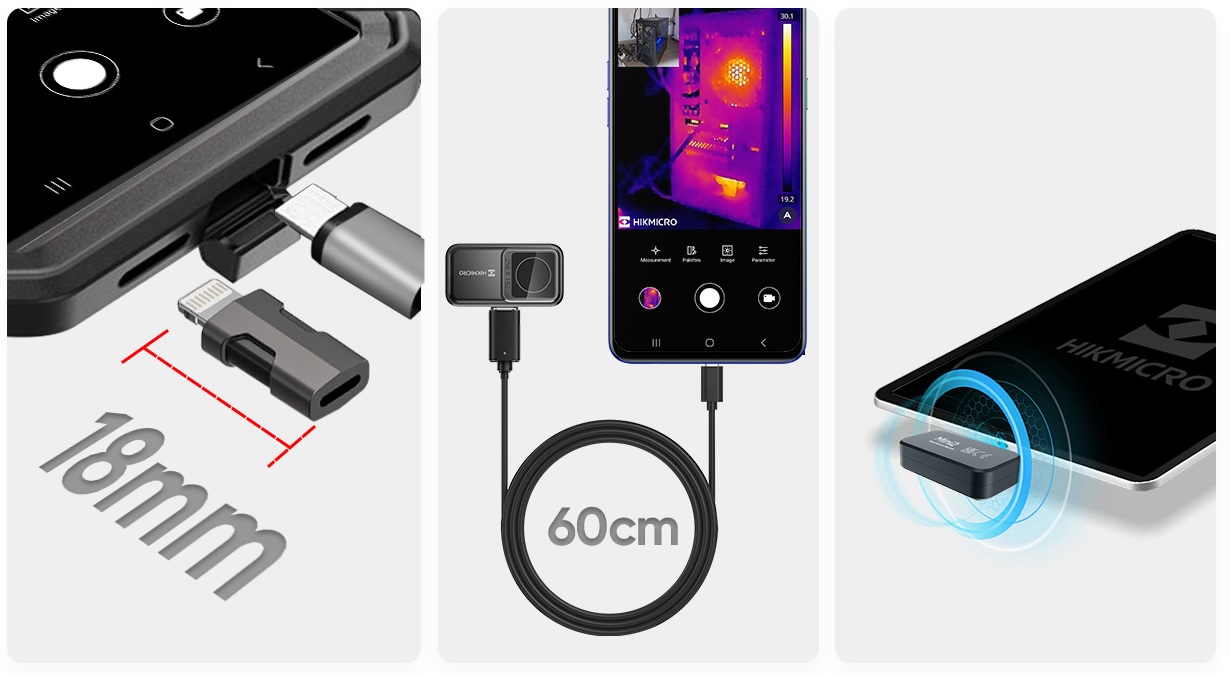

HIKMICRO545803 Mini2-V2 Thermal Imaging Camera
Superior performance in a compact size - Explore the world with high accuracy in thermal light.
Special features
- Compatible with iPhone 15 series and Android; Includes Lightning-to-USB-C adapter for iPhone 14 and older
- Highly sensitive VOx detector (NETD < 40 mK) with a resolution of 256 × 192 pixels for sharp thermal images
- 50° wide-angle lens for a wide field of view, ideal for inspecting walls, floors, and facades
- Temperature range from -20 °C to 400 °C with high measurement accuracy (±2 °C / ±2%)
- Ultimately compact and lightweight design (42 × 22.5 × 11.2 mm, only 20 g)
- Connects directly to smartphone or tablet; Ready to use within seconds
- No internal battery: powered via smartphone with low power consumption
- Robust aluminum housing (IP40), drop-resistant up to 1 m and 3-year warranty
- Advanced features such as PIP mode, 15 color palettes, photo and video recording
- Professional settings for optimal thermal imaging and accurate measurements
Technical data
- IR resolution: 256 × 192 (49,152 pixels)
- NETD: < 40 mK (@ 25 °C, F# = 1.0)
- Frame frequency: 25 Hz
- Detector pitch: 12 µm
- Spectral range: 7.5 – 14 µm
- Focal length: 3.5 mm
- F-number: F1.0
- Field of view (FOV): 50° × 37.2°
- Focus mode: Focus Free
- SuperIR: Yes, on captured images and live view
- Minimum focusing distance: 0.2 m (0.66 ft)
- Image rendering: Thermal, PIP
- Image modes: White-hot, Black-hot, Rainbow, Iron Arc, Sepia, Color, Ice Fire, Rain, Red-hot, Green-hot, Dark Blue, Combined
- Object temperature range:
- -20 °C to 150 °C (-4 °F to 302 °F)
- 100 °C to 400 °C (212 °F to 752 °F)
- Accuracy: Max. ±2 °C / ±3.6 °F or ±2% (at 15–35 °C ambient temperature and object > 0 °C)
- Measuring instruments: Center, hot point, cold point
- Analysis instruments: User-definable: 3 points, 3 rectangles and 1 line
- Level and overvoltage mode: Automatic / Manual
- Power consumption: 360 mW
- Protection level: IP40
- Drop test height: 1 m (3.28 ft)
- Operating temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Weight: approx. 20 g (0.044 lb)
- Dimensions: 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 inches)
- Interface: USB-C Android, USB-C iOS, Lightning iOS (incl. Lightning-to-USB-C adapter)
- Device compatibility: iOS (v14+), Android (v7+), Windows devices
- Software compatibility: HIKMICRO Viewer (iOS/Android), HIKMICRO Analyzer (Windows)
Scope of delivery
- Carrying bag
- Extension cord
- Extra long adapter (Lightning)
- Extra long adapter (USB-C)
- Manual
