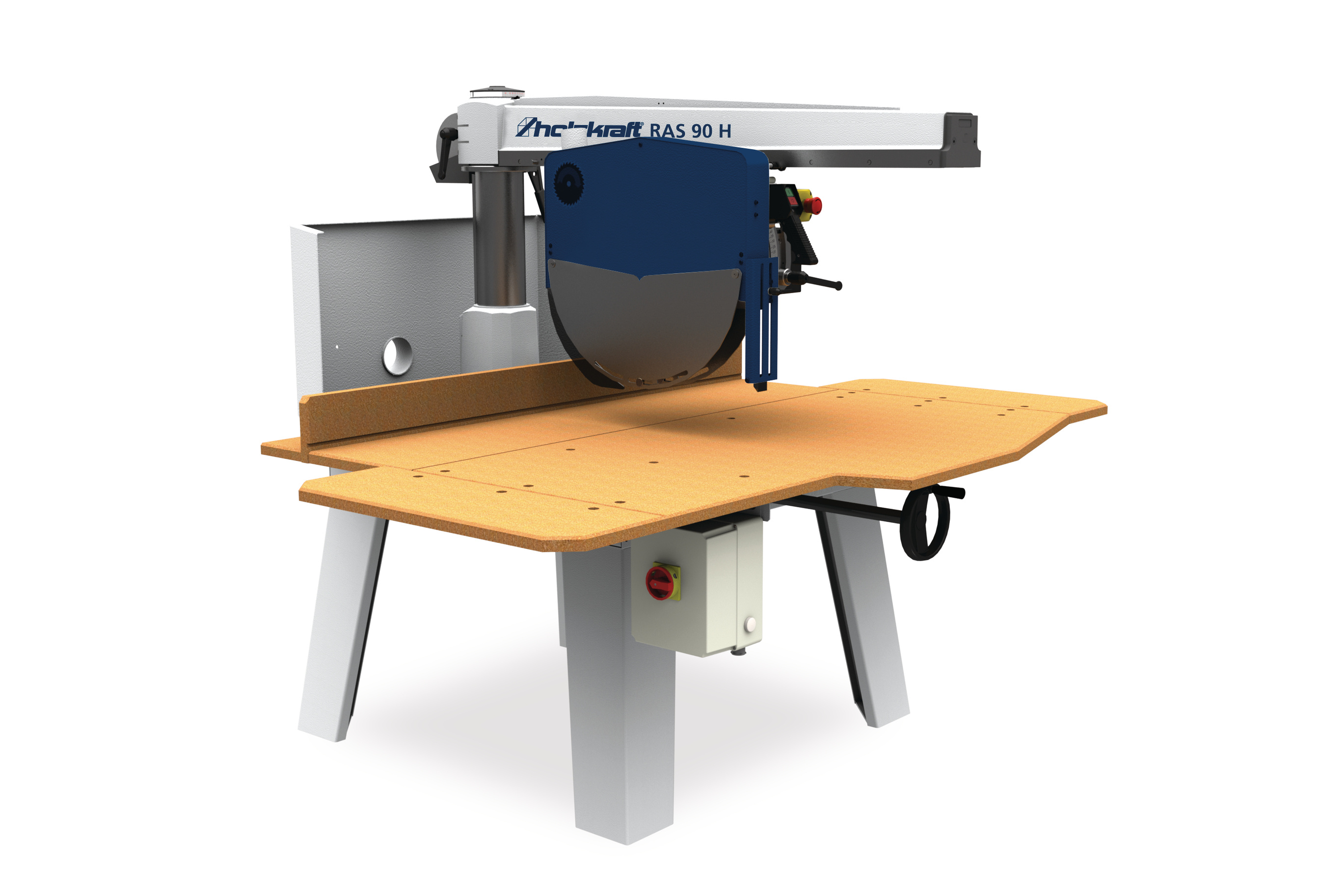

Holzkraft RAS90H Radial Saw 565 mm 5.5 kW 400V
Special Features
- Radial saw for sawing and cutting floorboards, beams, etc.
- Quick switching between double miter sawing or cutting to length
- Saw blade with a large diameter of 565 mm and chip limiter
- Robust cast iron swivel arm with replaceable square guides
- Movable saw unit with return spring

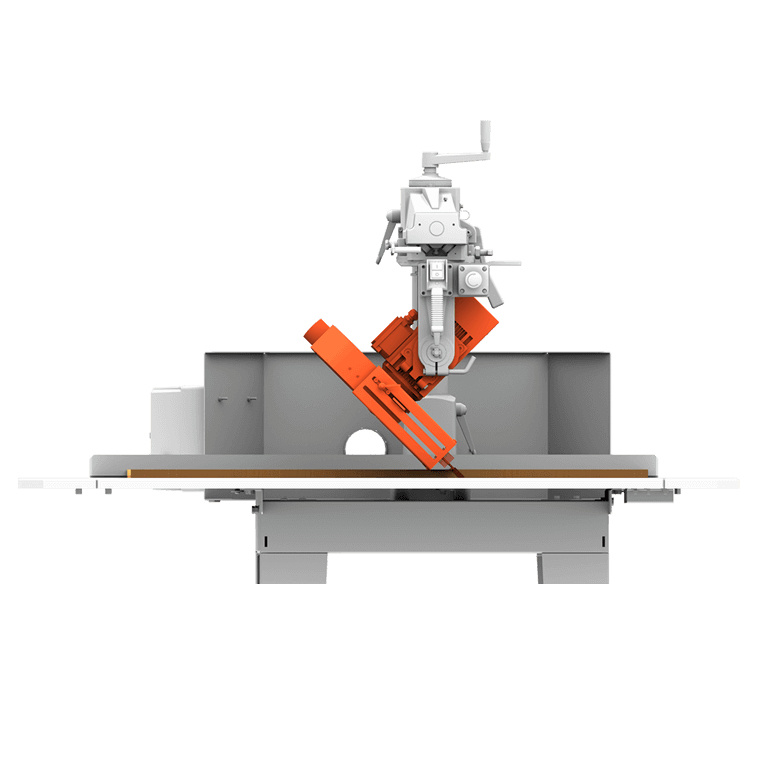

- Saw unit can be swiveled 45 degrees to one side
- Motor with mechanical brake
- Height adjustment of the saw arm easily via handwheel on the underside of the table
- Made in Italy
- Benefits
- Separate emergency stop on the pull handle
- Robust saw blade guard
- Lockable main switch
Applications
- Long cutting lengths, e.g. in kitchen construction or for flooring
- Workshops
- Construction
Technical data
- Voltage V 400
- Power kW 5.5
- Saw blade diameter mm 565
- Speed rpm 2800
- Maximum miter saw blade ° -45
- Max. cutting height saw arm + 45° mm 280x200
- Max. Sawing arm cutting height - 45° mm 470x200
- Max. cutting height saw blade inclination 0°/45° mm 200/135
- Max. cross-section mm 850x20
- Work table dimensions (LxW) mm 1970x1285
- Working height mm 800
- Extraction nozzle diameter mm 60
- Swivel angle adjustment saw arm ° -45 / +45
- Weight kg 362.00
- Dimensions (LxWxH) mm 1700x1250x1190
Scope of delivery
- Saw blade dia. 400x3.8x30 mm with carbide teeth 60T
- Dutch manual, markings, CE mark, and CE certificate in accordance with Machinery Directive 2006/42/CE and EMC Directive 2014/30/CE
