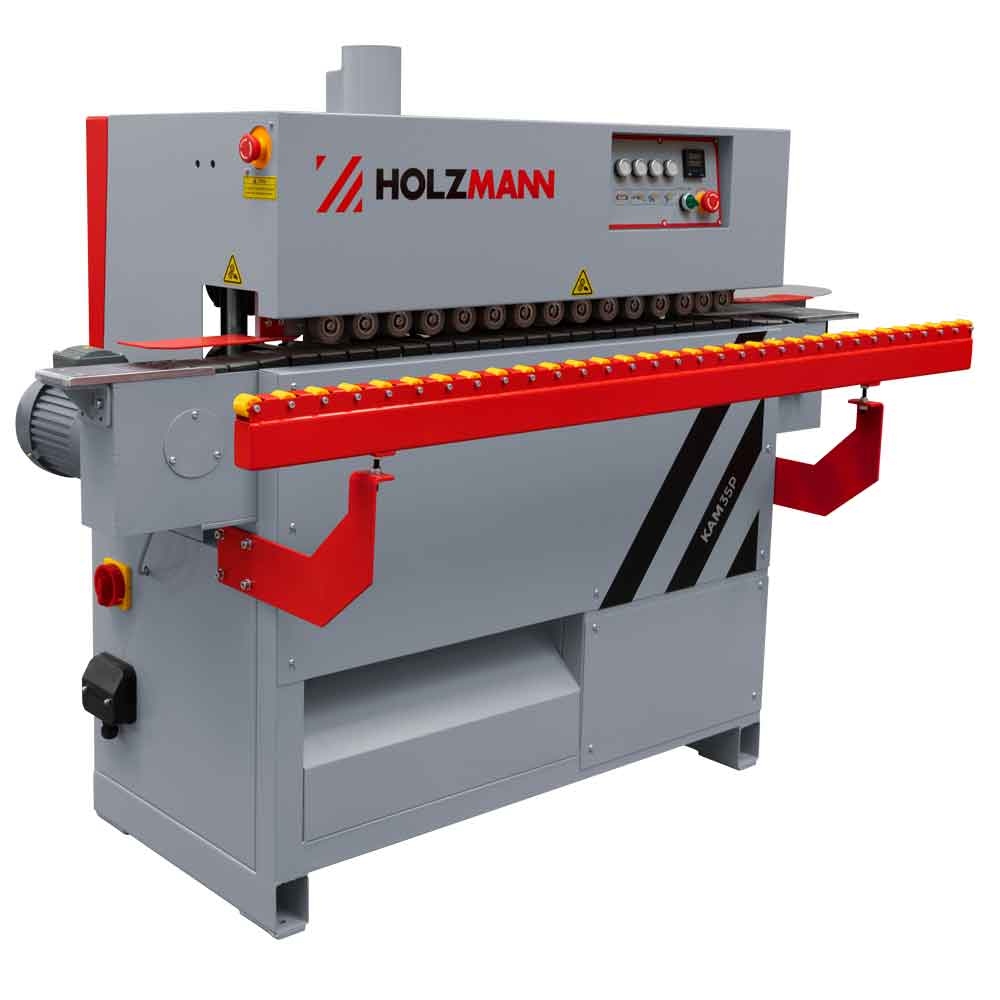

Holzmann KAM35P_400V Edge Banding Machine
Special Features
- Single-sided automatic edge banding machine with:
- Glue tank with temperature control and direct glue dispensing for straight workpieces.

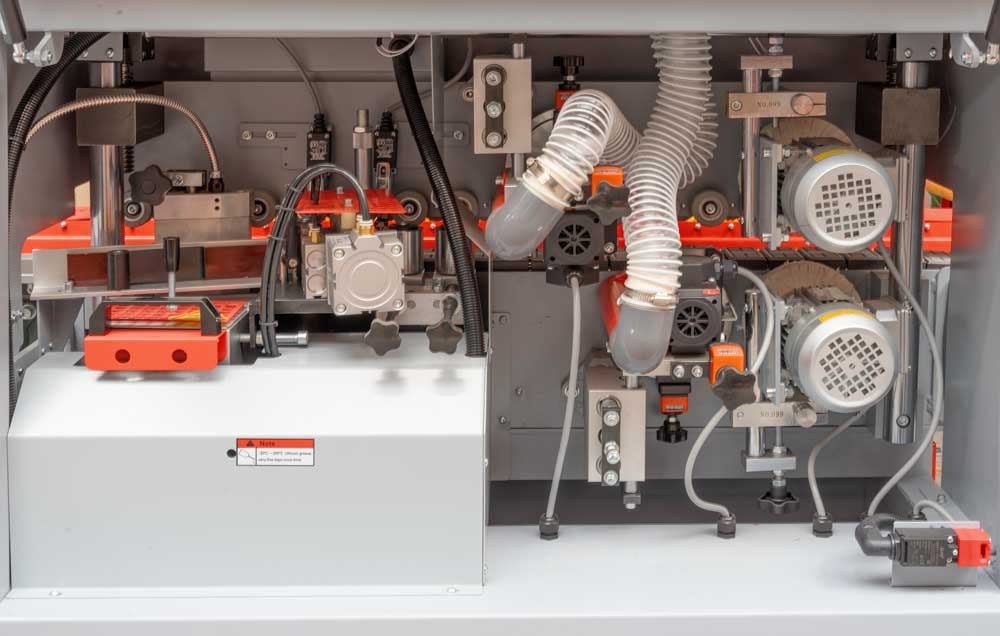

- Double milling unit for milling off edge protrusions on the workpiece (top/bottom), 0.37 kW motor per unit and 1380 min-1
- Polishing unit (top/bottom) 0.18 kW per unit and 1400 min-1
- Automatic and constant board feed thanks to chain drive and powerful motor.
- The glue temperature can be adjusted on the display.
- Edge banding support table
Technical Data
- Motor power S1 in W 3390
- Voltage 400 V / 50 Hz
- Feed speed 7 m/min
- Table height in mm 850
- Extraction port in mm 100
- Installation dimensions in mm 2060 x 1050 x 1320
- Minimum workpiece length in mm 70
- Minimum workpiece width in mm 80
- Minimum workpiece thickness in mm 12
- Maximum workpiece thickness in mm 43
- Edge width in mm 15 - 48
- Edge thickness in mm 0.4 - 2
- Operating pressure in bar 6
- Sound power level in dB(A) 78
- Gross weight in kg 430
- Net weight in kg 366
- Packaging width in mm 645
- Packaging length in mm 1,680
- Packaging height in mm 1,270
Scope of delivery
- 2x polishing discs (ø150mm)
- 2x milling tool for double milling unit, hand milling cutter for edge banding.
