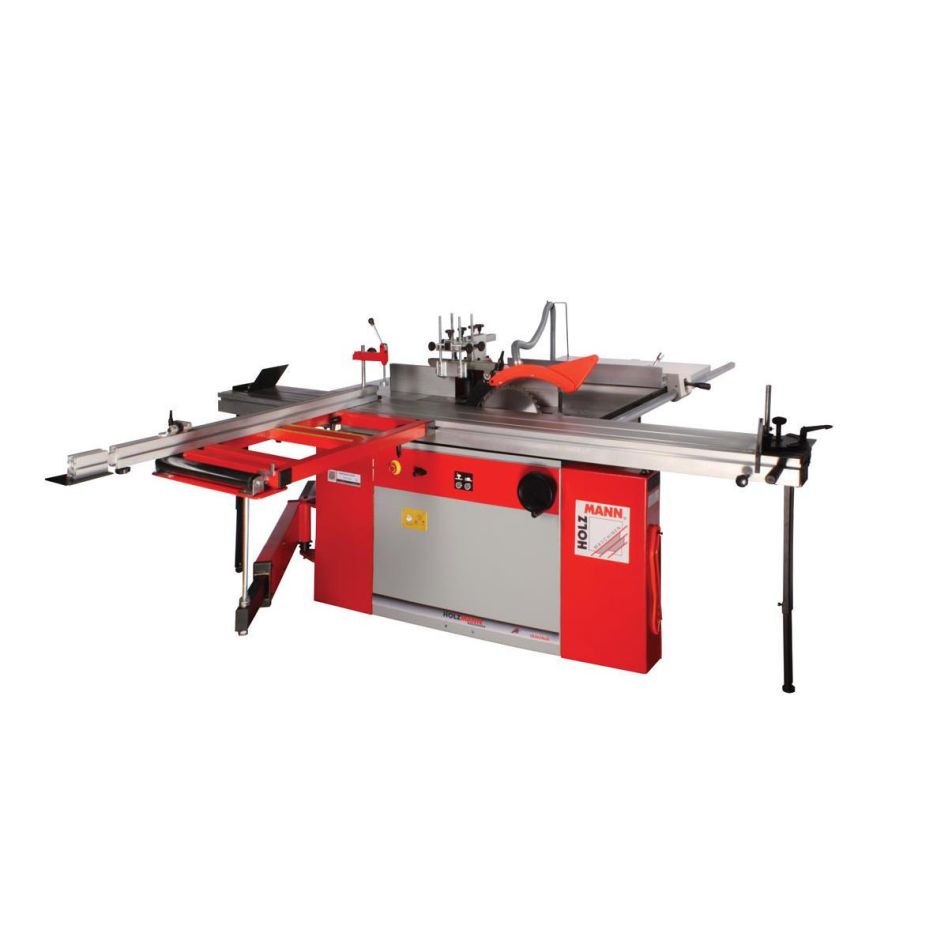

Holzmann KF315VF2600_230V Panel Saw/Router
Description
- The KF 315VF-2600 impresses with its clean, high-quality finish. Large panels can be processed without difficulty.
- Robust and smooth-running parallel fence with quick release, guided on the fence bar
- Swiveling and height-adjustable circular saw blade with scoring saw
- Cast iron table with rear table extension and right side with support leg
- Extendable fence with folding fence
- Support roller on the boom simplifies workpiece positioning
- Extra-large cutting width to the right of the saw blade up to 1330 mm
- Equipped with a high-quality two-piece scoring saw blade
- High-quality guard with hold-down system and fine adjustment
- Standard 4 milling speeds
- Electronic speed display via LEDs
- max. milling diameter 200 mm
- Large, removable handwheel for adjusting the unit
Technical specifications
- Motor power S1: 3000 / 2800
- Voltage: 230V
- Table dimensions in mm: 860x890
- Table height in mm: 850
- Table extension in mm: 800x440 / 500x450
- Bullet table dimensions in mm: 2600x270
- Support table in mm: 750x590
- Suction connection in mm: 2x100
- Milling spindle diameter in mm: 30
- Milling spindle speed in rpm: 1800/3000/6000/9000
- Spindle stroke in mm: 100
- max. clamping height in mm: 100
- Table opening in mm: 190
- Maximum retractable tool diameter in mm: 180
- max. tool diameter over table in mm: 200
- Milling stop in mm: 360x120
- max. cutting height 90° in mm: 100
- max. cutting height 45° in mm: 80
- max. Trimming length in mm: 2700
- Cutting width at the parallel fence in mm: 1330
- Saw blade (/bore) in mm: 315
- Saw blade speed in min-1: 4500
- Scoring saw blade in mm: Ø100
- Scoring saw blade speed in min-1: 8500
Scope of delivery
- Scoring saw
- 1x HM circular saw blade Ø315mm 40 teeth
- 1x HM scoring saw blade Ø100mm 24 teeth
- Miter stop
- Parallel stop
- Telescopic stop
Please note! For this item, additional handling fees may be charged by the carrier on top of the already calculated shipping costs. The amount may vary by region or country. You can request the handling fees in advance via our sales department. Please provide a forklift for delivery.
