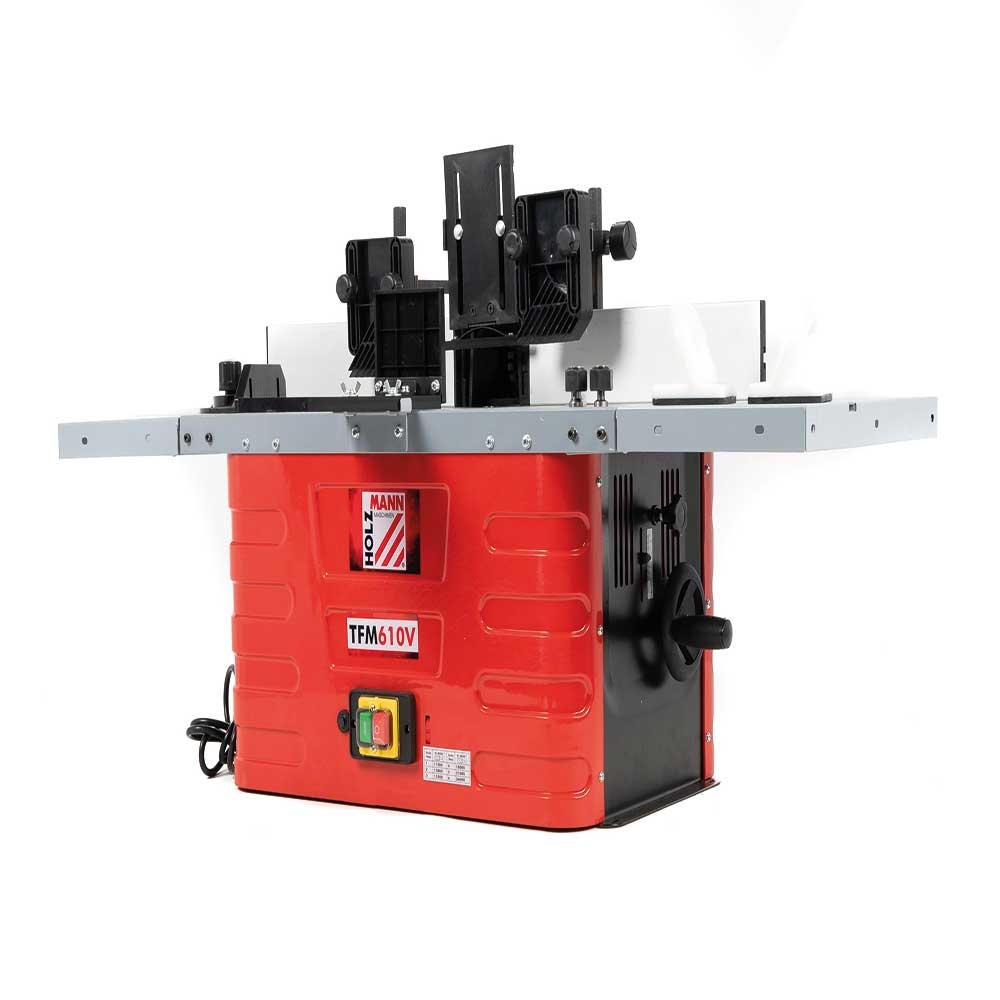

Holzmann TFM610V_230V Table Router
Special features
- DIY enthusiasts appreciate the compact and stable design of the HOLZMANN TFM610V_230V.
- Fits on any workbench and is ready for use within seconds.
- Thanks to the included collets, all common milling cutters can be used.
Strong Points
- Speed range adjustable from 11,500-24,000 min -1 (6 levels)
- Adjustable spindle height from 0-40 mm (incl. display)
- Powerful motor
- Versatile standard accessories included
Technical data
- Motor power S1 in W 1500
- Voltage 230V / 50Hz
- Cable length 2 m
- Table size in mm 610x360
- Table height in mm 310
- Table extension in mm 210x360
- Installation dimensions in mm 1035x690x555
- Extraction connection in mm Ø 100
- Milling spindle speed in min-1 11500-24000
- Spindle stroke in mm 0-40
- Table opening in mm 32/47/55
- Max. tool diameter retractable in mm 50
- Max. tool diameter above table in mm 50
- Sound power level in dB(A) 89
- Sound pressure level in dB(A) 102
- Gross weight in kg 23
- Net weight in kg 21
- Packaging width in mm 535
- Packaging length in mm 670
- Packaging height in mm 390
Scope of delivery
- Collets for ø6, ø8 and ø12mm
- 2 x table extensions (both sides)
- Angle stop
- Aluminum milling stop
- Sliding block
