Holzstar TF170E Table Milling Machine Spindle 1.1 kW 400 Volts
Special features
- Milling machine / spindle milling machine with aluminium carriage and fixed milling spindle
- Aluminum carriage for easy workpiece feeding

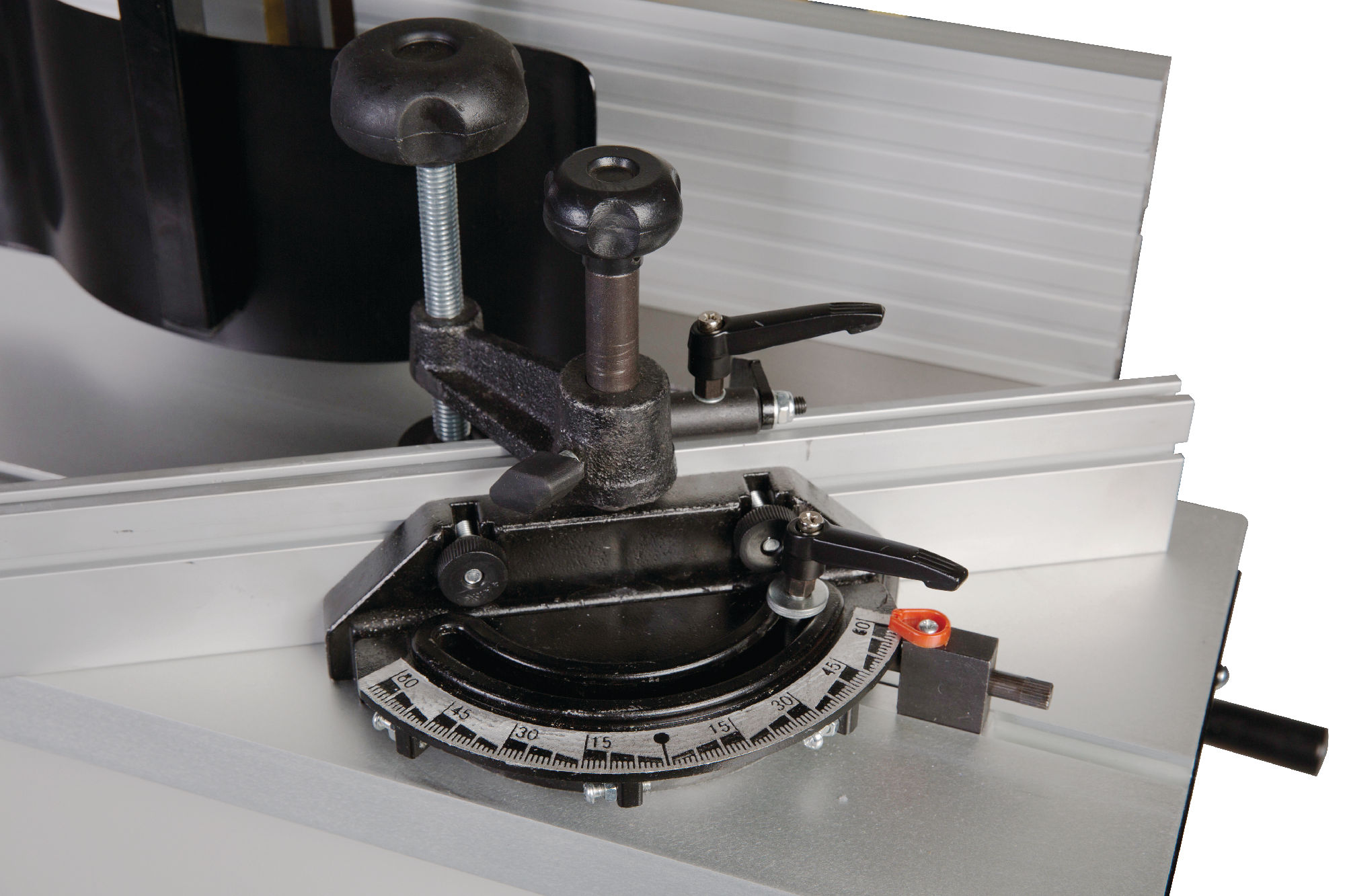

- Milling fence with finely adjustable aluminium stops
- Quick and easy speed change thanks to the multiple V-belt / belt
- Heavy cast iron table with large working surface
- Cast iron milling spindle
- The milling spindle pivots backwards for optimal use of the feed device, maximum safety, and a clean milled finish
- Pressure clamp for precise and safe workpiece guidance
Applications
- Manufacture of crown mouldings, moldings, profiles, counter-profiles in all types of wood
- For the demanding DIYer, semi-professional, repairer, designer
Technical data
- Voltage V 400
- Power kW 1.1
- Spindle diameter mm 30
- Spindle inclination ° +5 ‖45°
- Spindle length mm 80
- Working height mm 870
- Max. tool diameter mm 160
- Speed rpm 1,400 / 4,000 / 6,000 / 9,000
- Extraction nozzle mm 100
- Weight kg 96.00
- Dimensions (lxwxh) mm 1.000x900x1.140
Scope of delivery
- Corner stop
- Press clamp
- Milling guard
- Dutch manual
- On pallet
