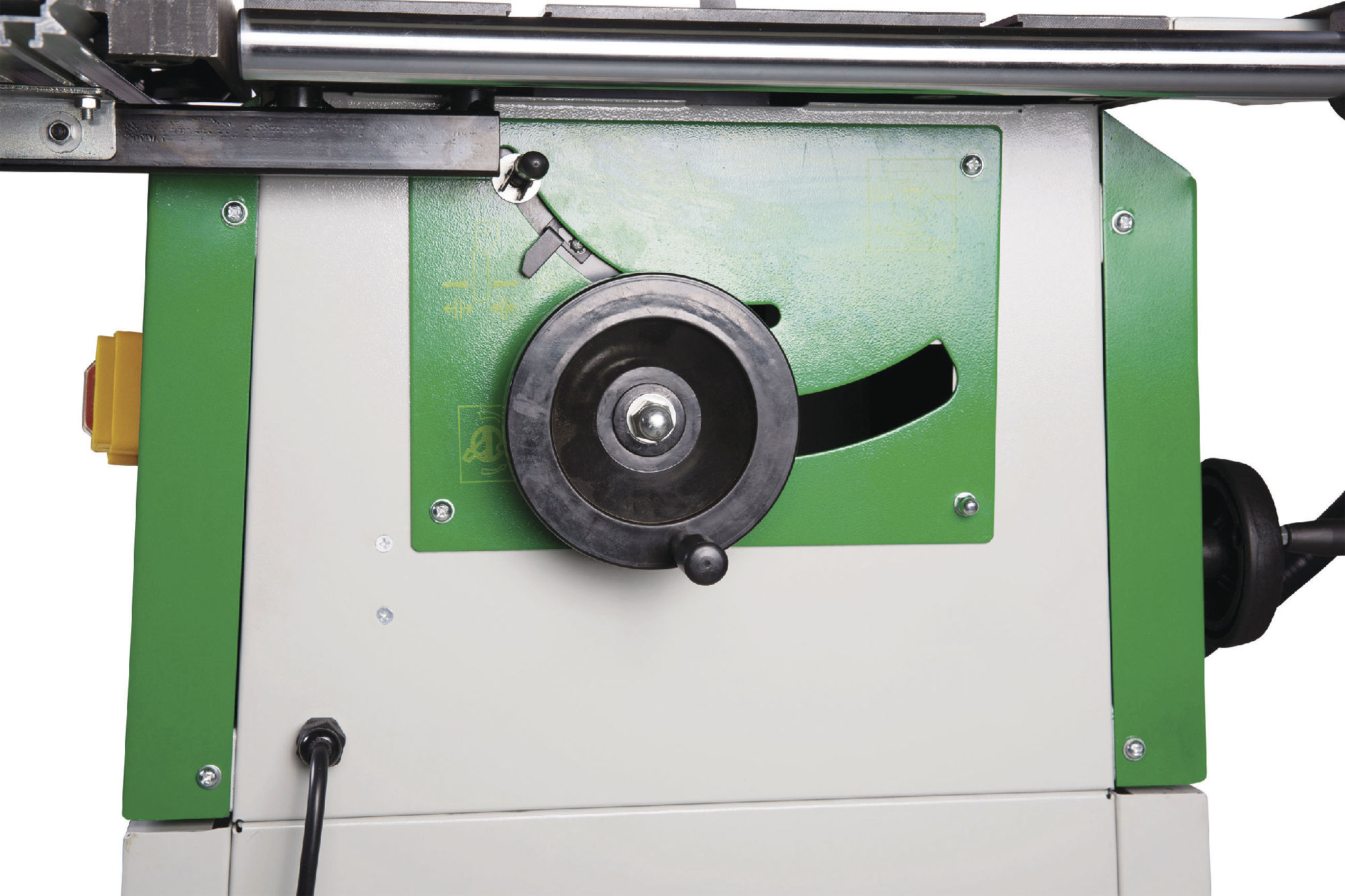

Holzstar TKS254E Table Saw 400V
Universal table saw for professionals and the demanding DIYer.
Special Features
- Robust and precise design with premium carriage
- Heavy-duty cast iron table for low-vibration operation and precise, straight cuts
- Ball-bearing carriage with bolted-on armrest
- Telescopic fence with magnification lens for precise readings up to 228 cm
- Angle stop adjustable from -45 to +45°
- Saw blade tiltable from 0 to 45° via rotary knob on rack
- Saw blade height adjustable with handwheel
- Aluminum parallel fence with eccentric tensioner
- Powerful 2.5kW motor for both sheet material and hardwood suitable
- Large central extraction nozzle at the bottom of ø 100 mm and at the top with a 38 mm extraction nozzle
- Saw blade guard
Technical data
- Voltage V400
- Power kW 1.5
- Motor type electric
- Maximum height mm 58/80
- Max. cutting width stop mm 680
- Saw blade ø mm 254
- Speed rpm 4000
- Maximum miter saw blade ° 90 - 45
- Dimensions Work table (LxW)mm 635 x 420
- Working height mm 850
- Extraction diameter mm 30/100
- Weight kg 107.00
- Dimensions (LxWxH)mm 1,430 x 1,000 x 1,030
Scope of delivery
- Roller carriage with extension
- Clamping slide
- Parallel stop
- Table extension with foot support
- Carbide saw blade Ø 254mm Z40
