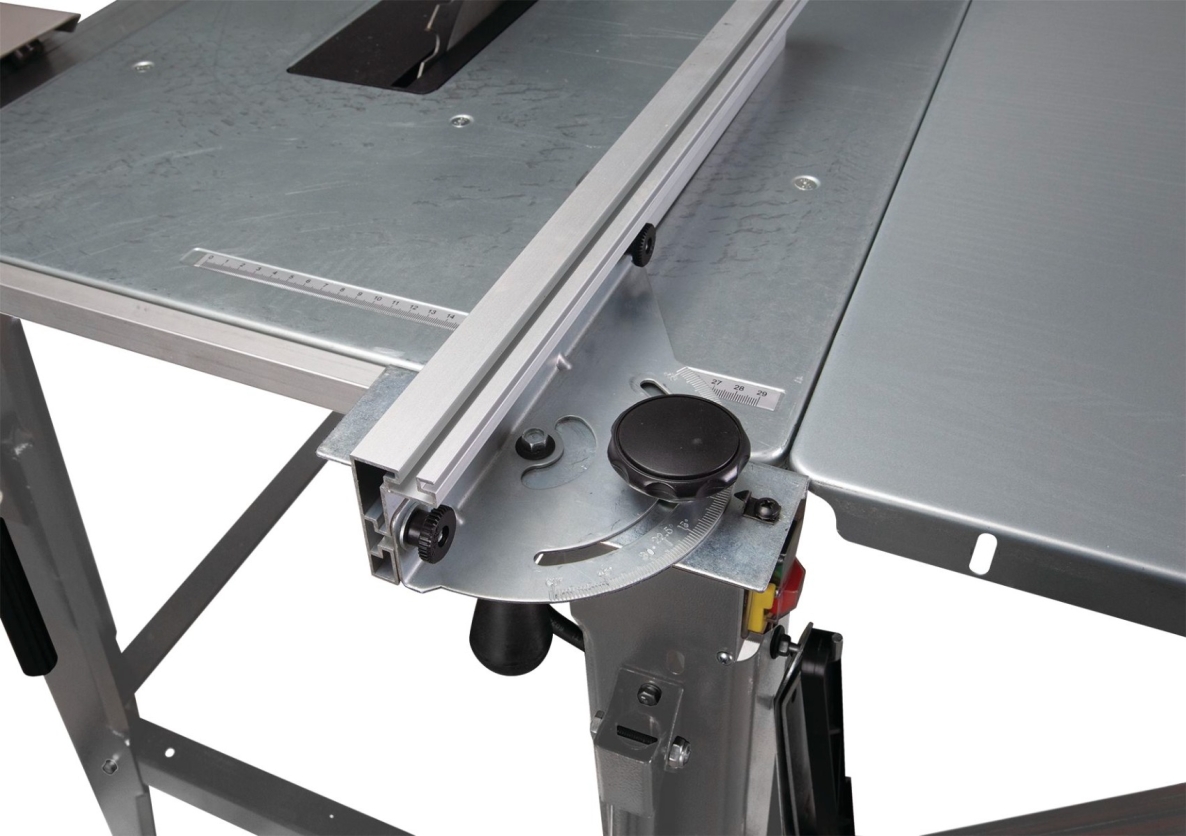

Holzstar TKS316E230V Table Saw 230V
Budget-friendly mobile table saw for general use.
Special Features
- Easy to move thanks to base with integrated transport wheels and handles
- Large and stable galvanized steel frame
- Saw blade tilt adjustable 90°- 45° without tools
- Saw blade height adjustable with handwheel and scale indicator
- Aluminum feed table with stop and eccentric clamp
- Sliding carriage with ball bearings adjustable from -45° to +45° with quick-release lever
- Saw blade guard with extraction hose
Technical Data
- Voltage V230
- Power kW2.2
- Motor type electric
- Saw blade diameter mm315
- Speed rpm2800
- Maximum saw blade bevel angle°90 - 45
- Dimensions Work table (LxW)mm 800 x 550
- Working heightmm 850
- Ø extraction (top)mm 100
- Maximum cutting depthmm 83/60
- Weightkg 50.00
- Dimensions (LxWxH)mm 1,600x600x1,050
Scope of delivery
- Base
- Table extensions longitudinal/transverse
- Parallel stop
- Carbide saw blade Ø 315 mm T28
