Itamac Panthera S9 table saw 230V 254mm 4HP 30" table + extra saw blade from Sistemi Klein
Special features
- HW110SE table saws have proven for years that they are one of the highest quality table saws worldwide, with over 30,000 satisfied customers.
- The table saws feature state-of-the-art design and engineering, precision-ground cast iron work tables, heavy-duty dovetail housing, and a powerful poly-belt drive system.
- Radiant appearance and finish, extraordinary accuracy and stability, smooth operation, and user-friendly features.
- This series includes a classic 4HP (S9) left-tilting table saw with an advanced splitting wedge changing system.
- All these models are designed for use with the Dado system (adjustable groove saw blades (e.g. for cutting grooves)
Features
- Precision-ground cast iron work tables
- Powerful 3KW 4HP TEFC induction motor
- Heavy-duty dovetail suspension SE50XL
- Industrial powerful Poly-belt belt drive

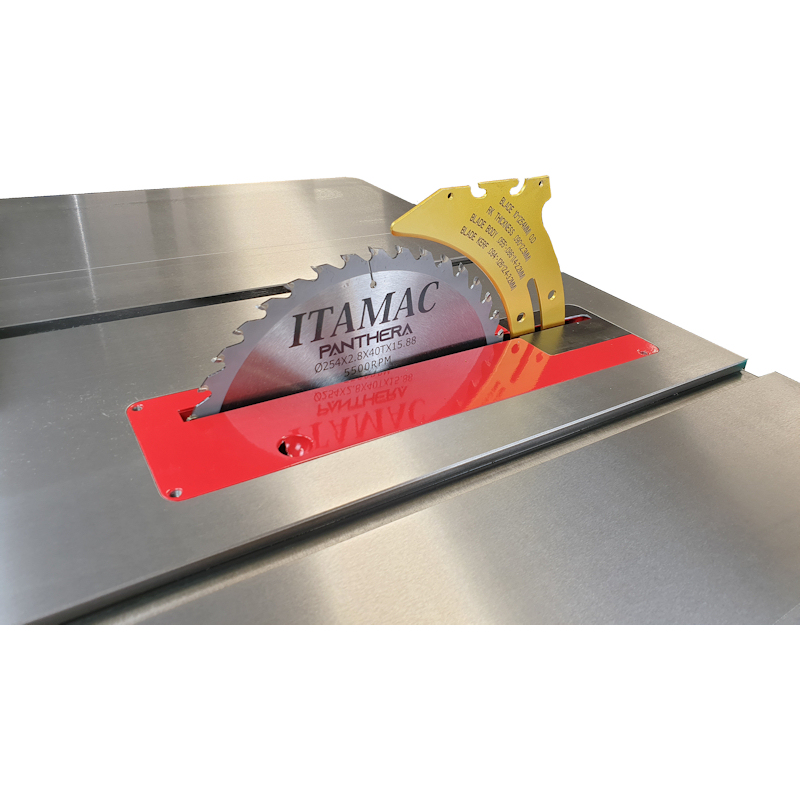

- Quick-system removable splitting wedge

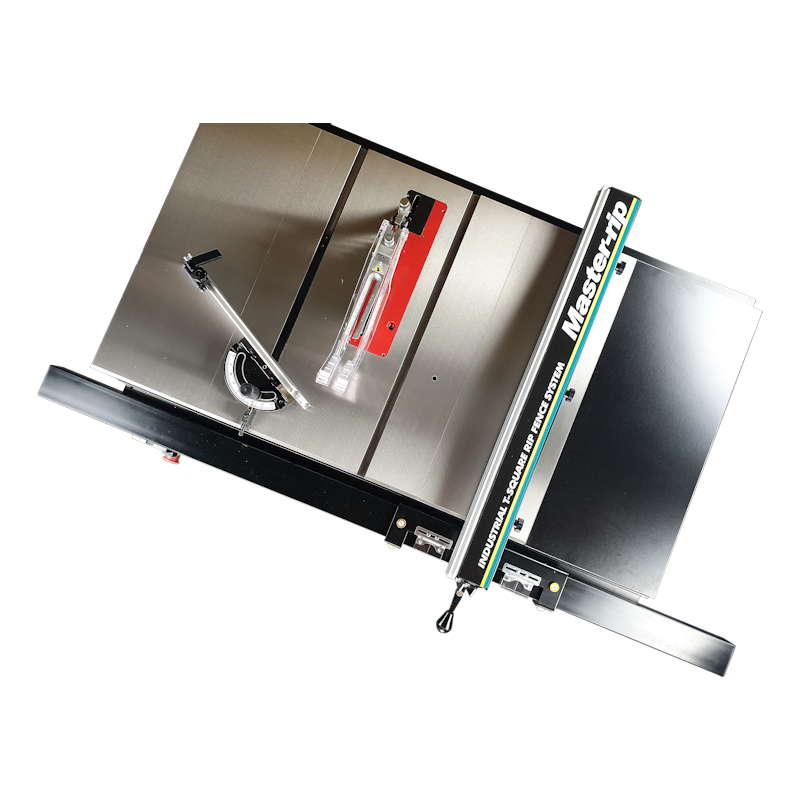

- Deluxe width guide “Master-rip Industrial T-square” for
- accuracy and reliability
- Oversized large chrome handwheels with locking mechanism
- Magnetic safety switch with thermal protection and overload protection and emergency stop quick-turn.

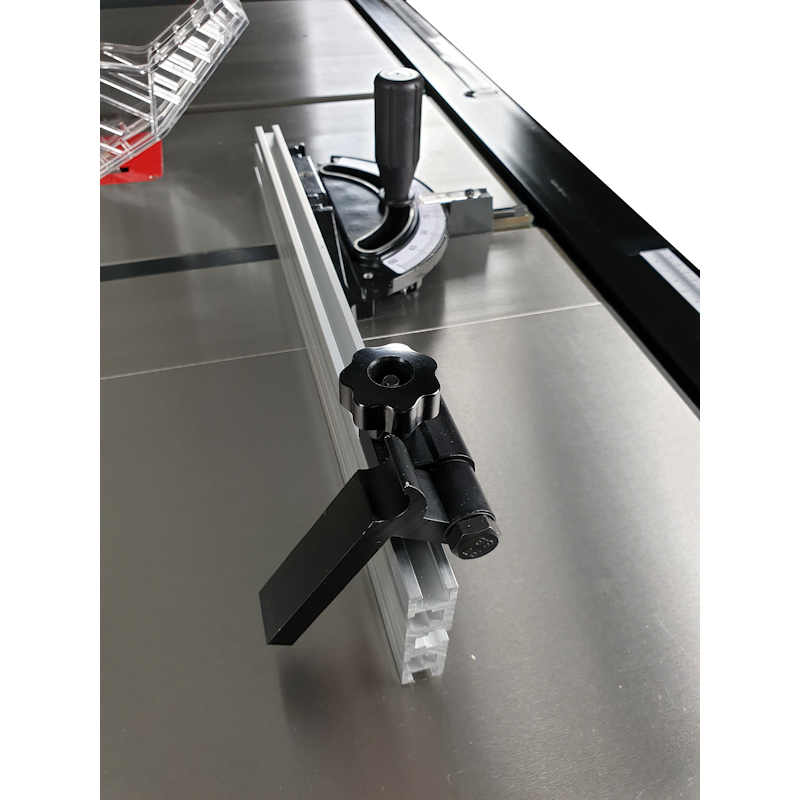

- Mitre guide with high stop and flip stop
- Precision T-slots left and right along the saw blade
- Standard insert plate and dado insert plate with height adjustment
- Prepared for dado mount
Technical data
- Table surface 508x686mm
- Saw blade diameter 254x15.875x2.8mm 40T
- Motor TEFC 3kw - 4HP induction motor
- Speed 3550RPM
- Miter left 45°
- Max. cutting depth at 0° 80mm
- Max. cutting depth at 45° 55mm
- Max. cutting width (blade right) 1270mm
- Max. cutting width (blade left) 305mm
- Dado diameter 203x15.875mm(optional)
- Dado max. width 20.6mm
- Arbor hole 15.875mm + 30mm
- T slots (2) 19.05*9.5mm

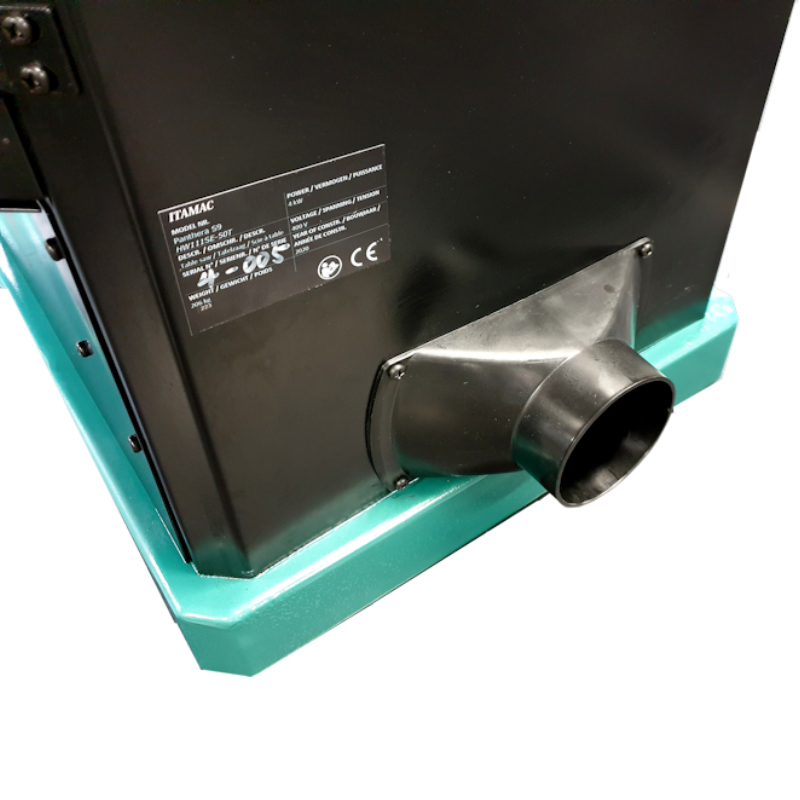

- Dust extraction diameter 100mm
- Electromagnetic switch + emergency stop with overload protection
- Work table height 875mm
- Work table surface 1321x686mm
- Machine weight 206 kg
- “BOW” Feather PRO pressure springs that increase control and reduce kickback
Standard included
- Saw blade
- Deluxe width guide
- Miter guide
- “BOW” Feather PRO pressure spring that increases control and reduces kickback
- Extra saw blade from Systemi Klein 60T
