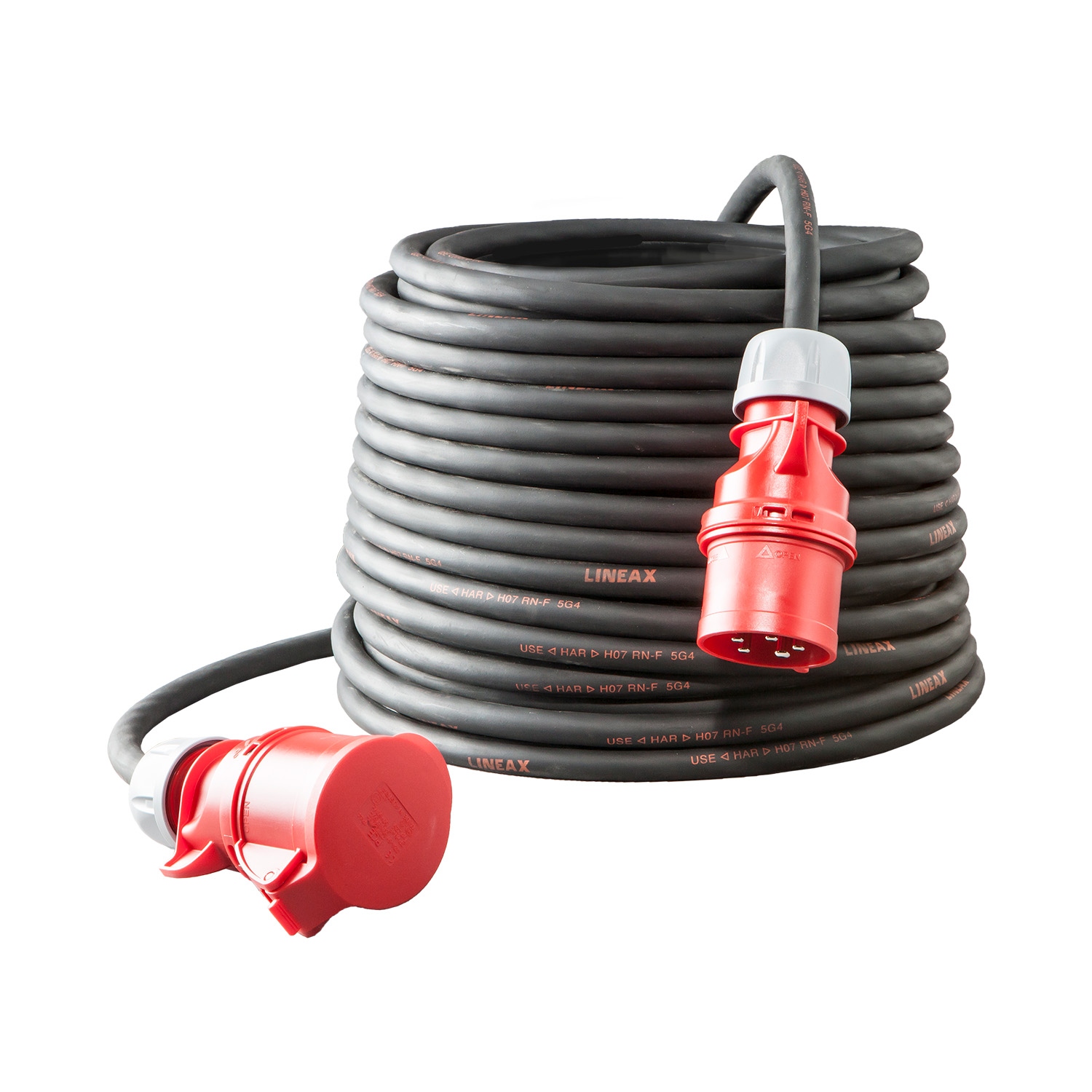

Keraf H07RN-F 5G2.5 Extension Cable 25 m CEE 16/5/400
Special features
- Top-quality extension cable with 5-pole 16A 400V CEE connector
- Optional with printing or colored cable
Technical data
- Euro fire class according to EN 13501-6: Eca
- Outer diameter: approx. 29.1 mm
- With cord switch: No
- Oil-resistant according to EN 60811-404: Yes
- Protection degree (IP): IP44
- With earth conductor: Yes
- Silicated cable: No
- Sheath color: Black
- Frequency: 50 - 60 Hz
- Nominal voltage: 400 - 400 V
- Nominal current: 16 A
- Temperature resistance: -25 - 55 °C
- Sheath material: Rubber
- Length: 25 m
- Nominal conductor cross-section: 2.5 mm²
- Number of cores: 5
- Connector system system-specific: No
- Connection 2: CEE coupling
- Connection 1: CEE plug
