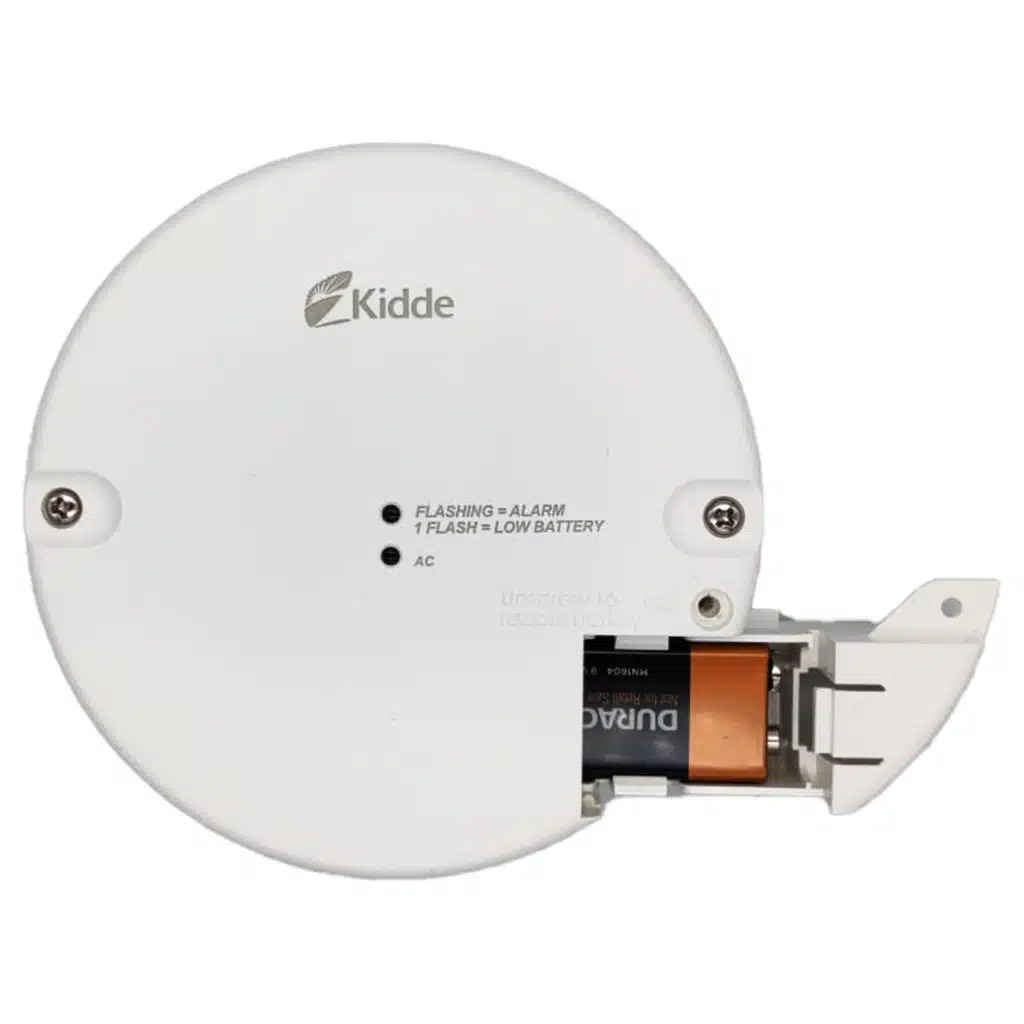

Firex 809-151216 RBUN Trigger and relay module 230V
Special features
- The Kidde RBUN relay module (809-151216) ensures that interconnected smoke, heat, and carbon monoxide detector(s) sound an alarm and that the relay is activated when an interconnected sprinkler flow switch is triggered.
- It can also be used as an interface with other auxiliary devices with an NO potential-free contact, such as manual fire alarms.
- The Kidde RBUN 230V relay module with potential-free contact for Kidde and Firex 230V detectors enables the control of external equipment such as a free-swinging door closer, among others.
Technical data
- Output relay contacts: Contact values: 230 V AC at 3 Amps: 24V DC @ 3Amp
- Sprinkler Interconnect: 9V DC output with return for connection to a potential-free auxiliary contact
- Temperature range: 0°C to 40°C
- Humidity range: 0% to 90% RH, non-condensing
Scope of delivery
- 1xTrigger and relay module
