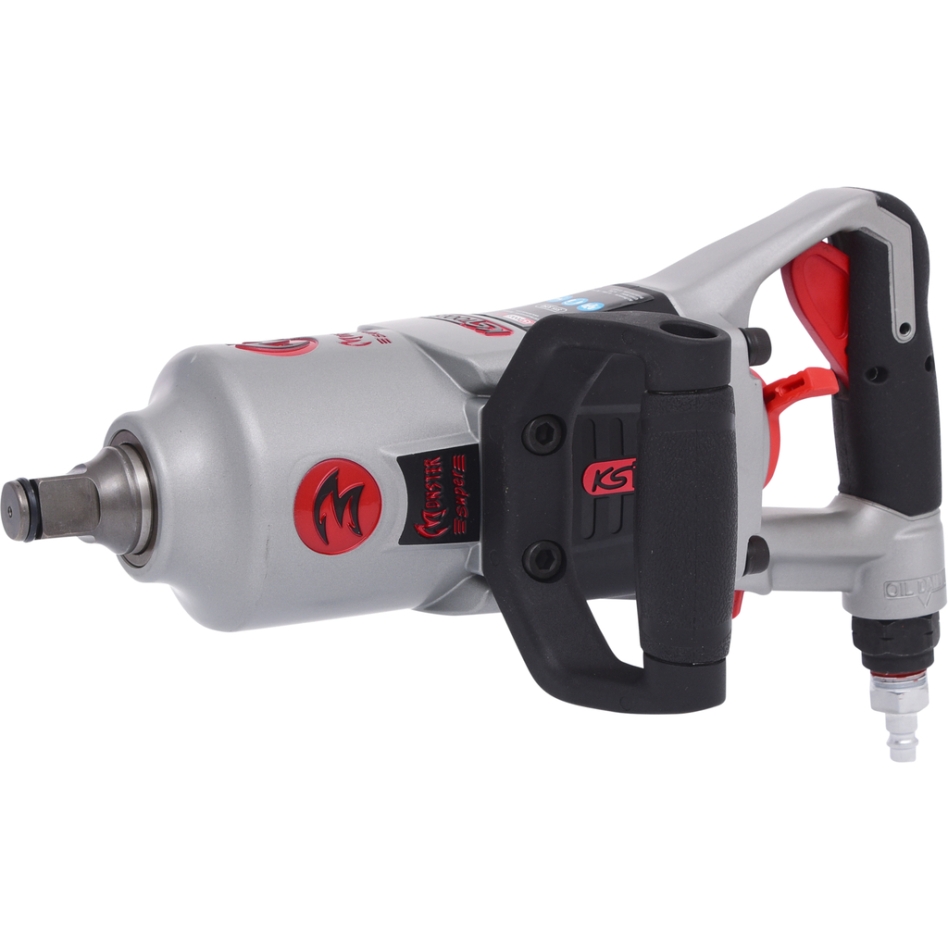

KS Tools 515.3250 3/4 superMONSTER powerful pneumatic impact wrench, 3405 Nm
Special features
- With non-slip soft-grip handle
- Air venting downwards through the handle
- Short anvil
- With 4-stage torque preselection for tightening and loosening
- Easy operation
- Low vibration
- Trigger integrated into handle
- Low noise level
- High-quality double-hammer impact mechanism
- With bore for pin locking
- Long service life
- Cold-insulated handle
- Includes 1/2" coupling plug
- Ultralight aluminium housing
Technical data
- Material1: aluminium
- Total length L in mm: 350.0
- Sound pressure level (dbA): 104.5
- Noise level (dbA): 115.5
- Max. loosening torque: 3405 Nm
- Vibration acceleration: < 12.57
- Vibration acceleration measurement uncertainty: 1.73
- Air consumption in l/min: 283
- Idle speed in rpm: 6200
- Square drive: 3/4
- Width B: 230
- Operating mode: Pneumatic
- Working pressure in bar: max. 6.3 bar (90 psi)
- Rock-up in inch: 3/4
- Package contents: 1
- Max. tightening torque4: 4 = 3064 Nm
- Max. tightening torque3: 3 = 2145 Nm
- Max. tightening torque2: 2 = 1523 Nm
- Max. Right-hand drag torque: 1 = 919 Nm
- Min. hose diameter: 3/4" - 19 mm
- Max. screw size: M 38
- Thread connection: 1/2"PT
- Handle: Non-slip soft-grip handle
- Weight in g: 6700
