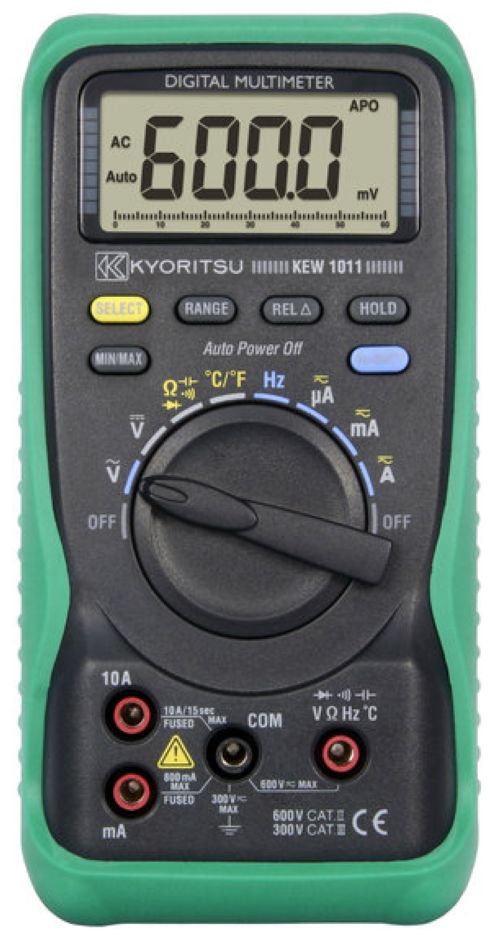

Kyoritsu 010110001A 1011 Digital multimeter with temperature measurement
The Kyoritsu 1011 is a simple digital multimeter. This multimeter includes the most common functions, such as AC/DC voltage and current, resistance, continuity, frequency, and even duty cycle. Furthermore, the meter features temperature measurement, MIN/MAX, and REL functions.
Thanks to the thick rubber holster, the meter is suitable for harsh environments, and its compact housing makes it easy to carry. Additionally, the meter features user-friendly controls.
Special features
- Automatic and manual range selection
- AC/DC voltage measurement up to 600V
- AC/DC current measurement up to 10A
- Resistance measurement up to 60M™ and continuity test
- Diode test / capacitance test / frequency / Duty Cycle
- Temperature measurement -50 ~ 300 °C (-58 ~ 572 °F)
- Automatic shutdown after 30 minutes
- Data Hold
- Display: 4000 counts
- Sturdy rubber holster
- Safety category: CAT III 300V
Technical data
- Protection degree (IP): Other
- Analog bar indication analog/logarithmic: No
- Capacity measurement: Yes
- Continuity test: Yes
- Explosion-tested version: No
- Harmonic analysis/power quality: No
- Indication/designation: Analog/digital
- Inductance measurement: No
- Interface: No
- IR interface: No
- Cable length measurement: No
- Cable symmetry test for 2-wire connections abE: No
- Minimum resolution capacitance: 0.0001 µF
- Minimum resolution frequency: 0.01 Hz
- Lowest resolution DC voltage: 0.1 mV
- Lowest resolution DC current: 0.1 µA
- Lowest resolution temperature: 0.1 °C
- Lowest resolution resistance: 0.1 Ohm
- Lowest resolution AC voltage: 1 mV
- Lowest resolution AC current: 0.1 µA
- Max. capacitance measurement range: 4000 Microfarads
- Max. frequency measurement range: 10000 Kilohertz
- Max. voltage measurement circuit category: 300 Volts
- Max. voltage range AC: 600 Volts
- Max. voltage range DC: 600 Volts
- Max. current measurement range AC: 10 Amperes
- Max. current measurement range DC: 10 Amperes
- Max. temperature measurement range: 300 Degrees Celsius
- Max. resistance measurement range: 60 Megaohms
- Maximum value memory: Yes
- Multiple indication: No
- Measurement range selection: Manual/automatic
- Measurement circuit category: CAT III
- Measurement value memory: No
- With decibel measurement (dB): No
- With conductivity measurement: No
- With screen illumination: No
- Duty cycle measurements: Yes
- Milliohm measurement with 4-wire technique (Kelvin connection): No
- Minimum value memory: Yes
- Moment value memory (Data Hold): Yes
- Nominal test voltage 10 V: No
- Nominal test voltage 100 V: No
- Nominal test voltage 1000 V: No
- Nominal test voltage 250 V: No
- Nominal test voltage 50 V: No
- Nominal test voltage 500 V: No
- Peak value memory: No
- Relative value measurement: Yes
- Efficiency measurement (TRMS): No
- Linear bar display scale: Yes
- Logarithmic bar display scale: No
- Temperature measurement: Yes
- RTD temperature measurement: No
- TC temperature measurement: Yes
- RPM measurement: No
- Power and energy measurement: No
- Resistance test/diode test: Yes
- Bumper: No
Standard accessories included
- Kyoritsu 1011 Digital multimeter
- Test leads (KTL04)
- K-type thermocouple (8216)
- 0.8A/600V Fuse (built-in)
- 10A/600V Fuse (built-in)
- 2 Batteries (R6P)
- Manual
