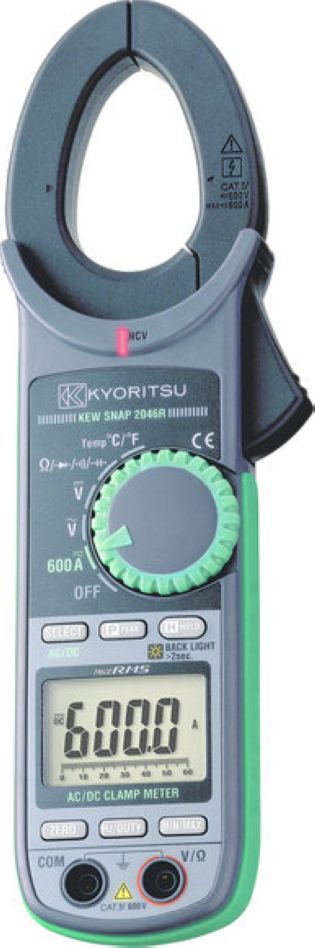

Kyoritsu 02046R000CDigital TRMS clamp meter, 600A AC/DC, CAT-IV
The Kyoritsu 2046R is a True RMS AC/DC clamp meter up to 600A with the highest safety class CAT IV 600V/CAT III 1000V.
Special features
- AC/DC current range 600A
- AC/DC voltage range 600V
- True RMS
- Resistance measurement and continuity test
- Frequency measurement and diode check
- Capacity measurement
- Temperature measurement: -50°C ~ 300°C with optional 8216 temperature probe
- Contactless voltage detection
- Comfortable grip
- MIN/MAX function
- Data Hold and Peak Hold
- Backlight
- Clamp meter diameter 33 mm
- Safety specification CAT IV 600V
Technical data
- Indication/display: Digital
- Analog bar display: Yes
- Multiple indication: No
- With screen illumination: Yes
- Measuring range selection: Manual/automatic
- Current measurement range/DC: Min: 0, Max: 600
- Current measurement range/AC: Min: 0, Max: 600
- Efficiency measurement (TRMS): Yes
- Voltage measurement/AC: Yes
- Voltage measurement/DC: Yes
- Resistance measurement range: Yes
- Temperature measurement: Yes
- Capacity measurement: Yes
- Frequency measurement: Yes
- Power measurement: No
- Leakage current measurement: No
- First harmonic component measurement: No
- Measurement in cable with forward and return conductor: No
- Clamp jaw opening: 33 Millimeters
- Version as adapter for connecting to multimeter: No
- Interface: No
- Measurement circuit category: CAT IV
- Max. Voltage measurement circuit category: 600 Volts
- Continuity test: Yes
- Protection class (IP): Other
Supplied with:
- Kyoritsu 2046R TRMS AC/DC Clamp Meter
- Cord set
- Carrying case
- 2 AAA batteries
- English manual
