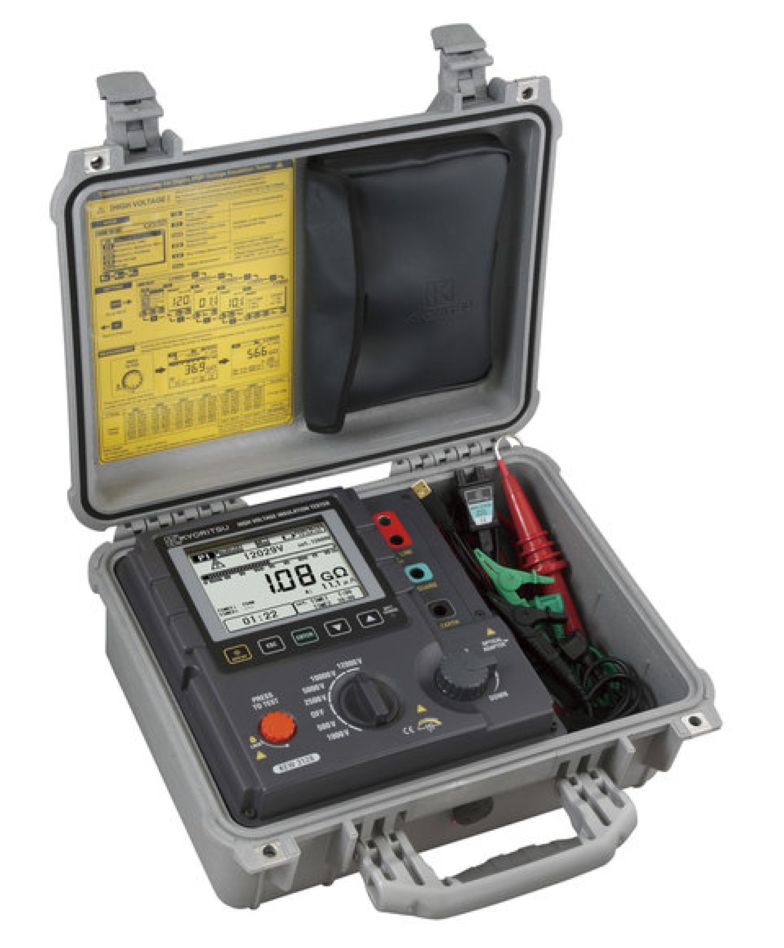

Kyoritsu 031280001B12kV Digital High-Voltage Insulation Resistance Meter
The Kyoritsu 3128 is a 12kV insulation resistance meter with test voltages of 500V, 1000V, 2500V, 5kV, 10kV, and 12kV. The meter can also measure the Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Dielectric Discharge (DD). Furthermore, the meter features a graphical display of insulation resistance and leakage current over time.
Special features
- 12kV insulation resistance measurement controlled by a microprocessor for diagnostic functions
- 6 test voltages: 500V, 1000V, 2500V, 5000V, 10kV, 12kV
- Polarization index (PI) measurement
- Dielectric Absorption Ratio (DAR) measurement
- Dielectric discharge (DD) measurement
- Capacity measurement of measured object up to 50µF
- Leakage current measurement of measured object up to 2.4mA
- Fine-tuning of voltage settings is possible in every range
- Graphical display of insulation resistance and leakage current over time
- Large illuminated display with bar chart
- Can be powered by internal battery or via the mains
- Automatic discharge after measurement
- Internal memory for 40,000 measurement points
- Readable with included PC software
- IP64
- Safety category CAT IV 600V
- Download the USB driver for the 3128 Insulation Resistance Meter here.
Technical data
- Indication/display: Digital
- Analog bar display: Yes
- Power supply: Battery
- Backlight LC indication: Yes
- Insulation resistance measurement range: Min: 0, Max: 35000000
- Nom. test voltage 100 V: No
- Nom. test voltage 250 V: No
- Nom. test voltage 500 V: Yes
- Nom. test voltage 1000 V: Yes
- Nom. test voltage 2500 V: Yes
- Nom. test voltage 5000 V: Yes
- Nom. test voltage adjustable: Yes
- Nom. Test voltage adjustable with slope function: Yes
- Low resistance measurement: No
- Voltage measurement: Yes
- Overvoltage protection test: No
- Measurement value memory: Yes
- External voltage detection in OFF state: No
- Moment value memory (Data Hold): Yes
- Interface: Yes
Standard included
- Kyoritsu 3128 12kV Insulation Resistance Meter
- Power cable (7170)
- Voltage probe (7226A)
- Voltage probe with alligator clip (7227A)
- Ground probe (7224A)
- Safety cord (7225A)
- Extension accessory (8029)
- CAT IV accessory (8255)
- USB adapter with software (8212)
- User manual
- Calibration certificate
