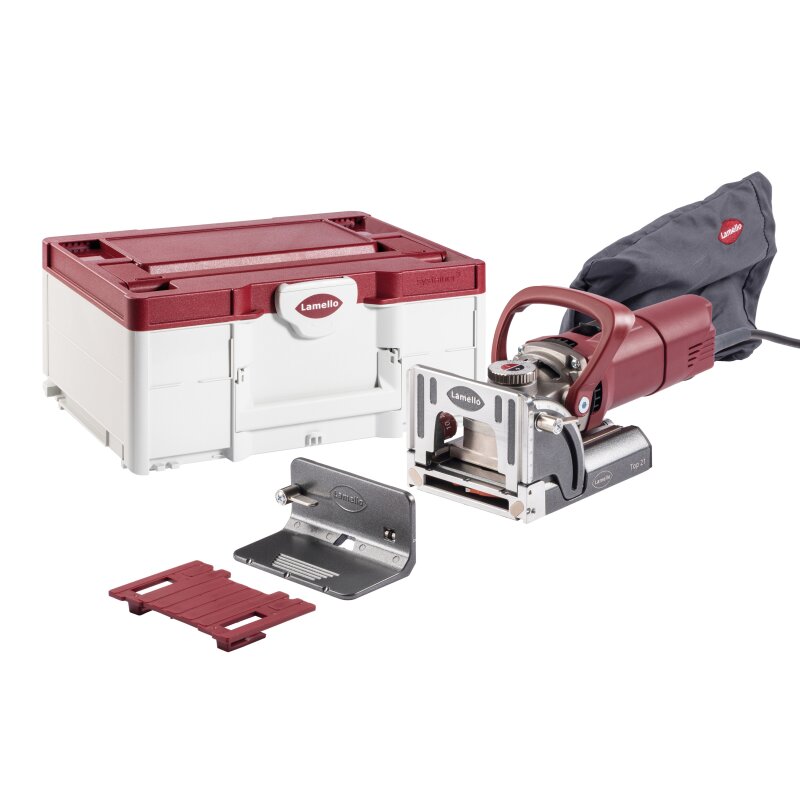

Lamello TOP 21 groove milling machine in Tanos systainer
Now a total of 2 years warranty on Lamello Top Machines(*)
(*) In addition to the Lamello factory warranty, you receive an extra 1 year TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 1 year extra toolplus warranty on power tools.

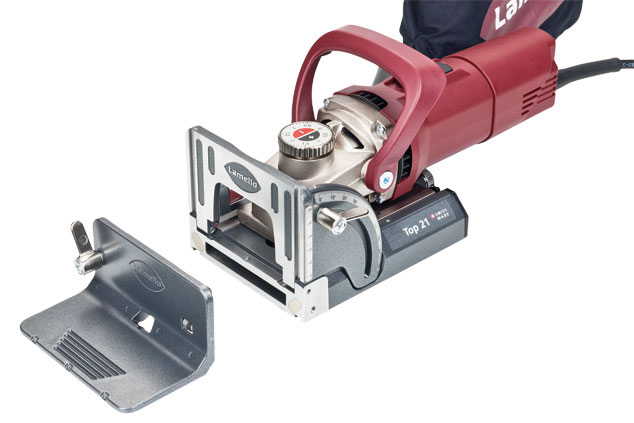

The original TOP21 groove milling machine with height adjustment for the professional. A Lamello with Swiss precision, reliability, durability, and many additional applications.
Special Features Top 21
- Height-adjustable cutter (SMS: Step Memory System):
- According to scale +/- 2 mm, increments of 0.1 mm (4 mm total)
- Setting the groove to the center of the workpiece thickness (from 8-24 mm material thickness) -
- Easy milling of joints with undercut or overcut
- Double groove, 2x4 mm for Clamex S
- Sawing of shadow joints, width 8-12 mm, adjustable increments of 0.1 mm
- Inpidial positioning of the milling groove
- New base plate:
- Base plate, right-angle stop, and adjustable stop form a straight line on both sides
- To position the machine even more efficiently on the workpiece.
- New right-angle stop that slides even more smoothly and with greater precision
- To quickly and easily set the position of the groove
- New 800Watt motor
- Strong electronically controlled motor, soft start, speed control, overload protection, safety switch
- Low-maintenance, for minimal maintenance and repair costs
- Precision milling tool and hub and 4 pre-cutters 5.
- Includes cotton dust bag and connection for dust extraction Ø36mm (Festool size)
Features
- Durable precision guide guarantees accurate parallel grooves for perfectly fitting workpieces.
- CNC Extremely precision machined stop surfaces - for accurate positioning on the workpiece
- Base plate, adjustable angle stop, and right-angle stop are of equal width on both sides
- For efficient positioning of the machine on the workpiece.
- Multifunctional right-angle stop - miter joints with panels of different thicknesses can be joined flush on the outside. - mounted on the base plate, thereby increasing the support surface - Angled stop with scale and fixed click at 22.5°, 45°, 67.5°, and 90°
- Central locking for quick cutter change
- Rotatable depth adjustment with 6 standard depths
- Extra-thin anti-slip protection for a good grip
- Soft start, speed control, overload protection, safety switch
- Maintenance-friendly, for minimal maintenance and repair costs
- Multifunctional, with the option of 14 additional applications
Technical data
- Power: 1050 W
- Mains voltage: 230 V
- Speed: 10,000 min-1
- Cutter: HW groove cutter, with hub, Ø 100 x 4 x 22 mm
- Teeth: Z2 + V4 with pre-cutters
- Max. milling depth: 20 mm
- Weight: 3.5 kg
Standard included:
- Complete machine
- HW groove cutter
- Dust extraction connection 23 mm
- Dust extraction connection 36 mm
- Cotton dust bag
- Right-angle stop
- Add-on plate 4 mm
- Tools set
- Manual

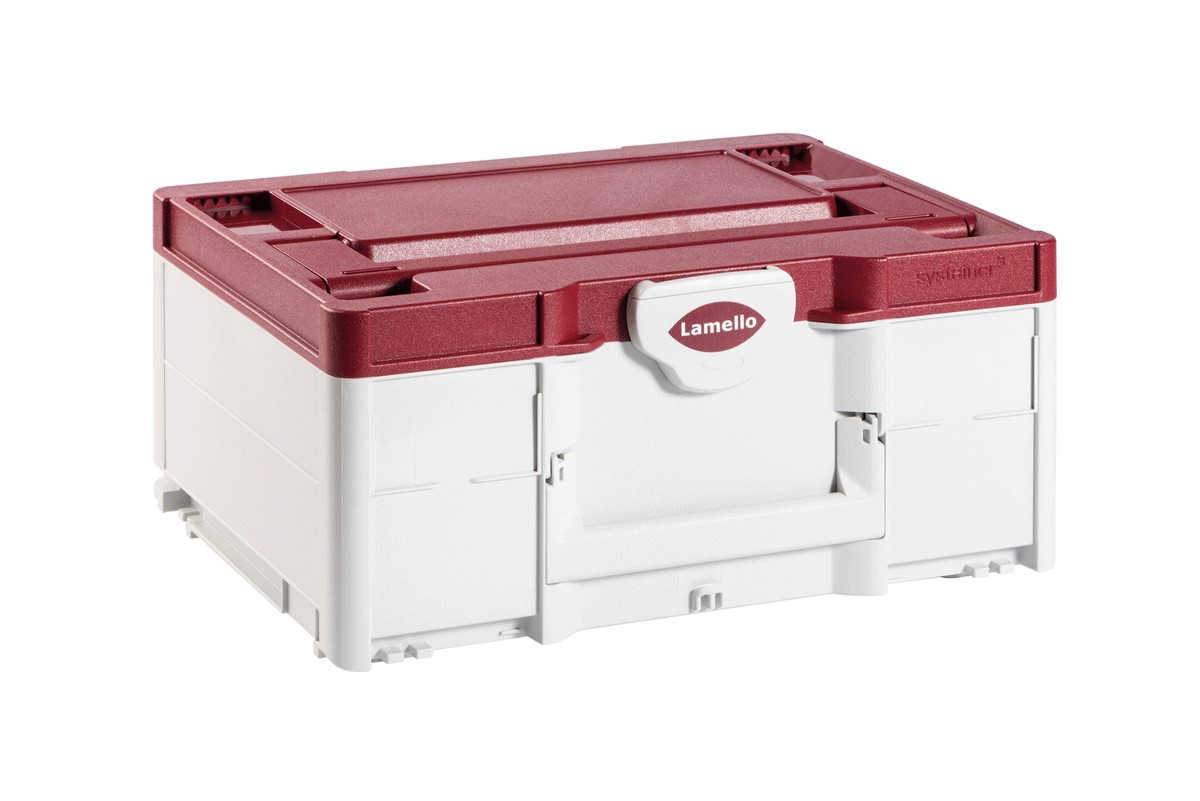

- Tanos systainer
*Toolnation, as the sole supplier of Lamello, extends the warranty from 1 to 2 years. We assume the warranty provisions after the expiration of the
