Lamello 145315 Clamex P-14 Flexus 80 pairs
Special features

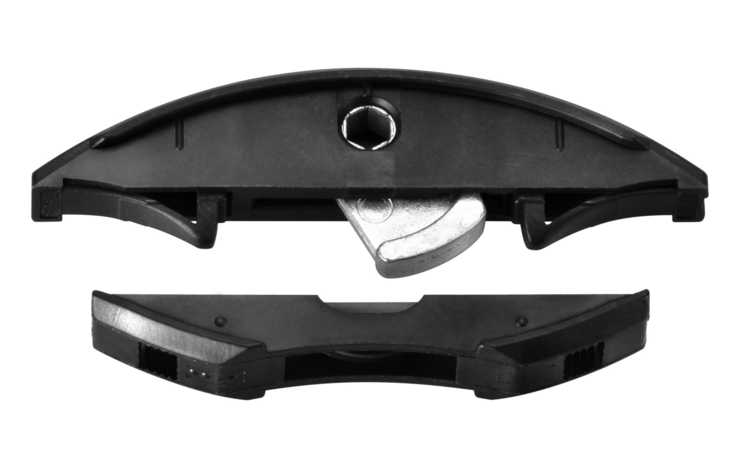

Clamex P-14 Flexus
- The Clamex P-14 Flexus is a detachable connector based on the P-System anchoring.
- The fitting is connected using a rotating handle.
- The Clamex P-14 Flexus thus offers all the advantages of the P-System, such as quick, tool-free assembly, good shear tolerance, torsional strength, and stackability.
- New to the Clamex P-14 Flexus are the flexible positioning pins.
- Thanks to the flexible positioning pins, no fixed elements protrude from the connector.
- Thanks to this innovation, workpieces can be mounted into existing elements at a later stage, which significantly simplifies the assembly sequence.
- The positioning pins serve as positioning and fastening elements for the workpieces.
- This holds fixed shelves in place while the workpieces are pulled together using an Allen key.
- Because the positioning pins are beveled on both sides, the workpiece can also be disassembled again.
- The positioning pins fit perfectly into the mating piece, allowing elements with a 90° miter to be easily assembled as well.
Applications
- Furniture: mezzanines, partition walls, inspection hatches, back panels, niche cabinets, furniture with 90° reinforcements (e.g. closed cube with miter) Furniture connections: corner connections, center wall connections, corner brackets Support material: chipboard, MDF, plywood, softwood, hardwood, etc.
Advantages and properties
- Flexible assembly sequence – Movable positioning pins allow for a free assembly sequence
- Easy alignment – Movable positioning pins align the workpiece and hold it in place
- Versatile mounting – Beveled and movable positioning pins allow for the insertion and removal of the workpiece from both sides
- Retrospective installation of fixed shelves – Fixed shelves or vertical dividers can be mounted in an already assembled cabinet
- Compatible with all Clamex P-connector halves without handle – P-14 / P-10 / P-10 Medius without handle
Technical data
- Dimensions (mm): 64 x 13.5 x 9.7 mm/52 x 7.5 x 9.7 mm

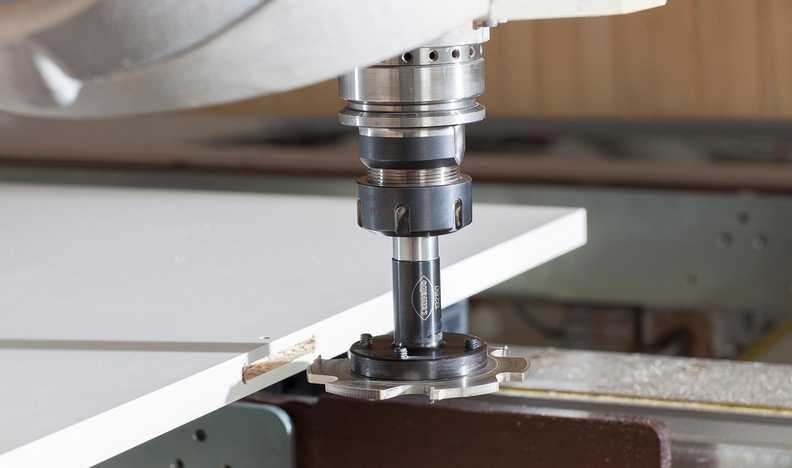

- Milling cutter: Ø 100.4 x 7 x 22 mm
- Plate material: Glass fiber reinforced plastic
- Handle material: Cast zinc
