Laserliner 036.733E SmartCross-Laser GX Cross-Line Laser Green
Special Features

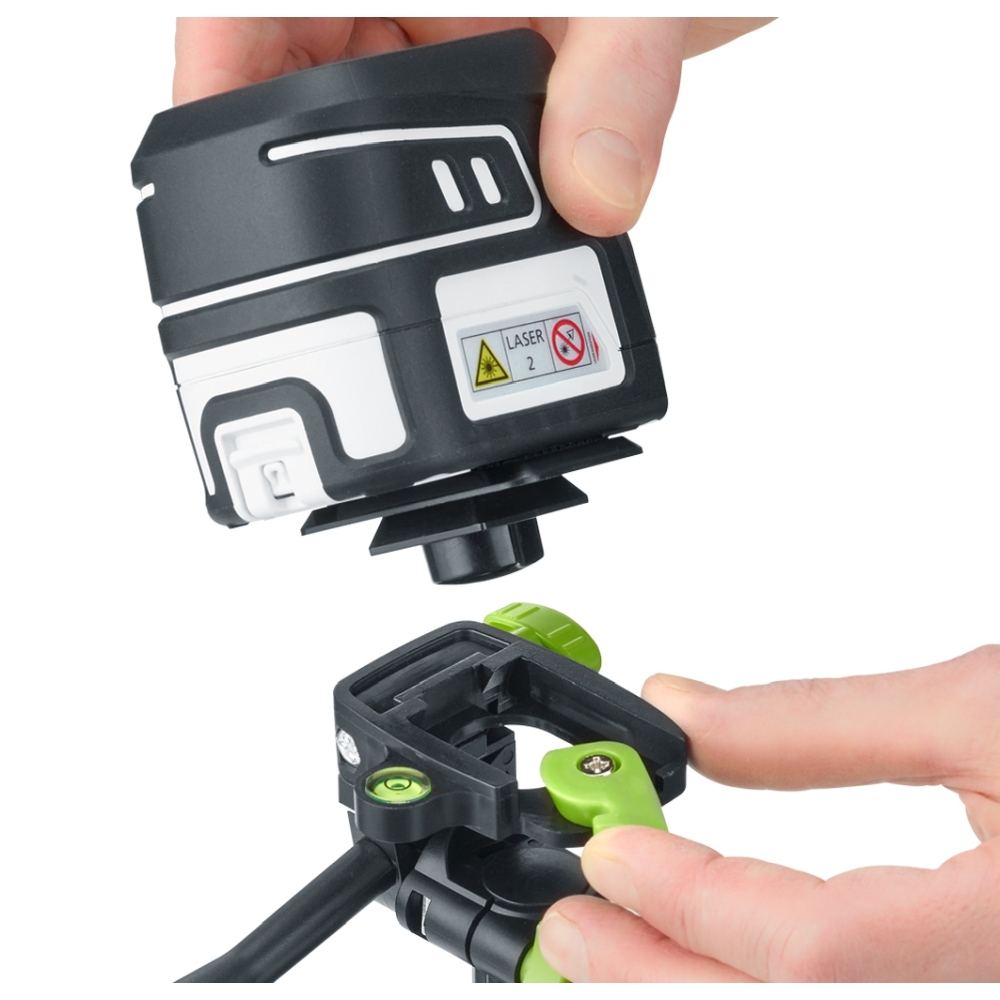

This cross-line laser projects a highly visible green laser cross for accurate horizontal and vertical alignment of objects. It also features a manual tilt function to easily create slopes and a ¼” screw thread for mounting on the included 45 cm compact tripod, which is ideal for ground-level applications. The tripod has multi-extension legs and a 3-way tripod head. With the integrated handheld receiver mode, the laser can also be used for outdoor applications and alignment work over long distances. The laser housing is largely made of recycled plastic, making a valuable contribution to sustainability.
- Durable construction: the majority of the housing is made of recycled plastic
- Accurate horizontal and vertical alignment of objects
- Easy slope alignment with manual tilt function
- Lightweight and robust 45 cm compact tripod, ideal for close-to-the-ground applications
- 3-way tripod head for tilting, lowering, and rotating the measuring device
- Integrated handheld receiver for outdoor applications
- Optical signals warn when the device moves outside the leveling range
- Pendulum lock for safe transport
- Time-saving automatic leveling
Technical data
- Horizontal/vertical leveling: yes
- Manual leveling function: yes
- Battery powered: yes
- Self-leveling range: ± 4°
- Accuracy: ± 0.3 mm / m
- Automatic leveling: yes
- Visibility (typical)*: 40 m
- Laser wavelength: 515 nm
- Laser class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Power supply: 2 x 1.5V LR6 (AA)
- Operating time: approx. 6 hours
- Operating conditions: -10°C ... 50°C, humidity max. 80% rH, non-condensing, working altitude max.: 4000 m above sea level
- Storage conditions: -20°C ... 70°C, humidity max. 85% rH
- Dimensions (W x H x D): 84 mm x 76 mm x 62 mm
- Weight: 276 g (incl. battery)
Scope of delivery
- SmartCross-Laser GX
- Tripod 45 cm
- Battery
