Laserliner 052.325A Cubus 110 S set Rotary Laser + 150 cm Tripod + Laser Receiver + Measuring Rod
The robust, fully automatic rotary laser is ideal for precisely aligning horizontal lines. Additionally, the device is suitable for leveling vertical lines and slopes. Thanks to an extra reference beam, aligning partition walls is simplified. The laser receiver can be easily attached to measuring rods, allowing for the marking of a height reference. This ensures the laser can always be readjusted to the desired height.
A convenient remote control allows all functions to be operated from a distance of up to 40 meters. The automatic shutdown prevents incorrect measurements caused by external influences. Moreover, thanks to parallel operation and charging with the powerful HighCapacityPack, based on lithium-ion technology, users can continue working without interruption and lose no time.
Special features
- Precise alignment of horizontal lines
- Time-saving, fully automatic alignment via 'Sensor-Automatic'
- Manual alignment of slopes
- 90° reference beam for plumbing and aligning partition walls
- Long operating time thanks to powerful HighCapacityPack with lithium-ion technology
- Extremely simple operation for practical use
- All functions can be controlled from a distance of max. 40 m using the remote control
- Lock-on tripod/wall mount with 5/8” thread for vertical applications
- Measurement safety thanks to automatic shutdown with ADS-tilt
- Waterproof housing
- Transport LOCK: The device is protected during transport by a special motor brake
- Laser modes: point, scan, rotation, and manual receiver mode
- Efficient, parallel operation, and battery charging
Technical data
- Leveling: horizontal / vertical / angle (automatic)
- Manual receiver mode: present
- Scan mode: present
- Point mode: present
- Manual tilt function: present
- Leveling with precision sensor: present
- Battery/mains power: present
- Anti-Drift System (ADS): present
- Tilt warning function: present
- Self-leveling range: ± 4°
- Accuracy: ± 0.15 mm/m
- Levelling type: automatic horizontal/vertical with electronic spirit levels and servo motors
- Laser wavelength: 635 nm
- Laser class: Class 2 / < 1 mW (EN 60825-1:2014/AC:2017)
- Laser modes: handheld receiver mode, point mode, rotation mode, scan mode
- Laser reception range: 1 - 100 m

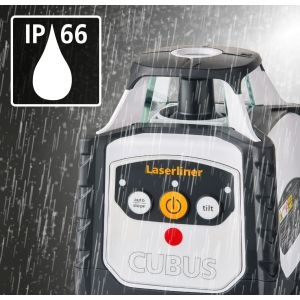

- Protection class: IP 66
- Power supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
- Operating time: approx. 20 hours
- Charging time: approx. 4 hours
- Operating conditions: temperature -10°C to 50°C, humidity max. 80% rH (not condensing), maximum working altitude 4000 m above sea level
- Storage conditions: temperature -10°C to 70°C, humidity max. 80% rH
- Dimensions (W x H x D): 130 x 160 x 145 mm (including tripod and wall mount)
- Weight: 1300 g (including tripod and wall mount)

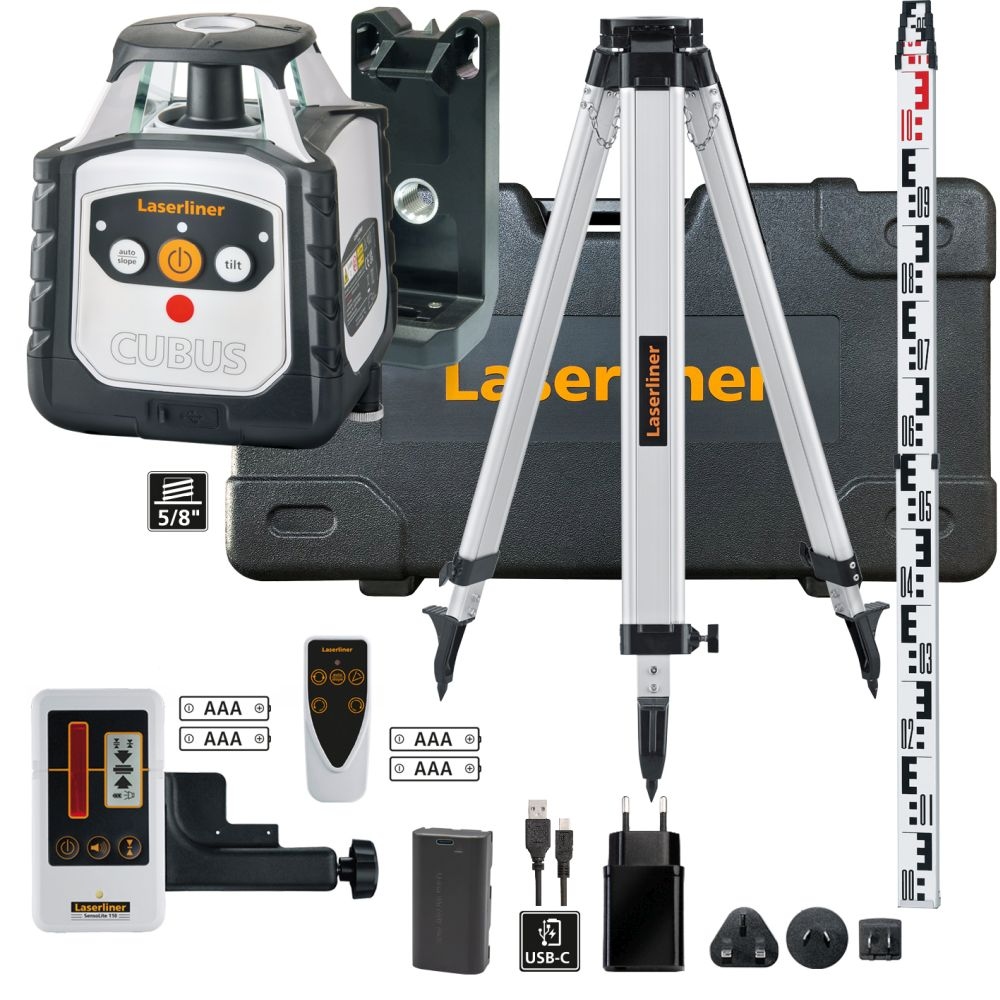

Scope of delivery
- Cubus
- SensoLite 110
- Lightweight tripod 150 cm
- Tripod/wall mount
- Universal holder
- Telescopic leveling rod LT 4 m
- Remote control
- HighCapacityPack (Li-Ion)
- Batteries
- Mains/charger incl. international adapter
- Carrying strap
- Carrying case
