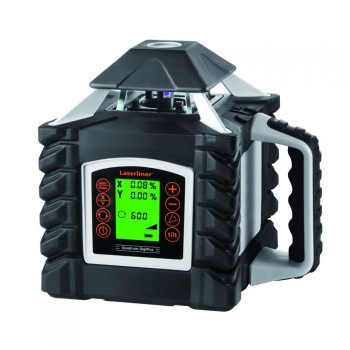

Laserliner Quadrum DigiPlus 410S Slope Laser
2-axis slope laser with a robust, waterproof housing
Features
- Vertical plumb bob
- Automatic alignment
- Manual tilt mode
- Four infrared receiver diodes
- ADS-Tilt function
- The Quadrum DigiPlus 410S laser liner is an automatic rotating laser that automatically aligns itself using its electronic servo motors with temperature-stable sensors.
- If external forces occur, the device automatically switches to the ADS-Tilt function.
- The horizontal plane can be tilted in the digital X and Y axes.
- Furthermore, the laser is equipped with LCD displays on the front and back and strong adhesive magnets, allowing attachment to metal surfaces.
- Tilt mode.
- A manual mode for slopes of more than 6°
- With the remote control, you can easily and conveniently operate all functions of the rotating laser.
- Thanks to the four-diode infrared receiver, the device can be operated from all sides.
Technical data
- Laser class - 3R, <5 mW
- Accuracy - 0.75 mm to 10 m
- Leveling - Automatic
- Laser wavelength - 635 nm
- Power supply - Battery
- Weight - 2.6 kg
- Dimensions - 215 (W) x 205 (H) x 165 (D) mm
Standard included
- SensoLite 410 receiver
- Universal mount
- Remote control
- Battery
- Charger
- Carrying case
- Batteries
