Laserliner VideoFlex G4 Max Professional Video Inspection System
Features
- The professional video inspection system with a wide depth-of-field range enables visual inspections in hard-to-reach places, such as in pipelines, hollow spaces in walls, and motor vehicles.
- The user can easily orient themselves spatially by rotating the base unit by feel.
- The very bright LED object illumination enables meaningful recordings even under poor conditions.
- Thanks to lifelike color reproduction, a realistic image is provided.
- Details can be clearly captured using the zoom function.
- The ergonomically designed device fits well in the hand and is comfortable to use, even during prolonged work.
- Eight available languages and the interchangeable camera unit ensure versatile application possibilities.
- An SD memory card is used for documentation and the USB-C interface for evaluating images and videos.
Technical data
- Camera head diameter Ø 17 mm
- Number of LEDs 4
- Field of view (fov) 57°
- Depth of field (DOF) 2 … 30 cm
- Probe length 1.5 m
- Display type 3.5" TFT Color display
- Connections USB Type C
- Video output RCA connector
- Memory Micro-SD memory card up to 16 GB
- Interface USB
- Protection class Base unit: IP 54
- Camera probe: IP 67
- Power supply USB type C 5V / 2A
- Li-ion battery pack 3.7V / 2.8Ah
- Using time approx. 5 hours
- Charging time approx. 4 hours
- Temperature (working conditions) 0°C … 45°C

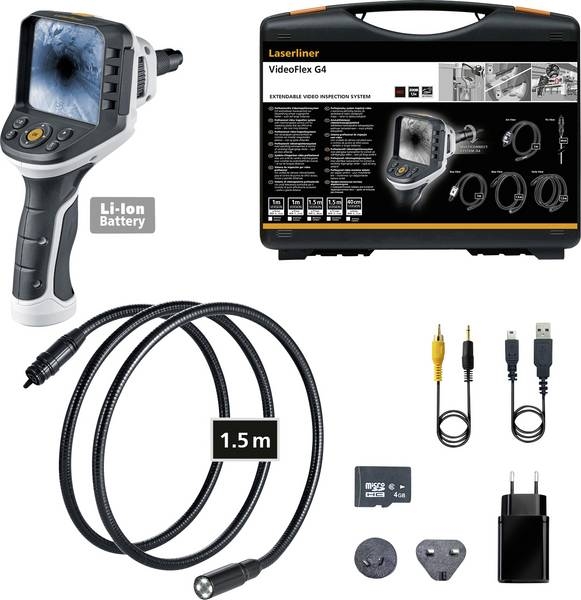

Scope of delivery
- VideoFlex G4,
- MaxView Camera 1.5 m
- Li-Ion battery pack, mains/charger with international adapter
- USB cable, software
- 4 GB micro SD card
- Video connection cable
- Carrying case
