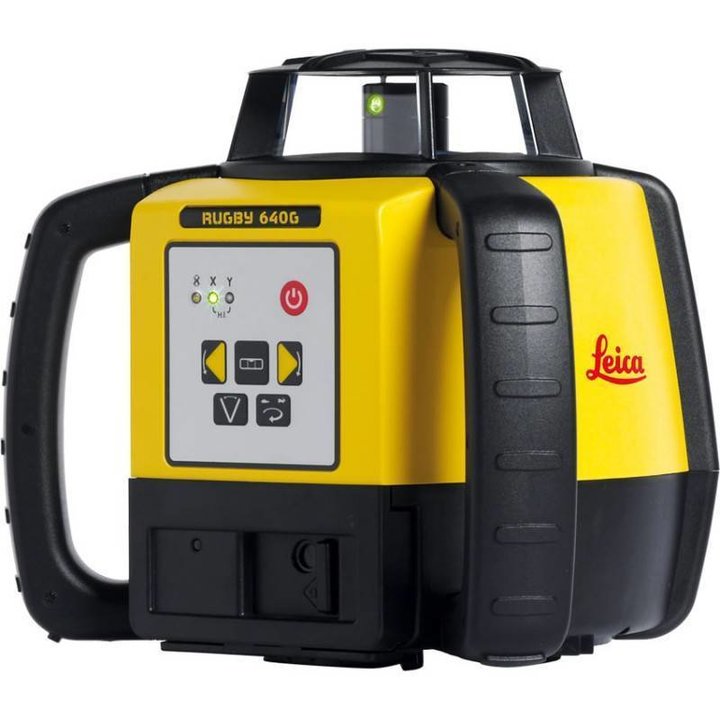

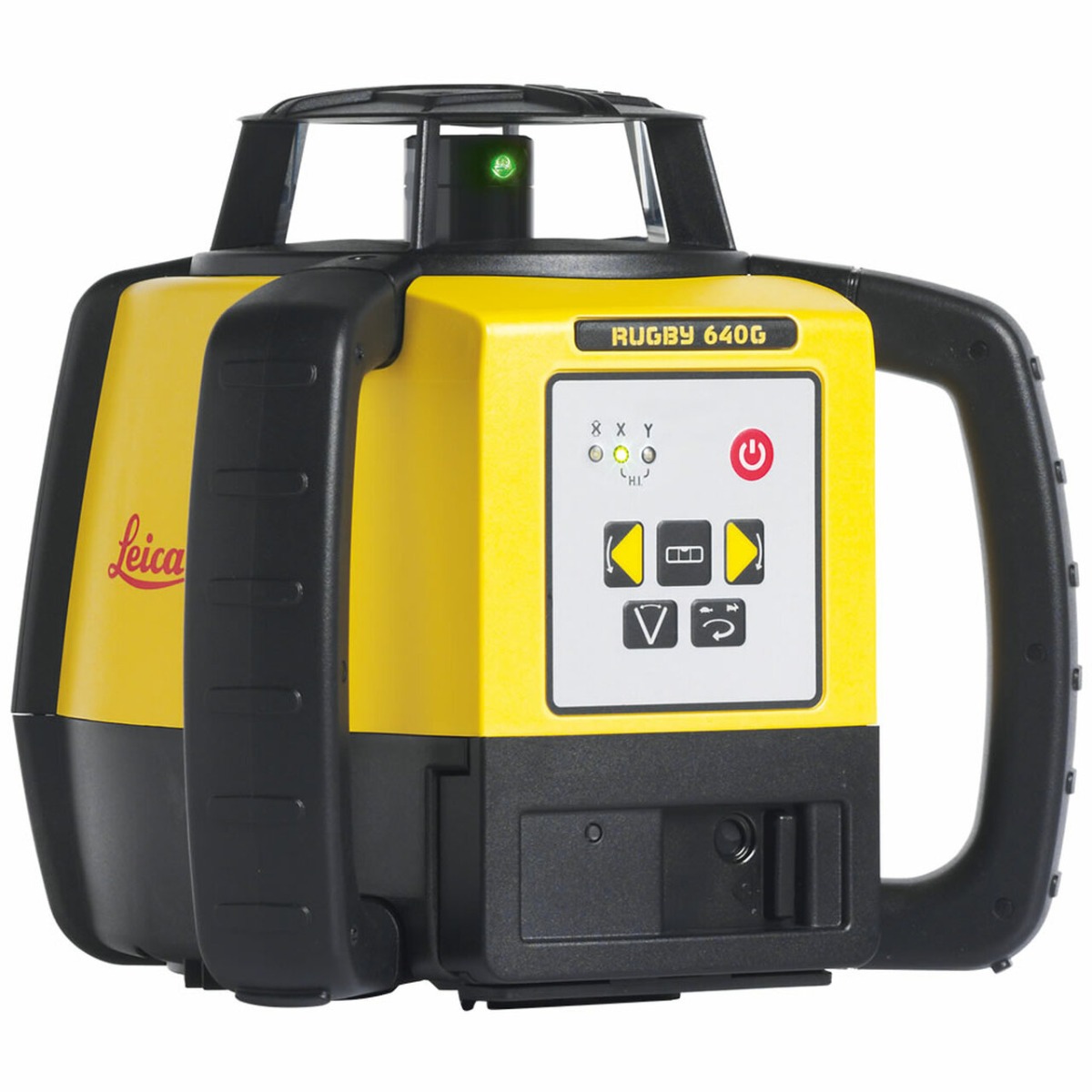

Leica Rugby 640G Green Self-Leveling Horizontal/Vertical Laser + Rod Eye 120 + RC400 + Smart Adapter 6011489
The Leica Rugby 640G universal laser offers contractors the ability to quickly and reliably perform all horizontal, vertical, and simple slope tasks, thus providing high versatility in general applications in rough construction and interior construction. Thanks to the green beam, visibility is 3 times higher than with a laser with a red beam. For easy beam detection, use the simple Leica Rod Eye 120 laser receiver. With the Smart Adapter, you can easily mount the laser to the wall or ceiling, making it a complete set for interior specialists.
Features
- The Leica RC 400 remote control increases functionality and application flexibility and offers contractors the ability to:
effortlessly perform slope and plumb line tasks
move scan lines
change rotation speed
save battery life where necessary
Additionally, drywall contractors benefit from the extremely easy and accurate setting out and alignment of interior walls using the Scan 90° function, automatic plumb line, and 90° reference beam. - Long working hours:
Avoid downtime due to low battery status: the Rugby 640 construction laser comes in a package with the long-lasting rechargeable Li-ion battery that can be charged during use, e.g. in the car with the car charger (optional accessory) or from any battery using the 12V battery cable (opt.).
Contractors working on large construction sites with many hours of sunshine will benefit greatly from the optional solar panel that can be attached to the carrying case for free charging of the Rugby 640 laser. - Best value for money:
The multifunctional Rugby 640G laser offers contractors a professional solution with an excellent price-performance ratio, allowing leveling and alignment for rough construction and drywall to be carried out quickly and easily. Contractors benefit from the extremely robust Li-ion battery with versatile charging options, and the Leica Rod Eye receiver can be used with it for additional functionality and application flexibility. The strong service offer – PROTECT by Leica Geosystems – includes a lifetime manufacturer's warranty and a three-year No Cost* period for the Rugby 640 rotating laser. - * Available free of charge upon online registration within 8 weeks of the purchase date
Technical specifications
- Accuracy 0.5 mm / 10 meters
- Working range Ø (receiver) 400 meters*
- Range (receiver) 200 meters*
- Visibility range (indoor) 30 meters*
- Self-leveling Yes
- Leveling range ± 5°
- Mechanism Servomotors
- Slope 8% in X-axis and 8% in Y-axis
- Slope mechanism Manual
- Slope input Manual
- Total slope 12% (total of the two axes)
- Plumb line Yes (down)
- Rotation speed 0/60/150/300/600 rpm
- Laser diode Class 2, 520nm, Green
- Protection IP67
- Operating time 40 hours (depending on conditions)
- Power supply Lithium Ion Battery
- Rechargeable Yes
- Mains connection Yes
- Operating temperature -10°C to +50°C
- Weight 2.4 kg
- Connection 5/8"
- Dimensions LxWxH 212 x 239 x 192 mm
Scope of delivery
- Leica Rugby 640G

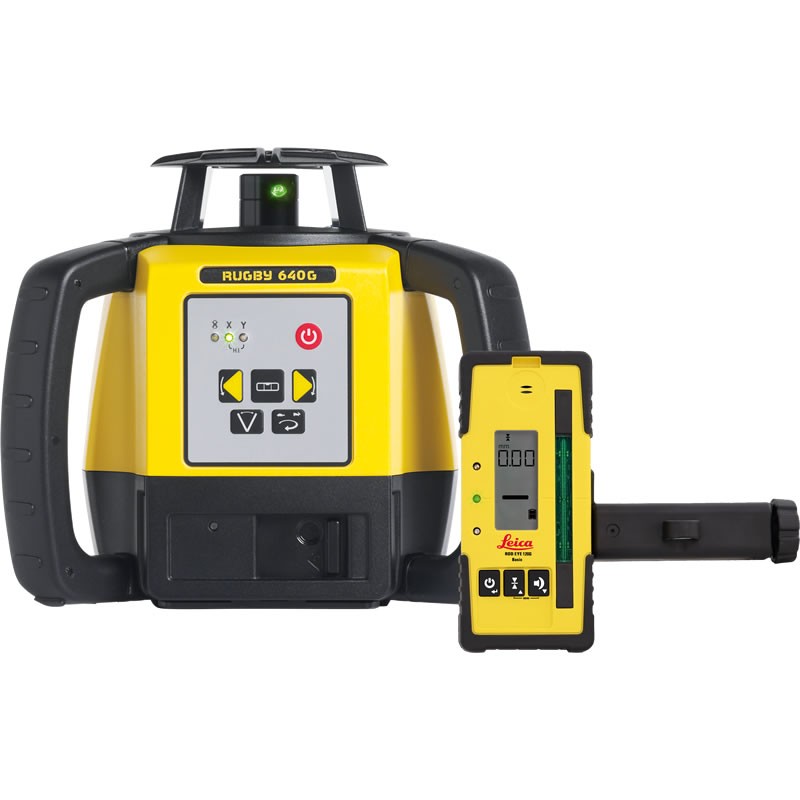

- Leica Rod Eye 120G receiver with staff clamp
- Leica RC400 remote control

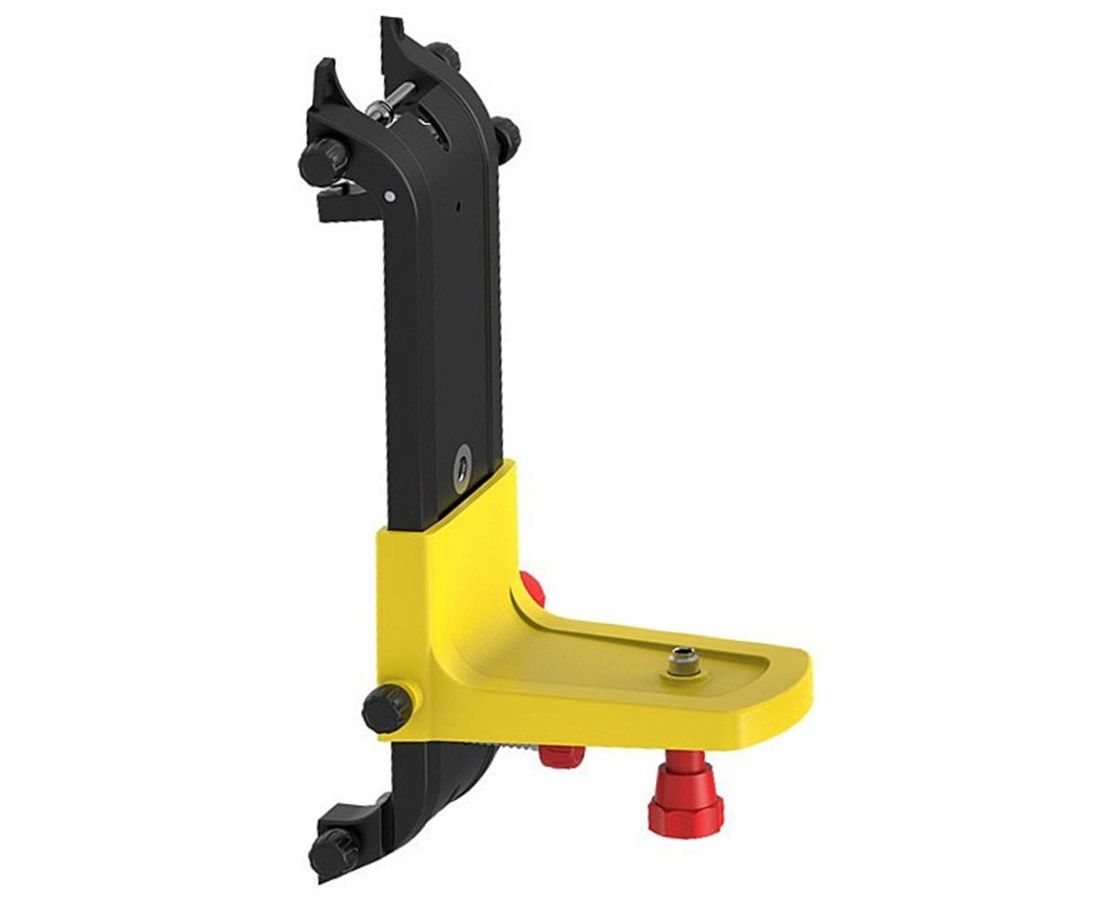

- Leica Smart Adapter
- Scan plate
- Li-Ion battery
- Charger
- Case
