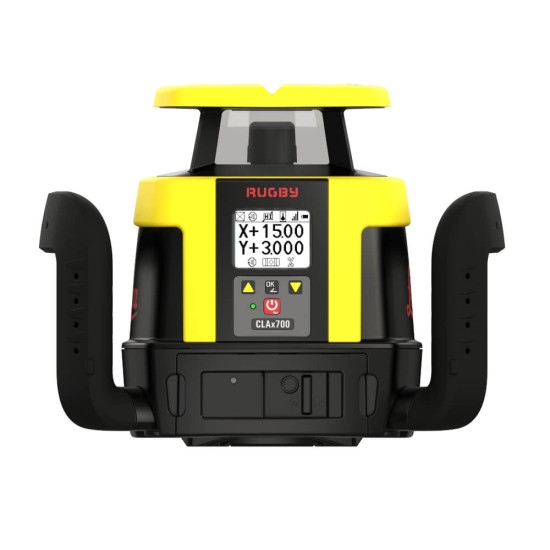

Leica 6018543 Rugby CLAx700Rugby CLAx700 Self-leveling Cordless Rotating Laser Horizontal and Vertical 1x Battery and Charger in Case
Special Features
- Self-leveling in horizontal and vertical directions with electronic tilt sensors and servo motors
- Fully automatic digital tilt function for projecting slopes up to ±15% in both axes, with input of tilt values (±10% in both axes simultaneously, value appears on the display)
- Variable rotation speed
- Scan function limits the laser beam to predefined areas
- Slope Catch allows aligning with existing tilt values
- Slope Lock monitors the tilt position to maintain the set value
- Beam Masking allows the laser beam to be switched off in selected areas (½ or ¾)
- Instrument height alarm ensures consistent accuracy by monitoring the beam position
- Distance from the laser beam to the center of the Combo receiver is displayed in mm or cm
- Temperature stability control monitors the operation of the internal leveling system during temperature fluctuations
- Semi-automatic calibration with digital measurement via the Combo receiver for adjusting each axis
- Equipped with 5/8" thread, suitable for all common construction tripods
Technical data
- Accuracy: ± 0.5 mm / 10 m
- Measuring range: up to 1350 m (diameter)
- Levelling range: ± 6° (± 10%)
- Rotation speed: 0, 120, 300, 600, 900 rpm
- Laser class: 2 (635 nm)
- Power supply: Li-Ion battery pack
- Protection class: IP68
- Operating temperature: -20 °C to +50 °C
- Weight: 3.8 kg
Scope of delivery
- 1x Rotary laser
- 1x Combo receiver / remote control with holder
- 1x Li-Ion battery and charger
- 1x Transport case
- 1x PROTECT card from Leica Geosystems
- 1x User manual and safety instructions
- 1x Quick Start Guide
