Leica Lino L2-1 Cross-line Laser 864413
Product Description
- The self-leveling cross-line laser L2-1 from Leica.
- The time-consuming process of using a spirit level is over.
- Set up the line laser and it automatically levels itself with a range of ± 4º.
- The large glass lens ensures a very wide laser output range and displays lines clearly with a range of 25 meters.
- The 2 lasers combined ensure an exact angle with just one press of a button.
- The self-leveling function can also be deactivated using the locking function, handy for aligning at any angle, for example on stairs.
- The locking function also acts as transport protection.
Special features
- Self-leveling line laser
- Wide exit angle
- Operates in very bright light conditions
- Clear laser lines
- Range of 25 meters without receiver / 80 meters with receiver
- 2 lasers (vertical and horizontal)
- Accuracy 0.2 mm
- Self-leveling range: 4°
- Self-leveling time: < 3 s
- Laser line thickness at 5 meters: 2 mm
- Laser type: 635 nm / Class 2
- Battery type: Rechargeable Li-Ion (or AA 3 x 1.5V)
- Operating time: up to 44 hours with Li-Ion battery
- Storage temperature: -25 to 70 °C
- Operating temperature: -10 to 50 °C
- Lock function
- Linear thread: 1/4
- Wall clamp thread: 1/4 + 5/8
- Dimensions: 110 x 60 x 100
- Lightweight
- Protection class: IP54
Technical data
- Net weight (kg) 0.53
- Width 60 mm
- Depth 100 mm
- Height 110 mm
- Protection IP54
- Operating temperature -10°C TO 50°C
- Rechargeable Li-ion Battery / AA 3 X 1.5V
- Range 25 M / 80M with laser receiver
- Laser class 635 NM / 2
- Leveling accuracy ± 2 mm at 5 m
- Vertical accuracy ± 0.75 mm at a line length of 3 m

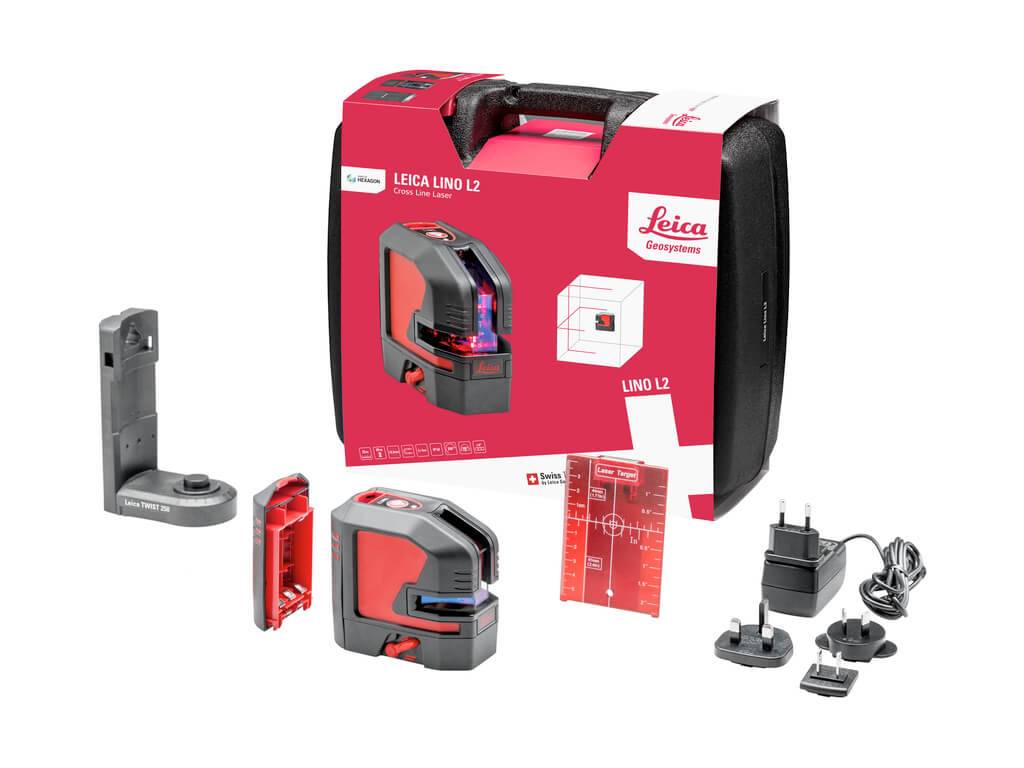

Standard included
- Leica Lino L2-1
- Guideline
- Magnetic, multi-purpose adapter
- Tripod ball adapter
- Case
