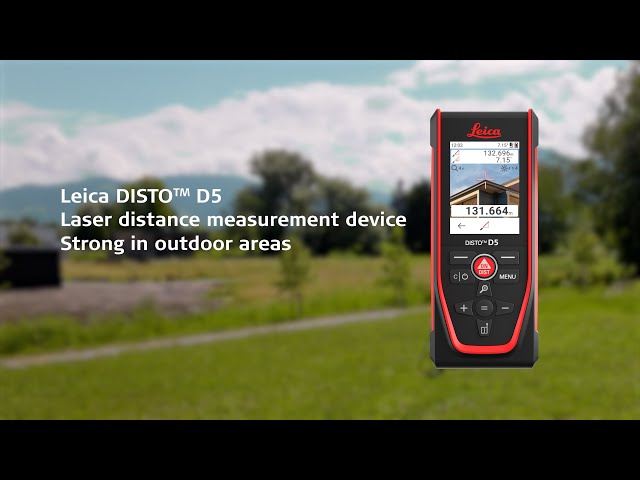

Leica Disto D5 SET Laser Distance Meter with Bluetooth for Indoor and Outdoor Use + Tripod in Metabox 165L
Features
- The Leica DISTO D5 is particularly suitable for outdoor distance measurements.
- Thanks to the digital point finder, aiming is no problem even in sunshine and at very long distances.
- Both the target and the measurement results are clearly visible on the large display with IPS technology.
- For maximum accuracy, the measurement can be activated by gestures, which is a clear advantage, especially over long distances.
- High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements.
- This allows every measurement situation on the construction site to be solved quickly and efficiently.
- The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and further processed to support an efficient and error-free digital workflow.
Details
- Range up to 200 meters
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measure slopes
- Smart horizontal mode
- Fast startup time
- Foldable end piece with automatic detection
- Bright and clear 2.4-inch IPS screen with scratch-resistant lens
- Activate measurements with gestures
- Memory for 50 measurements
- Rechargeable Li-Ion battery

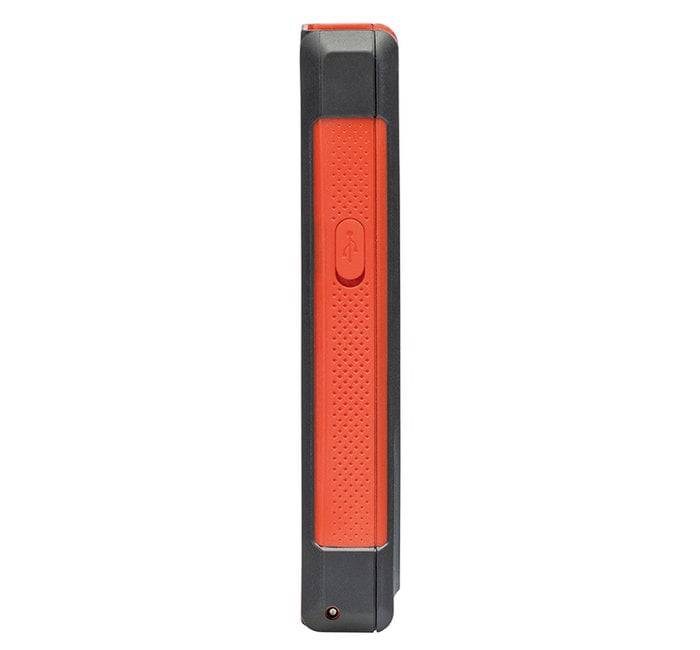

- Charging via USB-C
- Keyboard mode, simulates data transfer via Bluetooth®
- Bluetooth® 5.0 technology for error-free data transfer
- Works with DISTO Plan app (iOS and Android) and DISTO Transfer (Windows)
Technical data
- Favorable conditions accuracy * 1.0 mm / 1/16"
- Unfavorable conditions accuracy ** 2.0 mm / 1/8"
- Favorable conditions range 0.05 – 200 m / 0.07 – 660 ft
- Unfavorable conditions range 0.05 – 120 m / 0.07 – 400 ft
- Smallest displayed unit 0.1 mm / 1/32 inch
- X-Range Power technology yes
- Laser class 2 635 nm, <1 mW

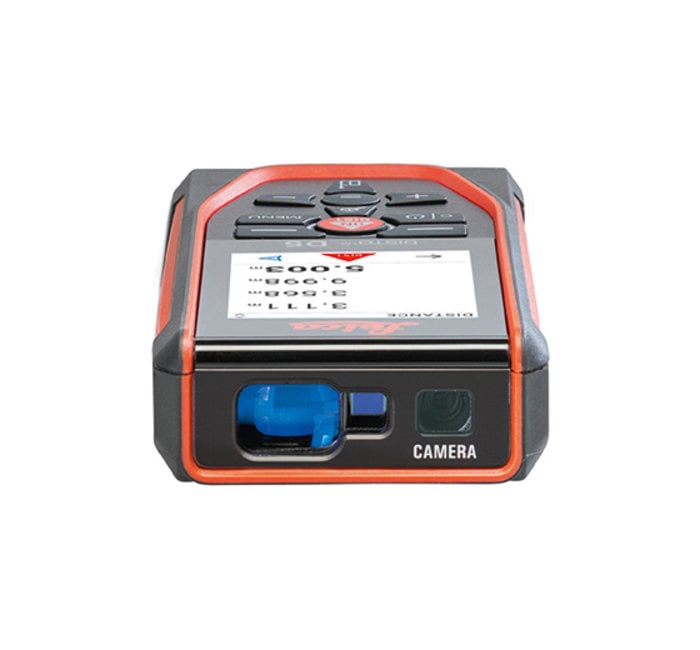

- Digital point finder with 4x zoom yes
- Measuring range tilt 360°
- Measuring tolerance for tilt angle ± 0.2°
- Ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
- Protection class IP54 (dust and splash-proof)
- Auto. laser shutdown after 90 s
- Auto. shutdown after 180 s
- Bluetooth® Smart Bluetooth® v5.0
- Bluetooth® range up to 10 m
- Battery life (Li-Ion 2,000 mAh) up to 5,000 measurements up to 10 hours operating time
- Dimensions (H x D x W) 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 inches
- Weight (with batteries) 180 g / 6.35 oz
- Storage temperature range | operating -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F
Scope of delivery
- Hand loop
- Pouch
- Charger with USB cable

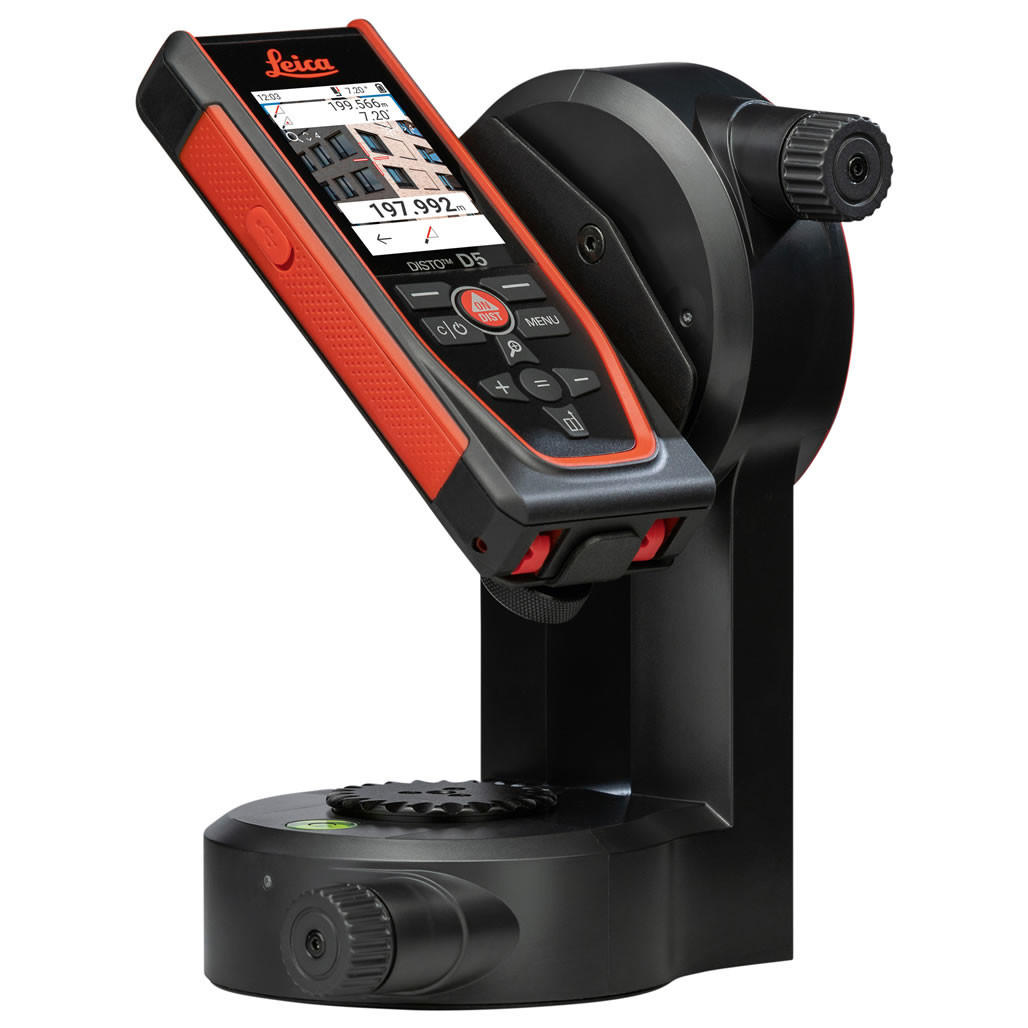

- FTA 360 adapter

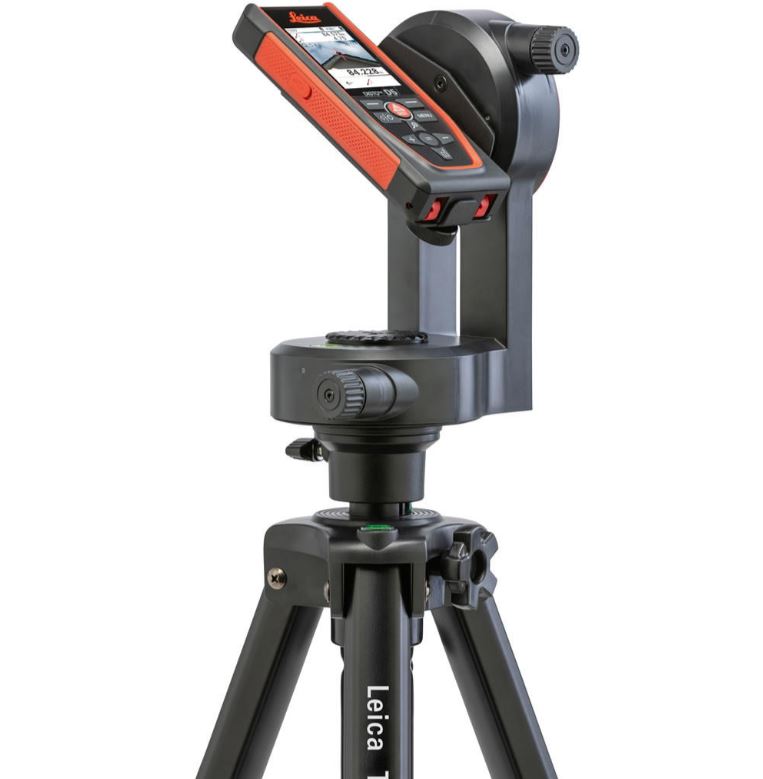

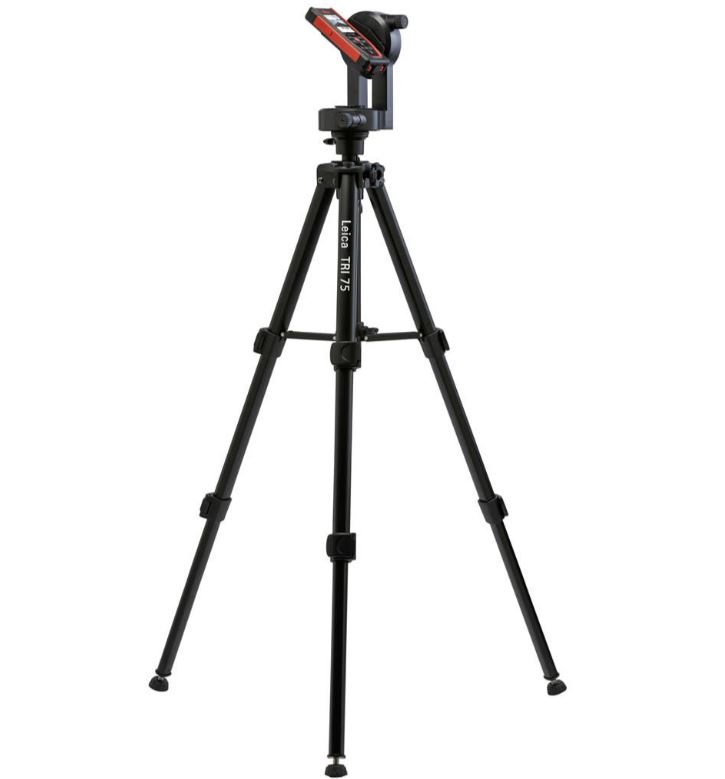

- TRI 75 Tripod
- Manual
- Calibration certificate
- Warranty card
- In Leica Metabox 165L
