Levelfix554610650H Horizontal Construction Laser red with base receiver
Special features
- Reliable construction laser for staking out, concrete pouring, and height control
- Easy to operate and designed for ease of daily use
- Tilt function prevents measurement errors in case of shocks or unwanted movement
- Manual slope function adjustable on x- and y-axis
- IP66 construction: protected against dust and moisture
- Accuracy: 4.8 mm at 100 m
- Updated and removable Li-ion battery pack
- Large working range of 600 m (with receiver)
- Long operating time of 55 hours

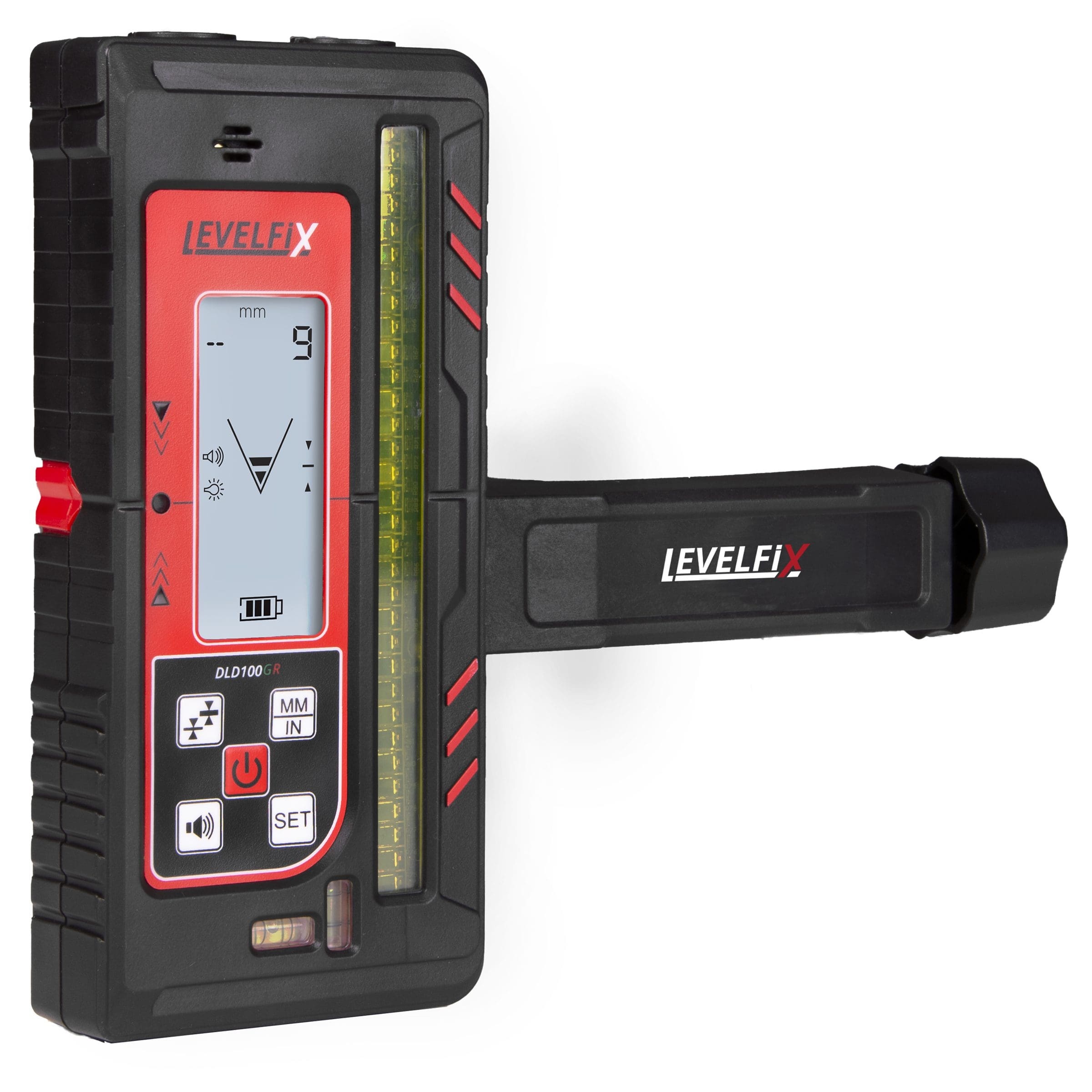

- Supplied complete with digital receiver DLD100R
- Receiver with large receiving window, brightly illuminated display, robust impact-resistant housing and IP66 protection
- Receiver indicates distance to 0-line in millimeters
- Adjustable 0-position for easy height transfer
Technical data
- Working range: 600 m
- Accuracy: 4.8 mm/100 m
- Operating time: 55 hours per charge
- Protection class: IP66 (waterproof)
- Functions: manual slope and TILT function

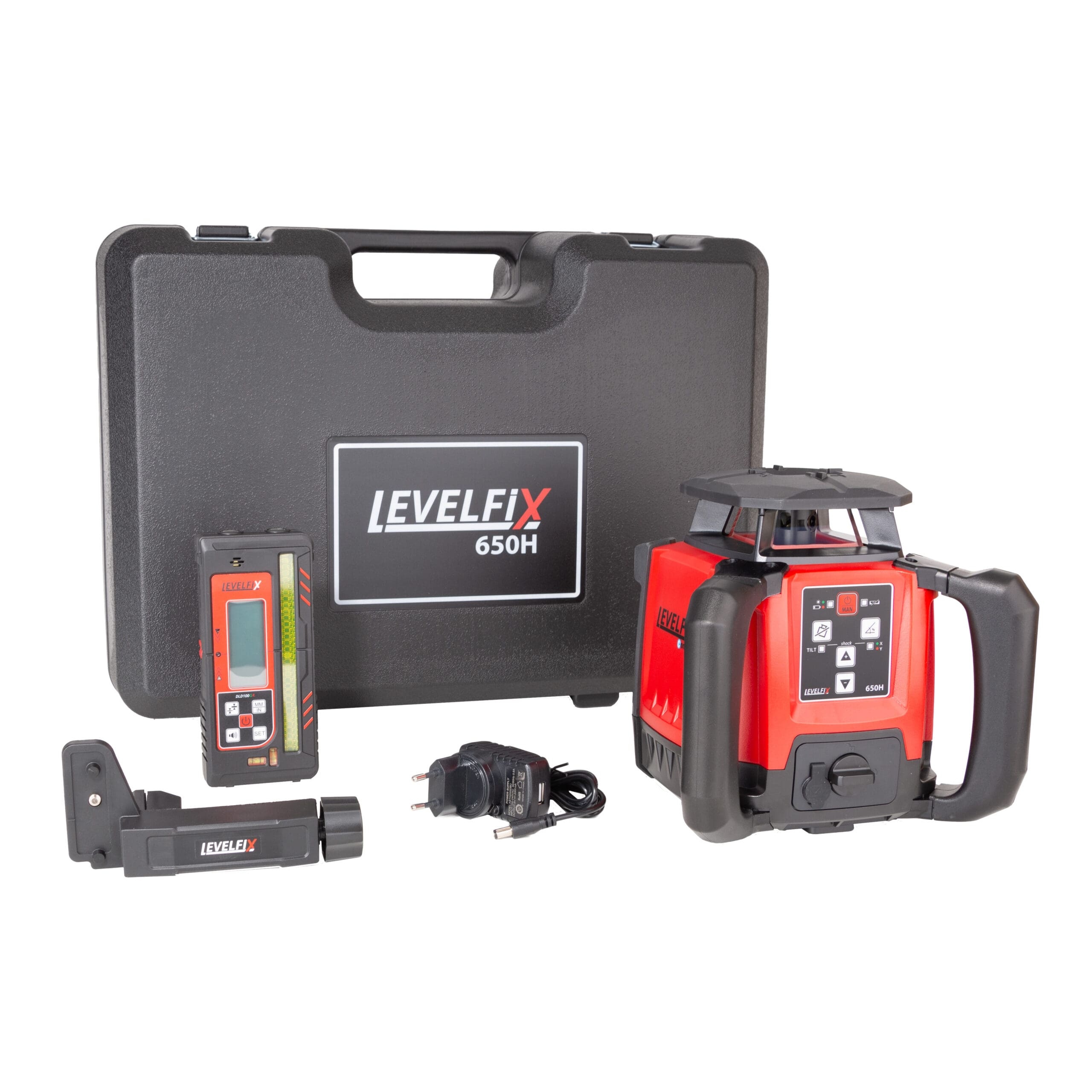

Scope of delivery
- 1× DLD100GR handheld receiver
- 1× LS-BK100 staff clamp
- 1× CH012 charger
- 1× AC501 battery
- 1× Plastic case
