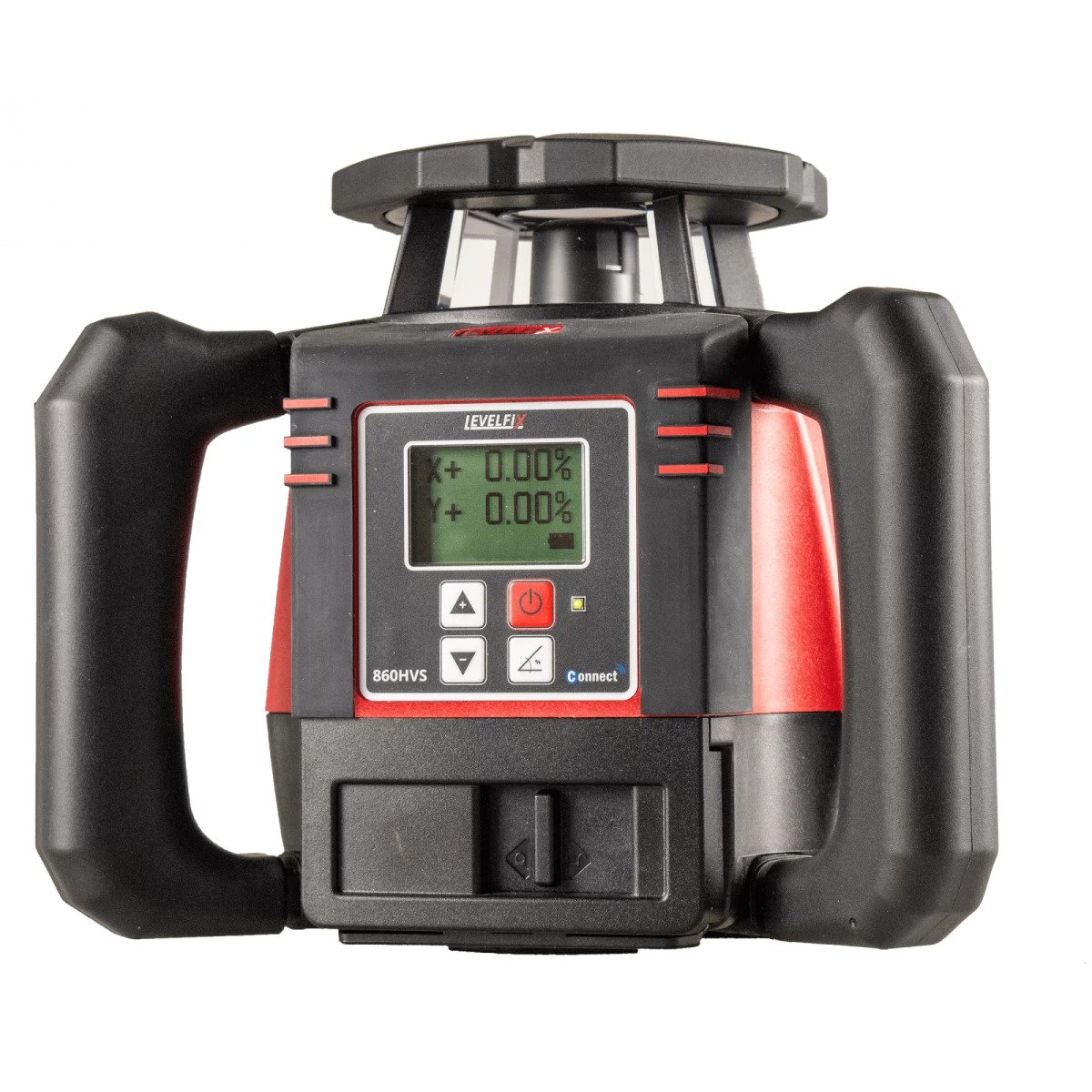

Levelfix 860HVS Red Construction Laser with Digital Dual Slope
Features
- The slope on the 860HVS, which is equipped with a large and clear display, can be digitally set on both axes. SmartSlope technology ensures a controlled slope with HI protection and monitors temperature fluctuations. Alignment becomes child's play; the unique Auto-Alignment function on both the x- and y-axes ensures that the laser automatically finds the center of the receiver. Place the receiver at the correct height, and with just one press of a button, the laser will locate the receiver itself and a slope is set. The high adjustable speed of 1200 rpm makes the laser ideal for use with machine receivers. Additionally, the 860HVS is equipped with window blackout (blinding certain sides). This feature ensures that you can also use the laser where reflection of the laser beam may occur. You can easily switch off the side that causes reflection near windows or reflective materials, or where the laser beam should not be detectable.
- The 860HVS can be positioned vertically. The plumb function ensures that the laser beam is automatically aimed downwards, enabling exact position determination. The Auto Alignment function can also be used in the vertical position, making vertical alignment up to 100 meters particularly simple and fast. The Auto Tracking function will continue to follow the receiver and is ideal for continuous position monitoring. Furthermore, the vertical line can be adjusted very precisely using the remote control. This makes the 860HVS excellently suited for aligning and setting out vertical lines over long distances, such as in facade construction, structural work, building windows, foundations, and many other applications.
- The laser comes standard with the robust SLD800 millimeter receiver. This allows you to read the difference to the center in MM. The adjustable accuracy makes the SLD800 suitable for all types of work. The SLD800 is equipped with bright LEDs, an adjustable noise level, and a backlit LCD screen on both sides. With the remote control featuring the latest generation BLE5 Bluetooth connection, you can operate all the laser's functions from a distance of up to 100 meters.
- Smart communication between your smartphone and your LEVELFIX laser. With the LEVELFIX CONNECT App, you can easily connect the 860hvs to your smartphone. Once connected, you can, among other things, operate the laser remotely, set a PIN code (anti-theft), or activate the digital ShockSensor. The app's functionality will be further expanded in the near future.
- The Charge&Work function allows you to charge the Levelfix 860hvs while using the instrument. This way, you avoid unnecessary waiting time due to empty batteries that need to be charged first.
Technical specifications
- Range: 1100m
- Accuracy: 4.8mm / 100m
- Functions: rotate 300/600/1200 rpm, plumb point, digitally input slope on both axes, window masking, Auto-Alignment, Auto-Tracking, Smart Slope.
- Laser class: 635 nm / class 2m (red)
- Construction: IP 67
- Rechargeable: Yes
- Slope: Digitally adjustable
- Slope range: 0 to 8%
Scope of delivery
- Digital mm receiver SLD800 and staff clamp
- Remote control
- Li-on battery and charger
- Case
