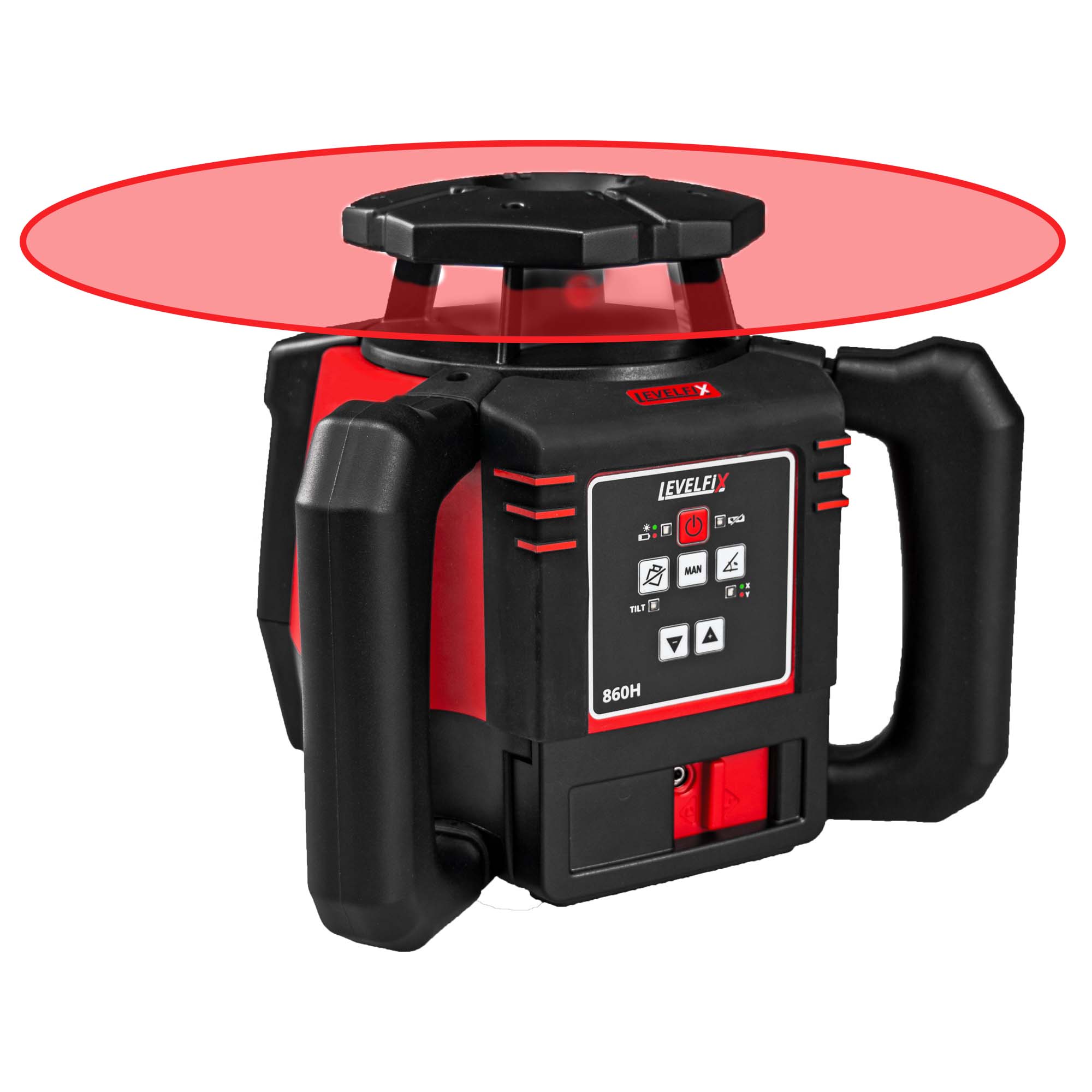

Levelfix 860H Horizontal Red Construction Laser with semi-automatic slope on both the x- and y-axis
Features
- The 860H is a robust horizontal construction laser that will perform under the toughest conditions. For instance, the 860H features an extremely robust housing and, with its IP67 rating, is protected against all weather conditions. The excellent specifications ensure that the 860H is a reliable partner for every project.
- Thanks to the tilt function, the laser constantly monitors the height, ensuring you always work with the correct measurement. Does the height change due to movement? Then it locks automatically, so you never make a mistake. In addition to this function, the 860H has a slope function. With this function, you can quickly and easily set a semi-automatic slope on both the x- and y-axes.
- The Levelfix 860H comes with the digital DLD100GR receiver, giving it a range of up to 600 meters. This receiver is accurate, easy to use, moisture-resistant, and can take a beating. Additionally, this receiver displays the difference to the 0-line in millimeters.
- The pendulum system ensures that the Levelfix 860H levels perfectly. If the Levelfix 860H is not set correctly, the lines will flash. The self-leveling system can also be switched off. This allows you to project any desired angle.
- You can work with the 860H for up to 55 hours before the battery needs to be recharged. But even then, your work doesn't have to stop. Thanks to the Charge&Work function, you can charge the laser while you are using it. The 860H is therefore the ideal construction laser for the most demanding user and is part of our Levelfix Construct range for good reason.
Technical data
- Range: 800m
- Accuracy: 4.8mm / 100m
- Functions: Rotate 600 rpm
- Laser class: 635 nm / class 1 (red)
- Operating time: 55 hours
- Construction: IP 67
- Rechargeable: Yes
- Slope: Manually adjustable
- Slope range: 0 to 10%
Scope of delivery
- Receiver DLD100GR
- Beacon clamp
- Battery and charger
- Plastic suitcase
