Levelfix CPL206G Cross-line/5-point laser Green
Features
- The LEVELFIX CPL206G is a compact line-point laser that projects a green 190° horizontal and vertical line and 5 points at 90°
- Compact: The CPL206G is a compact and handy laser equipped with high-quality components and excellent specifications, and the necessary accessories to get started immediately.
- SmartLock: The self-leveling pendulum system levels itself. The SmartLock system ensures that you can transport the instrument safely because the pendulum is locked in this position. By switching on the laser in this position, slope lines can be projected if necessary.
- HighPower diode: The laser is equipped with a strong green laser diode that is up to 4x more visible than the classic red diode. The HighPower diode projects bright and sharp laser lines. Visibility remains highly dependent on ambient light. The more light, the less visible the lines are.
- Receiver function: The laser features a receiver function. This allows you to use the laser in combination with a LEVELFIX receiver (Optional) at longer distances or outdoors, even if the line is no longer visible.
- With a receiver, the lines can be detected up to 50m.
Technical specifications
- Accuracy 2mm/10mtr
- Range (with receiver) 40 meters
- Laser class green 2M / very visible
- Levelling range 5 °
- Protection IP 54
- Operating time 8 hours
- Rechargeable No
- Suitable for receiver Yes
- Number of lines 1H / 1V / 5 points
- Brand LEVELFIX
- Levelling Pendulum

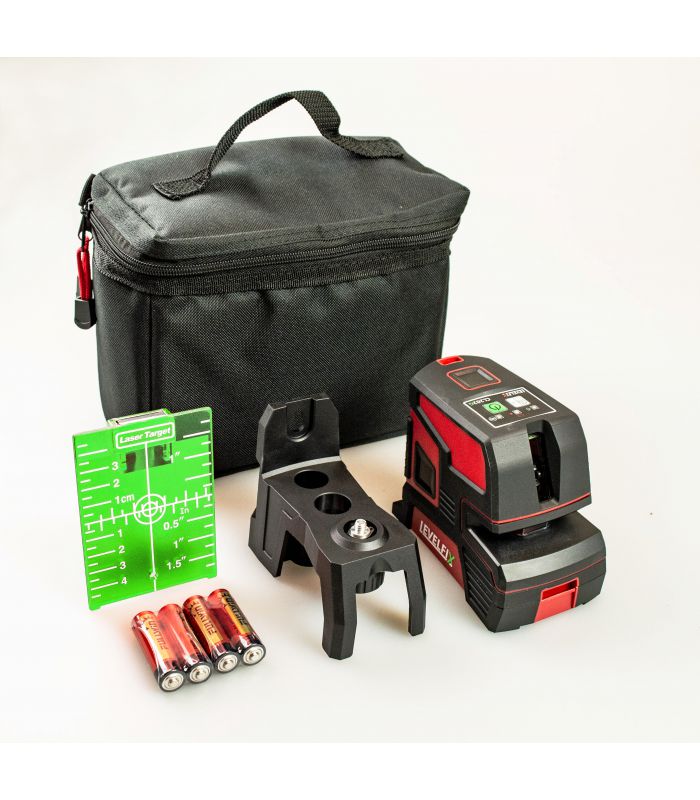

Standard included
- Laser CPL206G
- Target plate
- Batteries

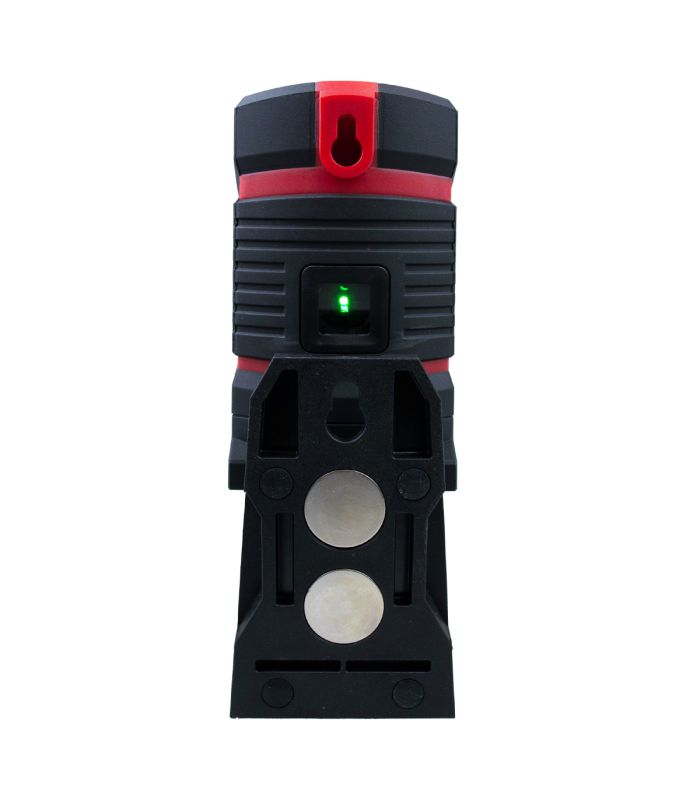

- Multifunctional, magnetic mounting base
- Sturdy bag
