Levelfix CL202R Red Cross Line Laser Set + Tripod
Features
- The LEVELFIX CL202R is a compact line laser that projects a red 190° horizontal and vertical line.
- Self-leveling line laser with red beam
- 1 horizontal and 1 vertical line
- Accuracy 2 mm/ 10 mtr.
- Compact: The CL202R is a compact and handy laser equipped with high-quality components, excellent specifications, and the necessary accessories to get started immediately.
- SmartLock: The self-leveling pendulum system levels itself. The SmartLock system ensures that you can transport the instrument safely because the pendulum is locked in this position. By switching on the laser in this mode, slope lines can be projected.
- HighPower diode: The laser is equipped with a strong red laser diode that is more visible than the classic red diode. The HighPower diode projects bright and sharp laser lines. Visibility remains highly dependent on ambient light. The more light, the less visible the lines are.
- Receiver function: The laser features a receiver function. This allows you to use the laser in combination with a LEVELFIX receiver at longer distances or outdoors, even if the line is no longer visible.
- With a receiver (optional), the lines can be detected up to 50m.
Technical specifications
- Accuracy 2mm/10mtr
- Range (with receiver) 40 meters
- Functions Cross line
- Levelling range 5 °
- Laser class red 2M / high visibility
- Protection IP 54
- Operating time 10 hours
- Rechargeable No
- Suitable for receiver Yes
- Number of lines 1H / 1V
- Brand LEVELFIX
- Levelling Pendulum
Standard included
- Cross-line laser CL202R
- Target plate
- Batteries
- Multifunctional, magnetic mounting base
- Sturdy bag

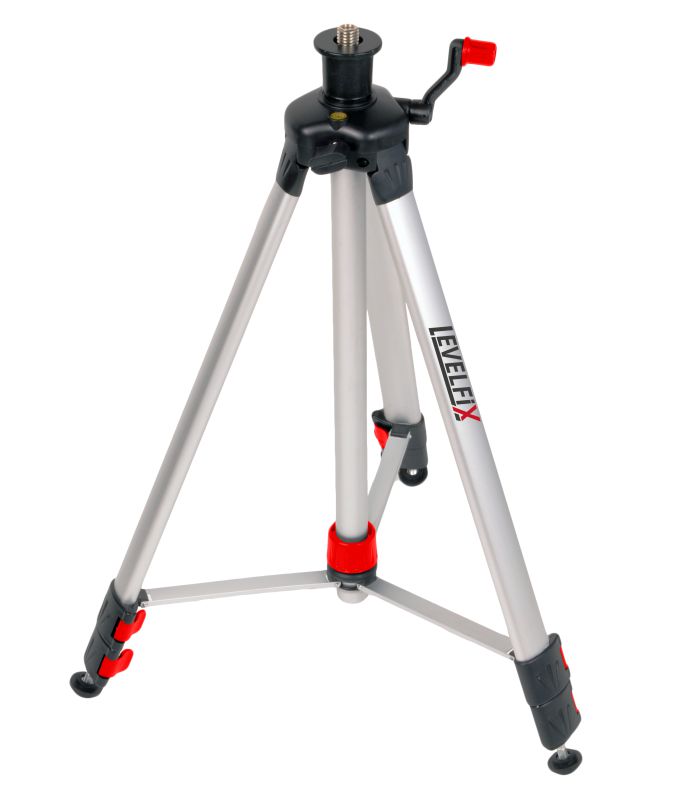

- Crank-up tripod P150L up to 1.5 mtr.
