Levelfix CCL680G SET 360° Cross Line Laser Green - 360° horizontal, 4 vertical lines and downpoint + Tripod 1.5m
Features
- The leveling foot with 360° fine adjustment allows the CCL680G to be aligned accurately. The degree scale ensures that any angle can be easily marked out. The leveling foot is detachable so that the CCL680G can be easily mounted on a tripod or holder without adapters. The included magnetic base and wall mount ensure that the instrument can be quickly and easily mounted on the wall or a metal surface.
- The pendulum system ensures that the Levelfix CCL680G levels perfectly. If the Levelfix CCL680G is not set correctly, the lines will flash. The self-leveling system can also be switched off. This allows you to project at any desired angle.
- The Levelfix CCL680G is equipped with an ultra-strong green laser diode that is more visible than the standard HighPower diode and up to 6x more visible than the classic red diode. The HighPower+ diode projects bright and sharp laser lines. Visibility remains highly dependent on ambient light. The more light, the less visible the lines are.
- The Levelfix CCL680G features a receiver function. This allows you to use the CCL680G in combination with a LEVELFIX receiver over longer distances or outdoors, even if the line is no longer visible. With a receiver, the lines can be detected up to <50m. The LLD100GR receiver is available as an option.
- The self-leveling pendulum system levels itself. The SmartLock system ensures that you can safely transport the Levelfix CCL680G, as the pendulum remains locked in this position. By switching on the CCL680G in this mode, slope lines can be projected.
- The Charge&Work function allows you to charge the Levelfix CCL680G while using the instrument. This prevents unnecessary waiting time due to empty batteries that need to be charged first.
- Smart communication between your smartphone and your LEVELFIX laser. With the LEVELFIX CONNECT App, you can easily connect the CCL680G to your smartphone. Once connected, you can, among other things, operate the laser remotely, set a PIN code (anti-theft), or activate the digital ShockSensor. The functionality of the app will be further expanded in the near future.
Technical specifications
- Range: 30m / receiver 50m
- Accuracy: 2mm @ 10m
- Functions: horizontal 360°, 4x vertical 90°
- Laser class: 525 nm / class 2m (green)
- Rechargeable: Yes

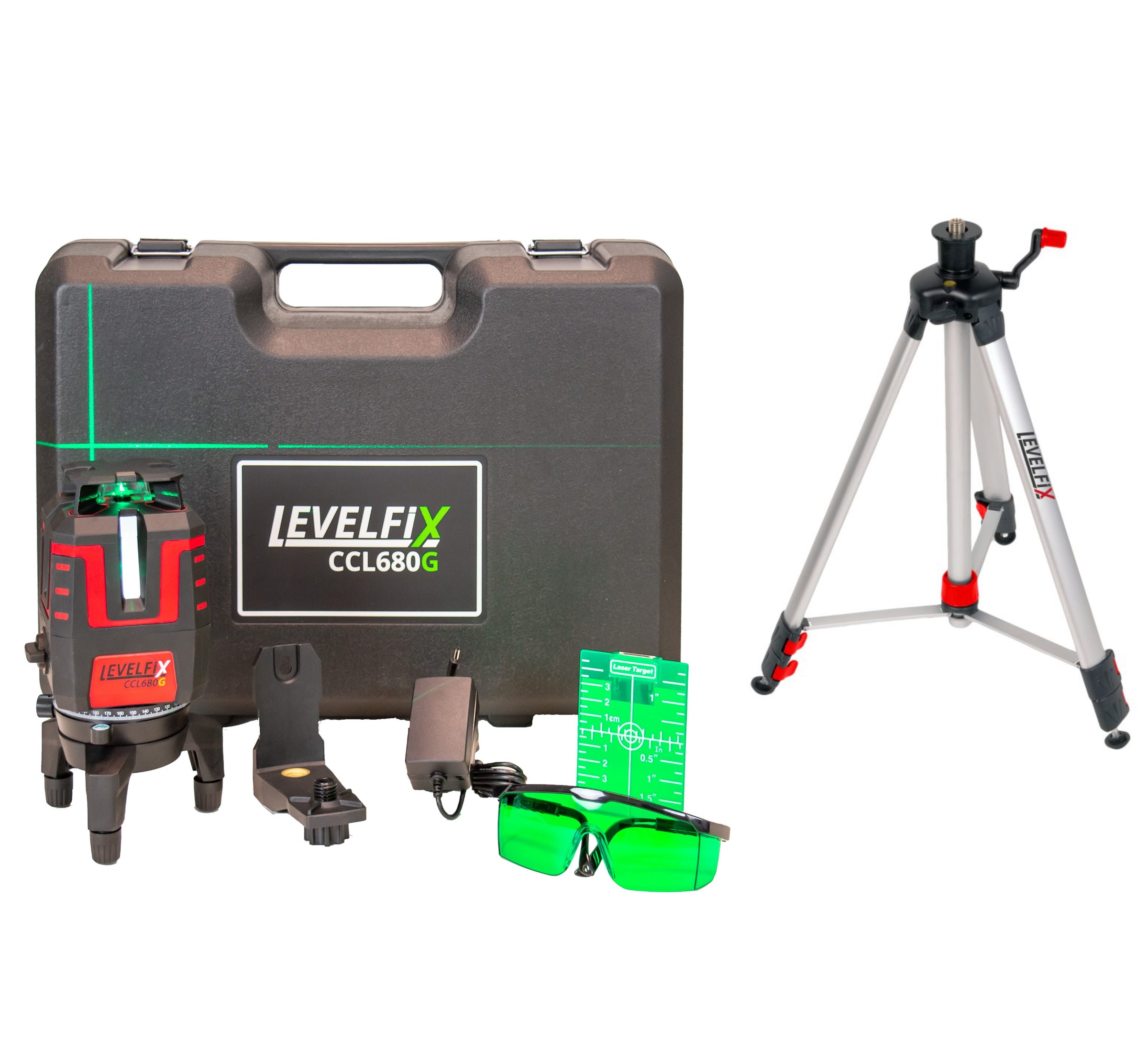

Scope of delivery
- Magnetic wall mount
- Li-ion battery and charger
- Target plate and laser glasses
- In plastic case
- Tripod 1.5 meters
