Little Jumbo Apache ladder lift 10.4 m with articulated arm
Special features
- Professional, robust ladder lift
- Compliant with EN12158-1/2.
- Equipped with 220V/0.75kW motor with winch/6 mm steel cable and remote control with emergency stop.
- Winch unit easily moved like a wheelbarrow thanks to the included wheel set.
- With galvanized steel posts, triangular ladder sections can be loaded up to 150 kg.
- The elements have only
- 1 locking point, making them very easy and quick to assemble.
- No support required due to strong triangular construction.
- Extendable to 20 m.
Standard included
- 1 x base section with winch system

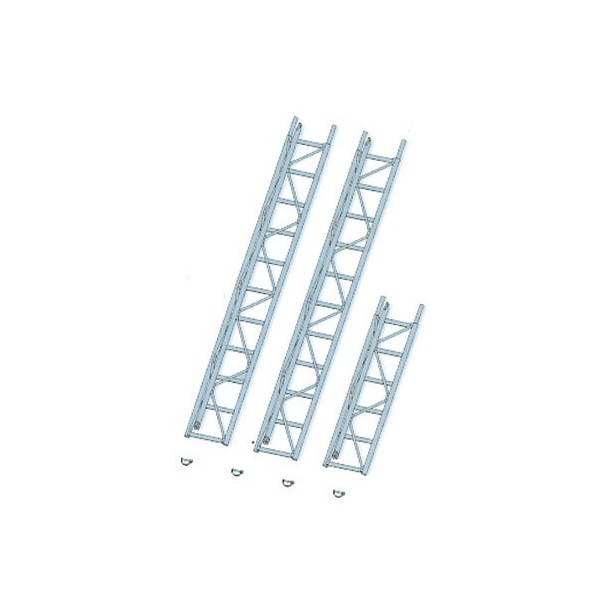

- 4 x ladder/assembly element 2 m
- 1 x ladder/assembly element 1 m
- 1 x articulated section 0-65 degrees
- 1 x headpiece with cable pulley
- 1 x carriage with fall protection
- 1 x material bin
- 2 x side panels for material bin
- 1 x set of wheels 300 mm
- 7 x quick coupler
- 2 x ladder support beams
