Mafell 915501 SKS130 Lock Case Milling Machine, 16 mm chain set
Now a total of 5 years warranty on Mafell SKS 130 Machines(*)
(*) Now a total of 5 years warranty on machines after registration of your machine, via the enclosed warranty form.
SKS130 Features
- The SKS 130 is the absolute world premiere in the field of mobile machines for mortising lock cases.
- Safety requirements for homeowners and residents have increased significantly in recent years.
- Therefore, more and more security locks are being installed.
- With a power of 1600 Watts, the SKS 130 mills lock cases of any desired size completely splinter-free!

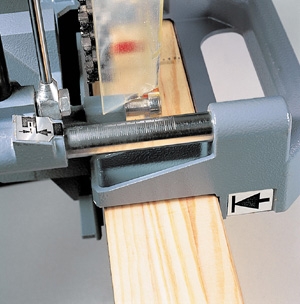

- With a large and stable clamping surface, the SKS 130 is mounted on the door clamped.
- Thanks to the pertinax and rubber coating of the clamping device, the door surface remains undamaged.
Technical data SKS 130
- Pitch depth 145 mm (130 mm)
- Pitch width 16 mm
- Pitch length 78 mm
- Stroke 175 mm
- Speed (unloaded) 5770 rpm.
- Speed (loaded) 4370 rpm.
- Cutting speed 8.6 m/s
- Universal motor Voltage 230 V Frequency 50/60 Hz
- Power input 1600 W
- Power output 950 W
- Weight 10.0 kg
- Suitable for on-site or workshop use.
Standard equipment included
- Mount cutter SKS 130 Order No. 915 501
- 2 Guide rails Order No. 091 000
- 2 Cutter chains Order No. 091 001
- 2 Sprockets Order No. 091002
- 1 Hex screwdriver SW 5 Order No. 093 278
- 4 m Cable with plug Order No. 087 323
- 1 Transport case
