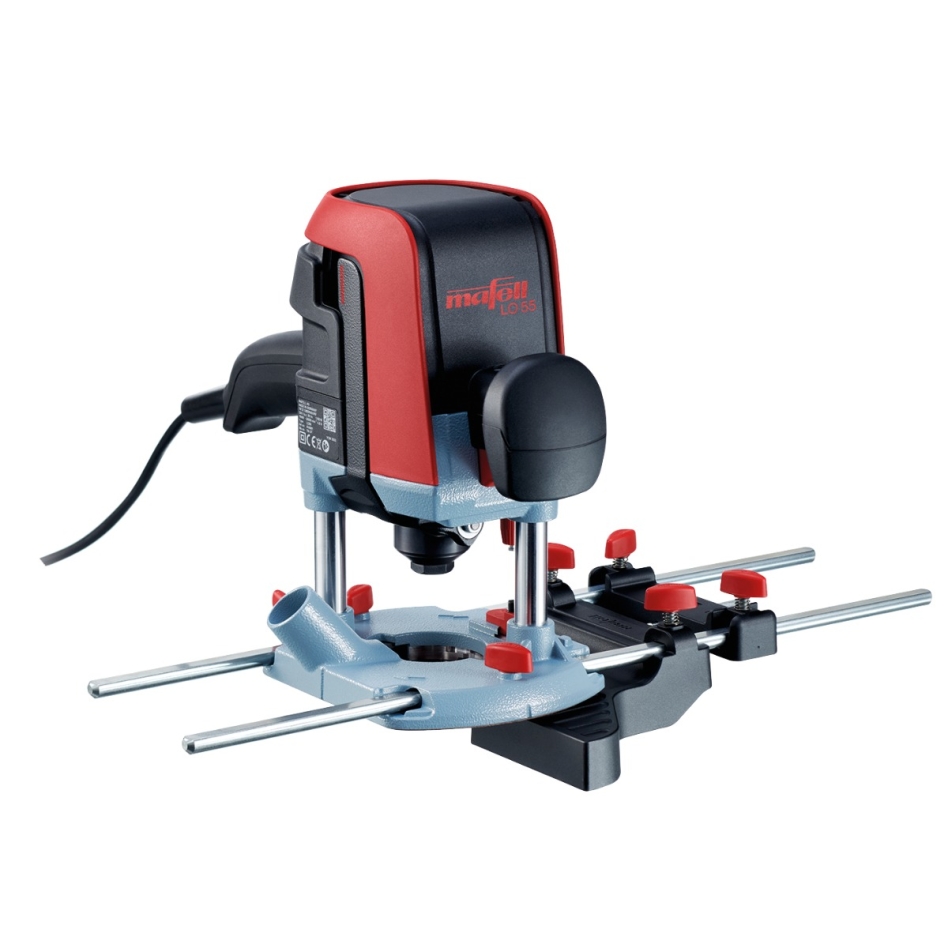

Mafell 91A901 LO55 Router in MAX3 case
Now a total of 5 years warranty on Mafell LO 55 EC Machines(*)
(*) Now a total of 5 years warranty on machines after registration of your machine, via the enclosed warranty form.
The new LO 55 ensures an unparalleled routing experience. Thanks to tool-free cutter changes, the newly developed routing depth adjustment with permanent height clamping, and many other features, you can concentrate fully on your work. With ease, efficiency, and precision, every routing process becomes child's play without lengthy preparation. With the Ergo-Balance concept, you, the user, are at the center. For example, the LO 55 is optimally balanced. There are no vibrations or vibration transmission.
MORE BALANCE
- The position of the handle on the LO 55 is ergonomic and non-slip. Furthermore, the router always stands stably thanks to the high-pressure adjustment capabilities.
MORE SAFETY
- Annoying or protruding edges? Not with the LO 55. When laying down the router, neither the machine nor the workpiece is damaged.
MORE CONTROL

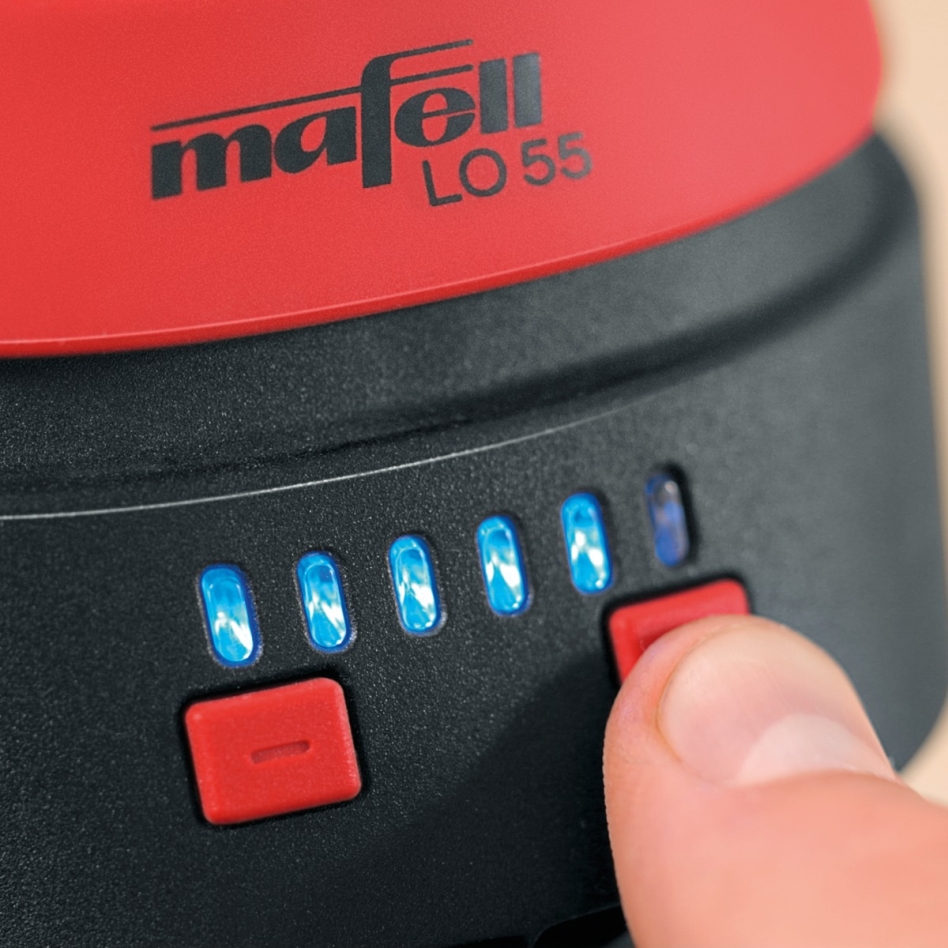

- All controls on the LO 55 are red or marked in red, making them immediately noticeable. The digital electronics provide warning instructions via the LEDs and the copying rings are automatically centered.
Features
- It doesn't get easier or faster: To replace the cutter, simply release the clamping lever, replace the cutter, and fold the lever back in.
- The dust extraction is integrated into the base plate. As a result, chips are optimally collected.
- The milling depth is permanently locked. When you press the Permafix button, the clamping releases, allowing you to comfortably set the milling depth. The widely spaced LEDs ensure optimal illumination of the milling area in all lighting conditions. Secure the parallel stop and the inserts with both wing bolts in the base plate. Position stop with height clamping for recurring working depths. For dovetail applications, you can additionally secure the milling depth. In combination with the router adapter LO-FA and the guide rail F-LR, you can drill safely and accurately. For rapid work progress, simply deactivate the Permafix clamp.
Applications
- Dowel milling with parallel stop
- Rolling out
- Machining of bevel edges
- Rows of holes
- Groove milling
- Materials such as: solid wood, panel materials
Technical data
- Milling depth 0 - 55 mm
- Saw spindle Ø 8 mm
- No-load speed 10,000 - 24,000 1/min
- Power consumption 1100 W
- Extraction connection Ø 29 mm
- Weight 3.1 kg
- Universal motor 230 V / 50 Hz
Scope of delivery
- 1 Parallel guide with fine adjustment
- 1 Tension guide
- 1 Copying sleeve 20 mm
- 1 Copying sleeve 30 mm
- 1 Copying sleeve 40 mm
- 1 Copying sleeve adapter
- 1 Extraction hose adapter
- 1 Extraction hose adapter for rail F
- 1 Connection cable 4 m
- Transport and storage box MAX3
