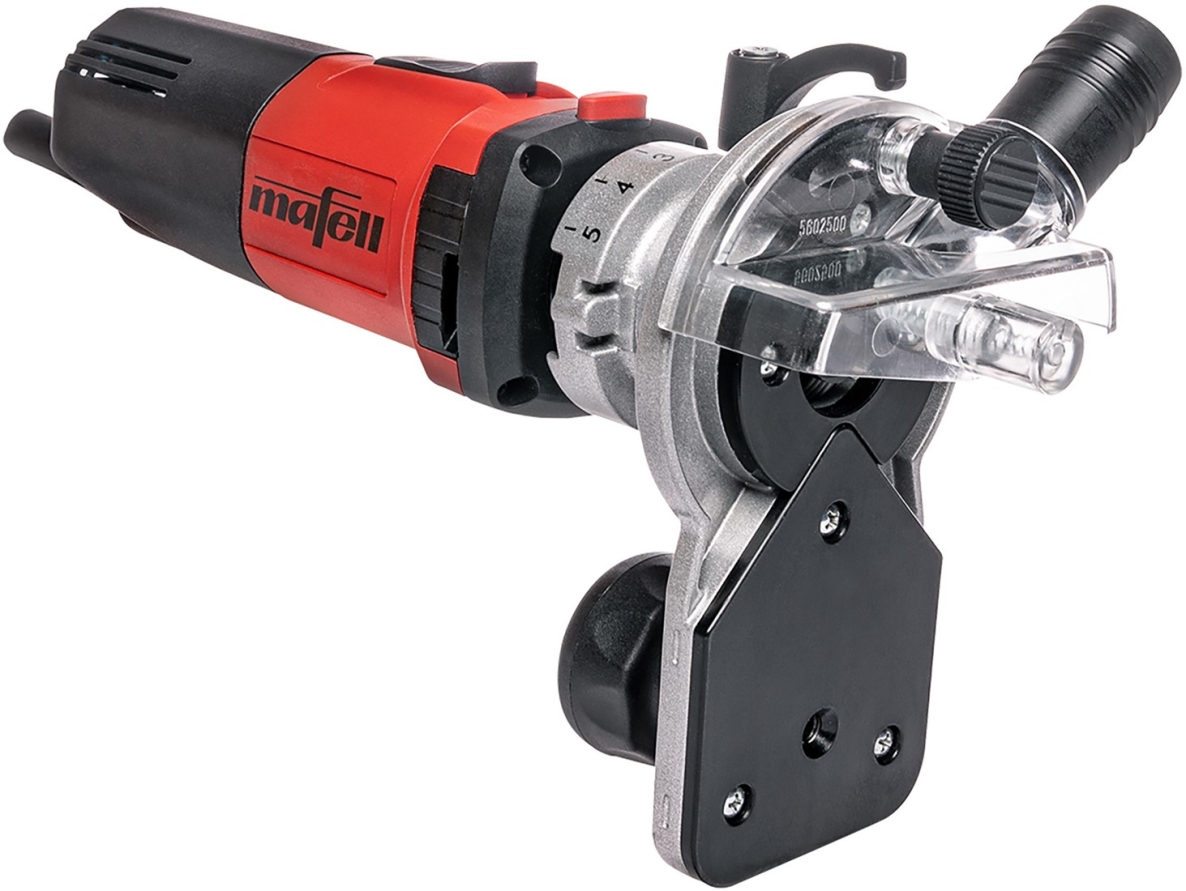

Mafell 91C501 KF1000 Edge Router in T-Max
Special Features
- The digital electronics are equipped with a soft start, constant load speed, limited idle speed, and overload protection.
- The labyrinth seal provides durable protection for the spindle and bearing against the smallest particles, dust, and chips.
- Extremely quiet with a sound pressure level of only 71 dB (A)
- Spindle stop for easy cutter changes
- Made in Germany
- Stepless fine adjustment of the milling depth with a screw adjustment with 1/10 mm scale
- The extraction hose connection is adjustable for an individually optimal working position
- The support ring can be removed for edge machining
- Large, Tilting support surfaces for precise results
- For optimal milling speed, the rotational speed can be adjusted steplessly
- Thanks to the large support surface, bevels can also be machined accurately
- For machining corners, the insertable extra stop provides secure guidance
- For machining sensitive materials, the brake on the ball-bearing guide ring prevents unsightly marks on the workpiece

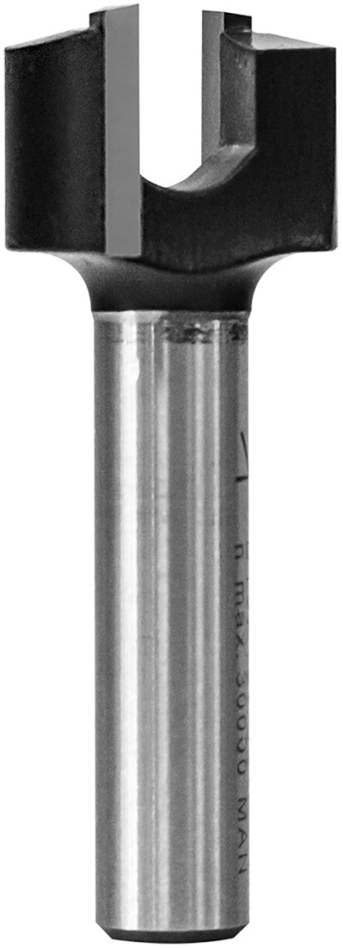

- Using commonly used milling cutters, edges on solid wood can also be machined
Applications
- Ideally suited for smooth and profiled edge finishing
- For solid wood, plastics, and veneer
Technical data
- Universal motor 230 V / 50 Hz
- Power input 1000 W
- Chopping neck 43 mm
- Collet 8 mm
- Dimensions L x H x W 103 x 226 x 328 mm
- No-load speed 4,000 - 25,000 1/min
- Weight 2.1 kg
- Sound pressure level dB (A) 71 dB
Supplied as standard
- 1 Support plate for 43 mm collet
- 1 Extraction hose adapter
- 1 Open-end wrench 17 mm
- 1 Connection cable 4 m
- 1 Union nut OZ 8
- 1 collet OZ 8, 8 mm
- Storage case T-Max
