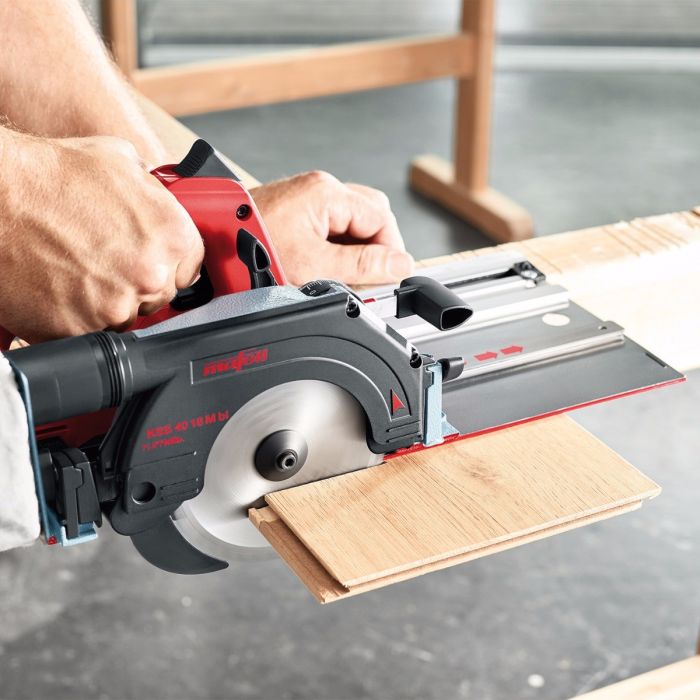

Mafell 91D501 KSS 40 18M BL Crosscut Saw System 18V 5.5Ah Li-HD in T-max
Special features
- With a cutting depth of up to 42 mm, the new KSS 40 18M bl covers over 80% of all applications on the construction site, ensuring a clean cut and the high performance you expect from MAFELL.
- The new compact brushless motor is extremely durable, efficient, and maintenance-free.
- The battery capacity is utilized to the maximum thanks to optimal efficiency.
- This enables fast work.
- The low weight and state-of-the-art battery technology make the KSS 40 18M bl extremely easy and comfortable to use – cordless.
- The KSS 40 18M bl crosscut saw offers you five saws in one box. The KSS 40 18M bl can be used as a chop saw, handheld circular saw, plunge saw, shadow joint saw, and as a handheld circular saw on a flexi-rail.
- This means you have the perfect mobile saw ready in an instant, anytime and anywhere.
- Crosscutting with handheld circular saw with parallel fence or freehand
- It is that simple: With the KSS 40 18M bl crosscut saw, the handheld circular saw and the guide rail are firmly connected.
- Together they form the sawing system.
- A fixed and an adjustable fence underneath The ruler ensures that sawing can be done at a preset angle of -45° to +60°. The saw is then simply pressed against the workpiece using both stop cams. Saw and done! The ruler is automatically retracted to the starting position after the cut. Thanks to the flat side of the saw, it is easy to saw close to the wall for cutting shadow joints or expansion joints 13mm wide or more. It is that simple: Very precise ripping is possible with the help of the parallel fence. The Flexi ruler FX 140 makes it possible to make precisely guided cuts up to 1.4m long. The Flexi ruler FX 140 can be easily rolled up and therefore fits neatly into the MAFELL. T-Max of the saw machine.
- The height guide columns make plunge cuts easy and precise.
- The spring-loaded Flippkeil splitter knife does not need to be removed for plunge cuts, thereby ensuring safe and secure operation.
- With the KSS 40 18M bl, you have a true multi-talent in a single system box.
- Over 80% of all sawing work in interior construction can be done with a 40 mm saw cut.
Technical data KSP 40
- Speed (unloaded) 6,700 1/min
- Sawing depth with ruler miter angle 90° 0 – 40 mm
- Sawing depth without ruler miter angle 90° 0 – 42 mm
- Sawing depth with guide rail miter angle 45° 0 – 27 mm
- Miter range 0 – 45°
- Sawing angle range + 45° – - 60°
- Weight including crosscut rail, with battery 3.65 kg
- Weight without crosscut rail, with battery 2.8 kg
Standard included
- 1 Saw blade-HM 120 x 1.2/1.8 x 20 mm, Z 24, WZ, Order no. 092558
- 1 Crosscut rail S, Sawing length up to 292 mm; Order No.: 208169
- 1 Parallel stop; Order No. 203180
- 1 Stripping aid; Order No. 203782
- 1 Dust bag; Order No. 206787
- 1 Hexagon screwdriver 4 mm; Order No. 093074
- 1 Flexible ruler FX 140, 1.4 m with anti-splinter strip; Order No. 204372
- 1 Battery PowerStation APS M; Order No. 094492
- 2 Battery PowerTank 18 M 99, 18V, 99 Wh (LiHD); Order No. 094503
- 2 Clamping pieces; Order No. 203773
- T-Max case
