Mafell 971901 ERIKA 85 Combi Saw
The best mobile table saw in the world, saws perfectly in any location!
Now a total of 5 years warranty on Mafell Machines(*)
(*) Now a total of 5 years warranty on machines after registration of your machine, via the enclosed warranty form.
The best table saw ever made, top German quality, beats every competitor, the best finish of its kind!

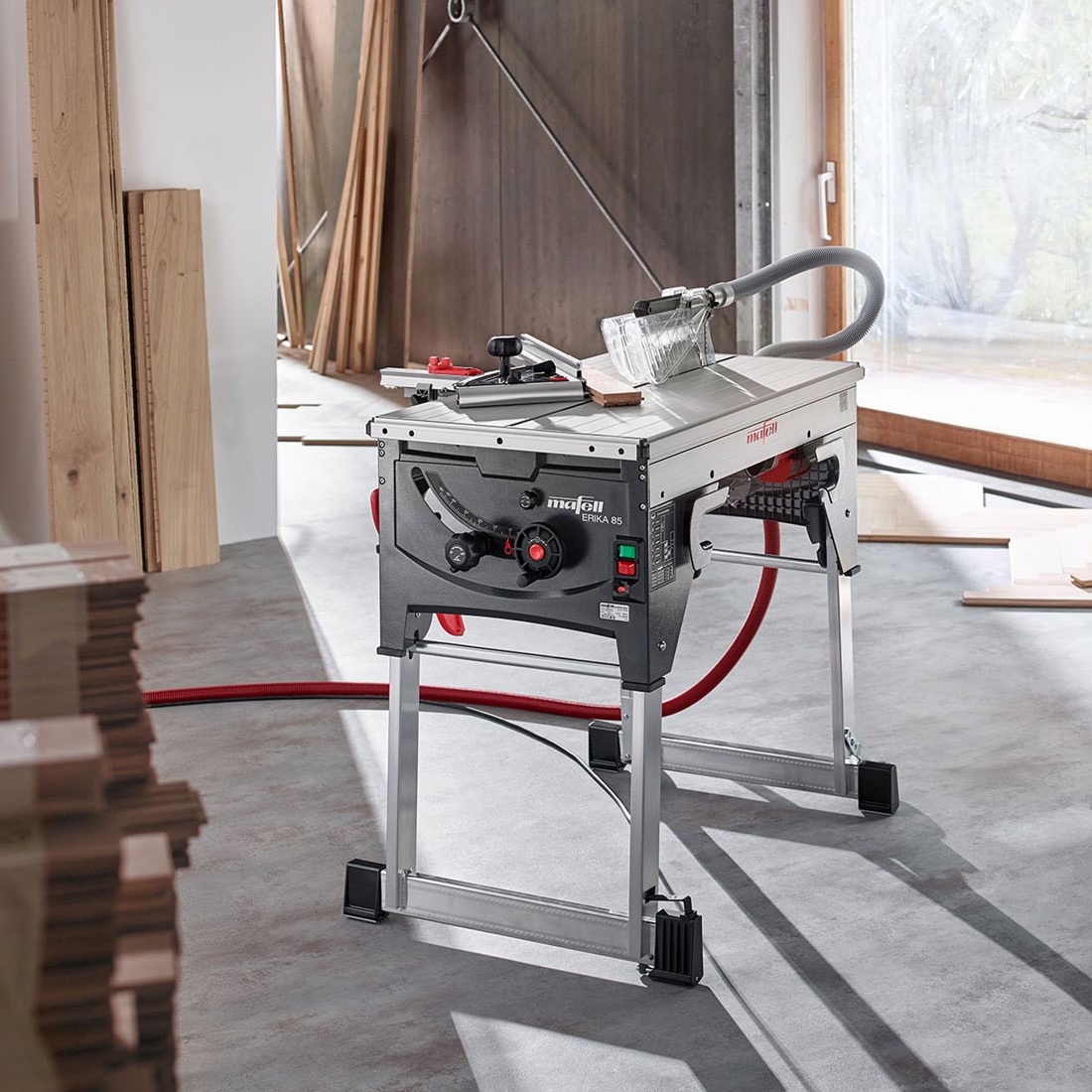

Features Combi Saw ERIKA 85 Ec

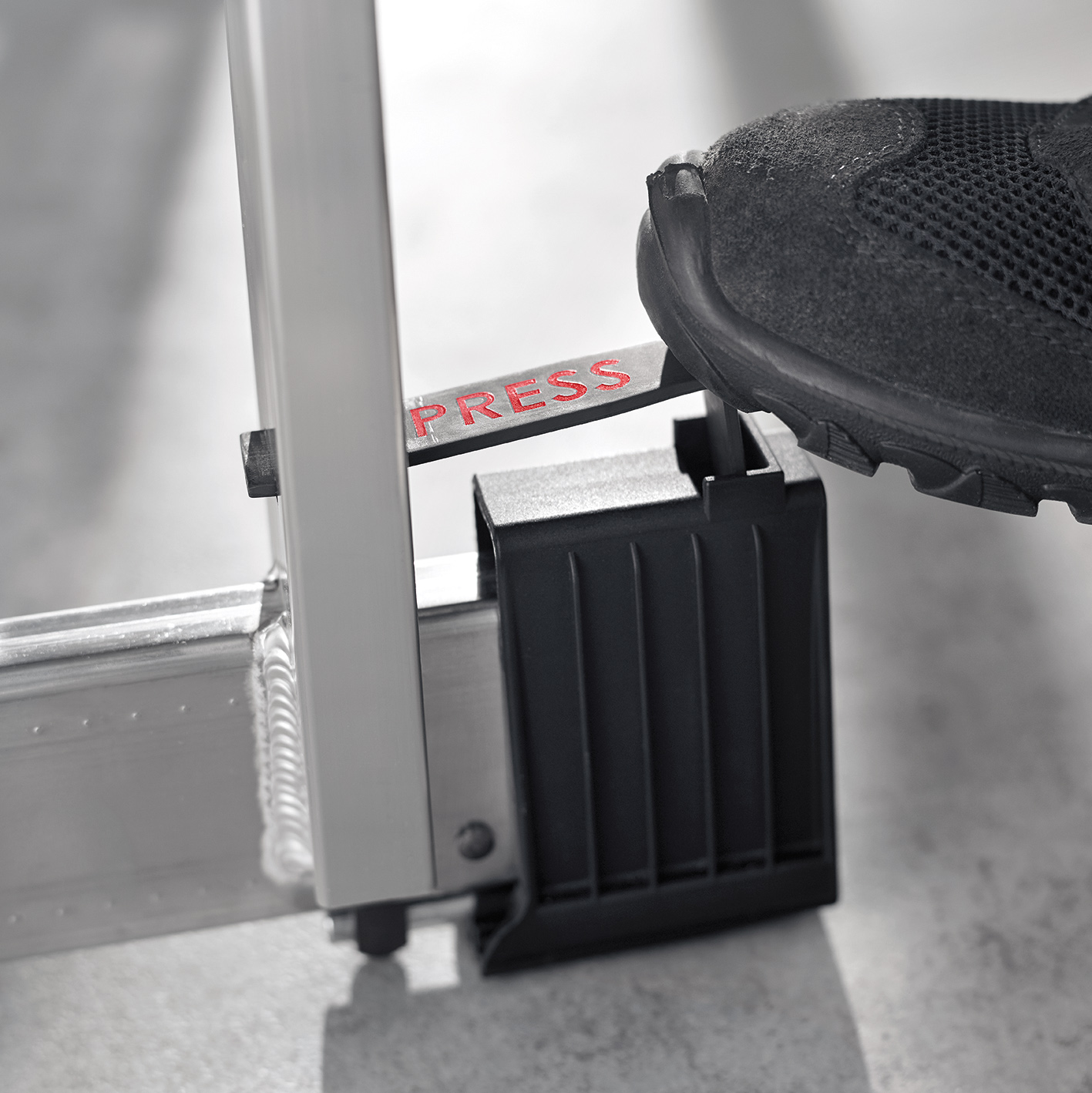

- The ERIKA by Mafell was the first combination saw machine in the world. Since then, the ERIKA has become a household name. After nearly 40 years of experience, the new generation of the ERIKA offers everything you can expect as a user of a modern combination saw. With the integrated Quickstand, the ERIKA stands on 4 stable aluminium legs in just a few seconds. Protective rubber stoppers on the feet furthermore prevent slipping or vibration. The unique dust channel bundles the sawdust and discharges it optimally. Thanks to this new development, the dust extractor is even more effective. Result: cleaner work in a cleaner workplace! The operation of the ERIKA leaves nothing to be desired. The clearly positioned controls are logically arranged on the front of the machine, wherever you are during work; nothing has suddenly disappeared. Just compare the ERIKA!
- Thanks to the E-control and the original MAFELL saw blade, it is possible to process materials other than wood, such as plastics or aluminum profiles.
- Further advantages of the ERIKA 85: extremely stable blade profile, miter range from -3° to 48°, a retractable splitter knife, and a max. cutting length of 430 mm.
- New dust channel optimizes extraction – for even less dust during work.
- Lightest combi saw in its class – for quick and effortless transport.
- Adjustable speed – for processing wood, plastics, or aluminum profiles.
- The stop switch prevents the machine from being switched on unintentionally after a power interruption.
- For easy handling, the rear legs of the ERIKA equipped with wheels.
Applications
- Cutting and ripping (longitudinal sawing)
- Table circular saw function
- Mitre sawing up to 48°
- Materials such as: solid wood, sheet materials, parquet and laminate, aluminium profiles, plastic
Technical data ERIKA 85 E
- Sawing height - 1 – 85 mm
- Sawing height at 45° - 1 – 59 mm
- Mitre range -3 - 48°
- Sawing length 430 mm
- Saw table dimensions 525 x 915 mm
- Working height without base 415 mm
- Working height on base 891 mm
- No-load speed 2,050 – 4,300 1/min
- Power input 2,500 W
- Extraction connection Ø 58 mm
- Weight (incl. multi-purpose fence MFA) 40 kg
- Cutting speed 26.8 – 56.3 m/s
- Universal motor 230 V / 50 Hz
Standard included
- Combi Saw Erika 85 E Order.
- 1 Saw blade - HM 250 x 2.8 x 30 mm, Z 40, WZ; Order no. 092465
- 1 Wheel mounting set; Order No. 202889
- 1 Multifunctional stop MFA with switchable grid; Order No. 207980
- 1 Push rod; Order No. 034901
- 1 Hexagon screwdriver 6 mm; Order No. 093081
- 1 Extraction set with 2 connections; Order No. 093670
- 1 Clamp piece; Order No. 038294
- 1 Quickstand
- 1 Connection cable 4 m
