Mafell 972001 ERIKA70Ec Combi Saw
Now a total of 5 years warranty on Mafell Erika 70 Machines(*)
(*) Now a total of 5 years warranty on machines after registration of your machine, via the enclosed warranty form.
Features Combi Saw ERIKA 70 Ec
- The ERIKA by Mafell was the world's first combi saw.
- Since then, the ERIKA has become a household name.
- After nearly 40 years of experience, the new generation of the ERIKA offers everything you can expect as a user of a modern combi saw.
- With the integrated Quickstand, the ERIKA stands on 4 stable aluminium legs in just a few seconds.
- Protective rubber stoppers on the feet furthermore prevent the slipping or vibrating.
- The unique dust channel bundles the sawdust and removes it optimally.
- Thanks to this new development, the extractor is even more effective.
- Result: cleaner working in a cleaner workplace!
- The operation of the ERIKA leaves nothing to be desired.

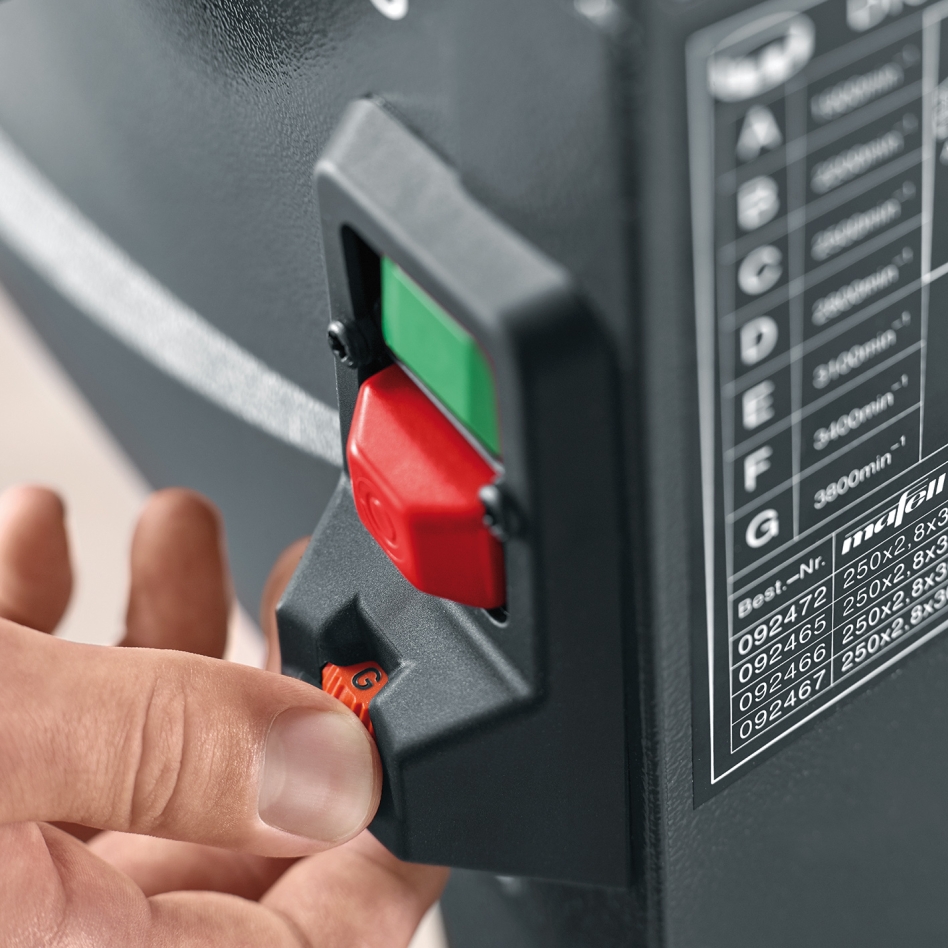

- The clearly positioned controls are logically arranged on the front of the machine, wherever you are during work; nothing has suddenly disappeared.
- Just compare the ERIKA!
- Thanks to the E-control and the original MAFELL saw blade, it is possible to process materials other than wood, such as plastics or aluminum profiles.

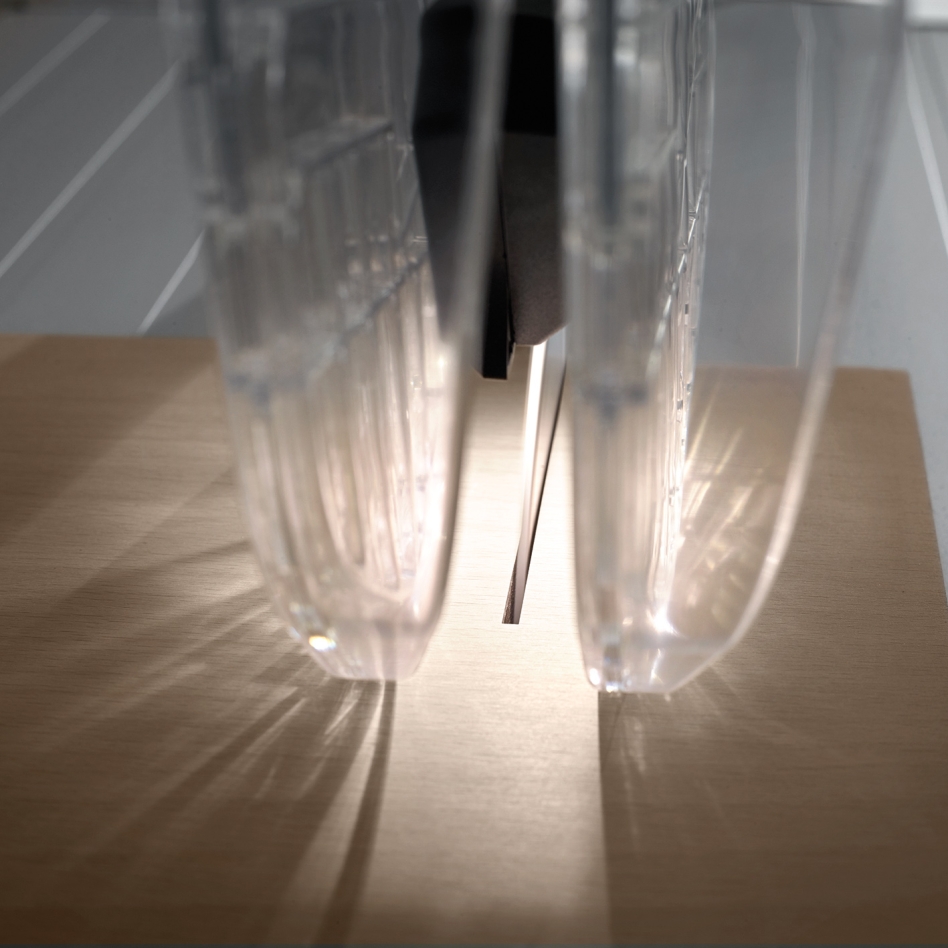

- Further advantages of the ERIKA 70: extremely stable blade profile, miter range from -3° to 48°, a retractable splitter knife, and a max. cutting length of 340 mm.
Advantages
- New dust channel optimizes extraction – for even less dust during work.
- Lightest Combi saw in its class – for quick and effortless transport.
- Adjustable speed – for processing wood, plastics, or aluminum profiles.
- The stop switch prevents the machine from being switched on unintentionally after a power interruption.
Applications
- Crosscutting and ripping (longitudinal sawing)
- Table circular saw function
- Mitre sawing up to 48°
- Materials such as: solid wood, sheet materials, parquet and laminate, aluminum profiles, plastic
Technical data ERIKA 70 E
- Sawing height - 1 – 72 mm
- Sawing height at 45° - 1 – 49 mm
- Miter range -3 - 48 °
- Sawing length 340 mm
- Saw table dimensions 525 x 818 mm
- Working height without base 415 mm
- Working height on base 891 mm
- No-load speed 2,050 – 4,300 1/min
- Power input 2250 W
- Extraction connection Ø 58 mm
- Weight (incl. Universal stop) 37.2 kg
- Cutting speed 24.2 – 50.7 m/s
- Universal motor 230 V / 50 Hz
Standard delivery
- Combi Saw Erika 70 E Order No. 972001
- 1 Saw blade-HM 190 x 1.2/2.0 x 30 mm, Z 36, WZ, for universal use; Order No.: 092460
- 1 Universal stop with stop ruler; Order No. 201611
- 1 Push stick; Order No. 034901
- 1 Hexagon screwdriver 6 mm; Order No. 093081
- 1 Extraction set with 2 connections; Order No. 093639
- 1 Clamping piece; Best. No. 038294
- 1 Quickstand
- 1 Connection cable 4 m
