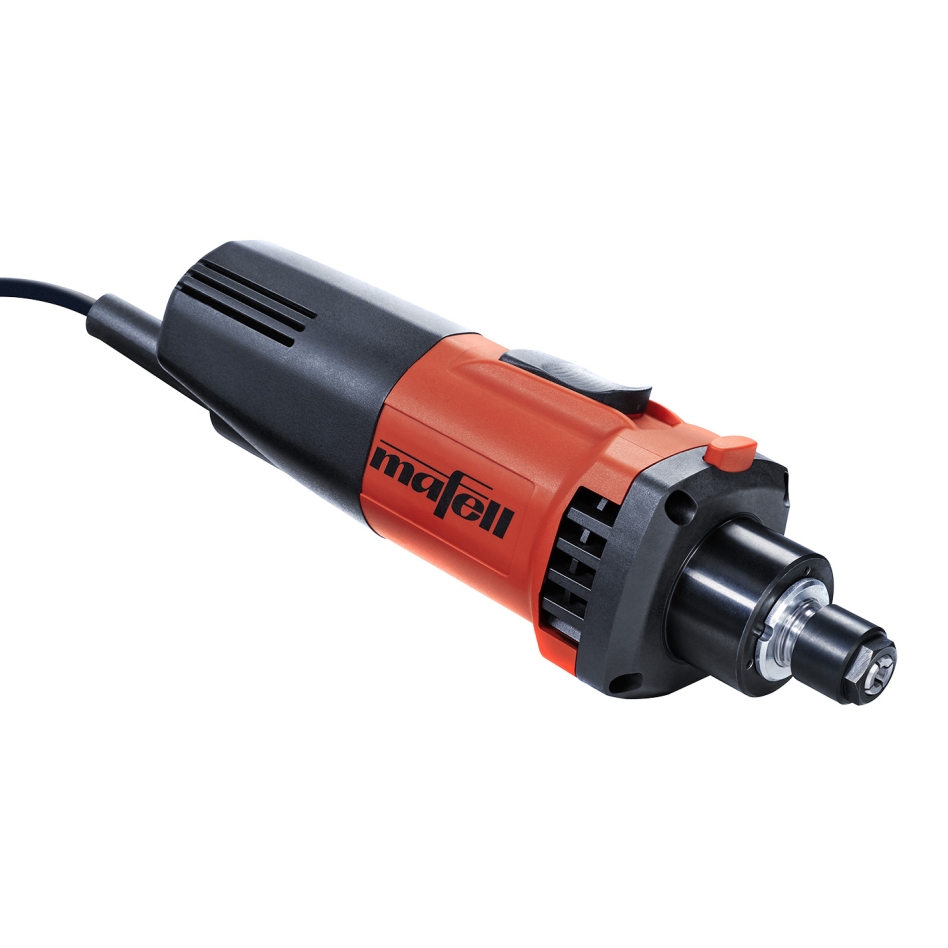

Mafell 9M0010 FM800 Milling Motor 800 Watts
Features
- MAFELL milling motors are manufactured in Oberndorf am Neckar and subjected to strict quality controls.
- Before delivery, every milling motor is 'broken in' in the test booth.
- This ensures a longer operating and service life.

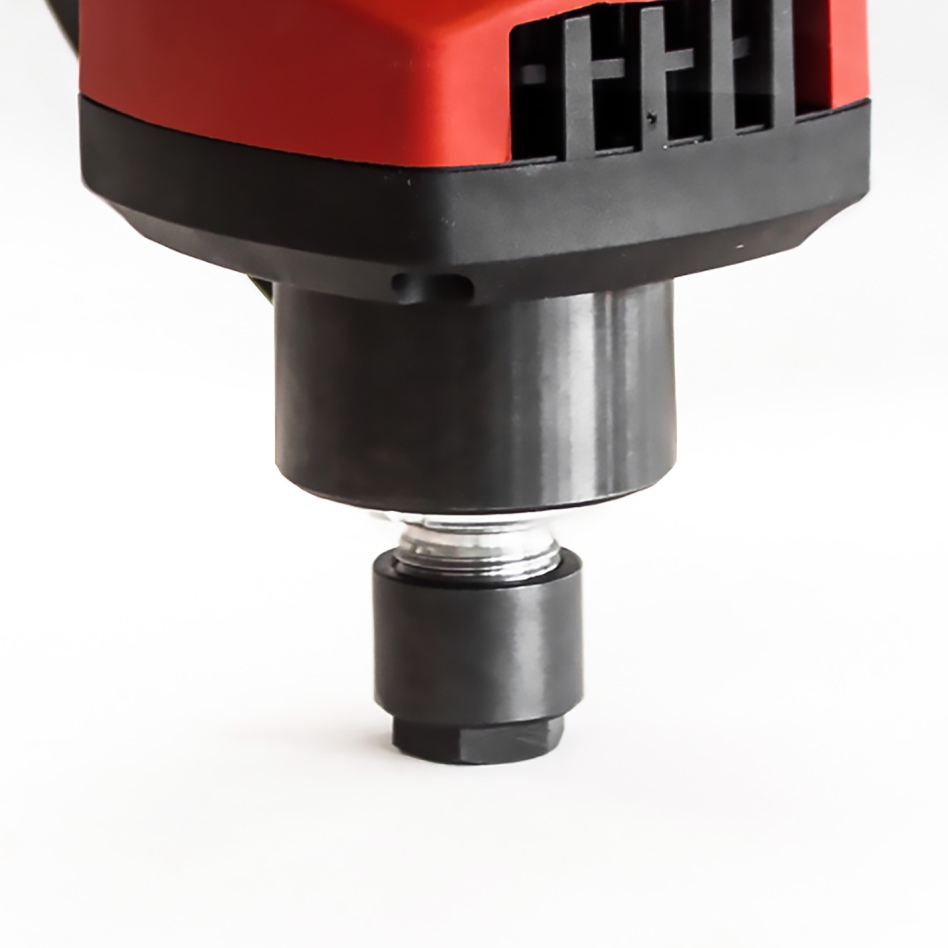

- Maximum eccentricity thanks to the precise alignment of all components, such as the double-bearing spindle for absorbing axial forces and the innovative, tool-free quick-clamping system.
- Please note: this machine is usually used for special applications and therefore has only a 1-year manufacturer's warranty.
Applications
- Model making, mold making, advertising technology, engraving, jewelry, electrical engineering, stonework
- Gantry milling machines, cutting tables, grinding devices, flexible shaft
- Materials such as: wood, metal, plastics, foam, Styrofoam, stone
Technical data
- Dimensions (L x W x H) 254 x 79 x 73 mm
- Sound pressure level db (A) 71
- Collet / collet 43 / 6 mm
- Power consumption 800 W
- No-load speed 7,000 – 25,000 1/min
- Weight 1.60 kg
Standard included
- 1 open-end wrench
- 1 collet OZ 6 mm
- 1 Cable gland nut
- 1 Connection cable 4 m
