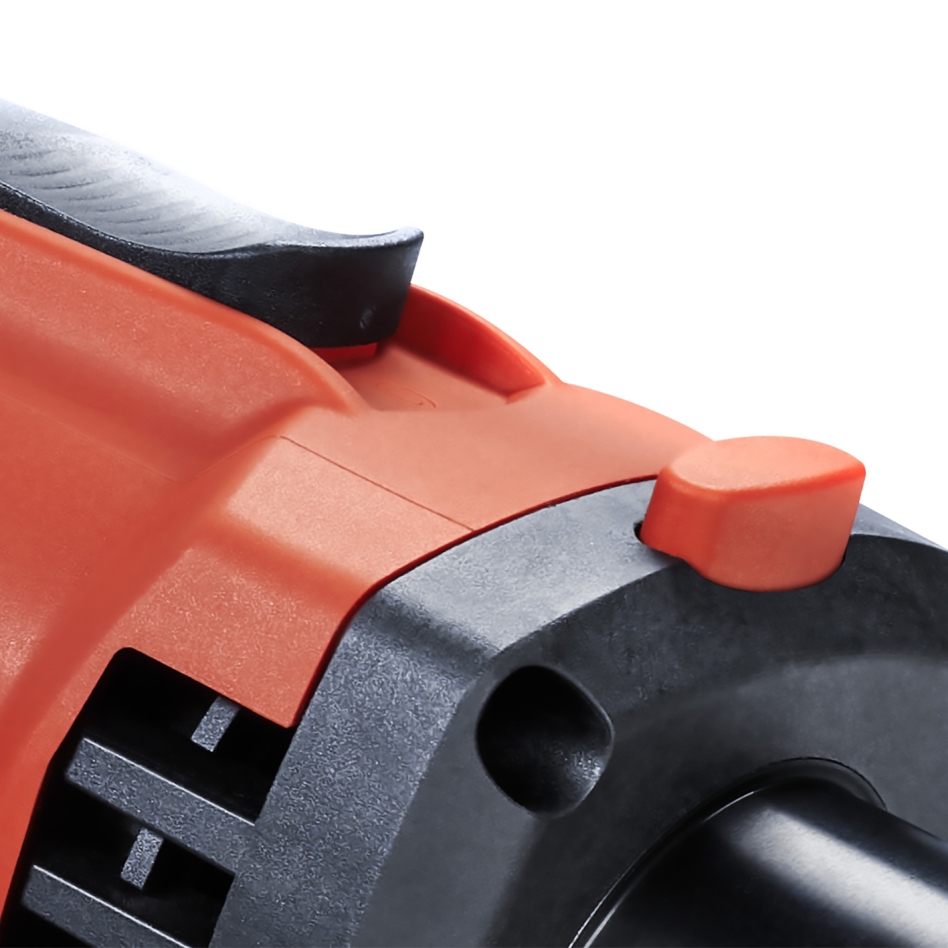

Mafell 9M0201 FM1000PV Milling Motor 1000 Watt
Features
- MAFELL milling motors are manufactured in Oberndorf am Neckar and subjected to strict quality controls.
- Before delivery, every milling motor is 'broken in' in the test booth.
- This ensures a longer operating and service life.
- Maximum eccentricity thanks to the precise alignment of all components, such as the double-bearing spindle for absorbing axial forces and the innovative, tool-free quick-clamping system.
- Duo-In: The speed can be adjusted steplessly for any application manually or via the portal interface.
- Additional status indication LED. With the Rapidfix cable, it can be used in the gantry.
- The FM 1000 PV has a noise level of only 71 dB (A) and is therefore very quiet.
Applications
- Model making, mold making, advertising technology, engraving, jewelry, electrical engineering, stonework
- Gandle milling machines, cutting tables, grinding devices, flexible shaft
- Materials such as: wood, metal, plastics, foam, Styrofoam, stone
Technical data
- Dimensions (L x W x H) 254 x 79 x 73 mm
- Sound pressure level dB (A) 71
- Clamping collar / collet 43 / 8 mm
- Power consumption 1000 W
- No-load speed 4,000 – 25,000 1/min
- PV connection M8 / 4-pin.
- Voltage supply in PV operation 8 - 56 V
- External control 0 - 10 V
- Weight 1.65 kg
Standard accessories included
- 1 open-end wrench
- 1 collet OZ 8 mm
- 1 gland nut
- 1 connection cable 4 m
