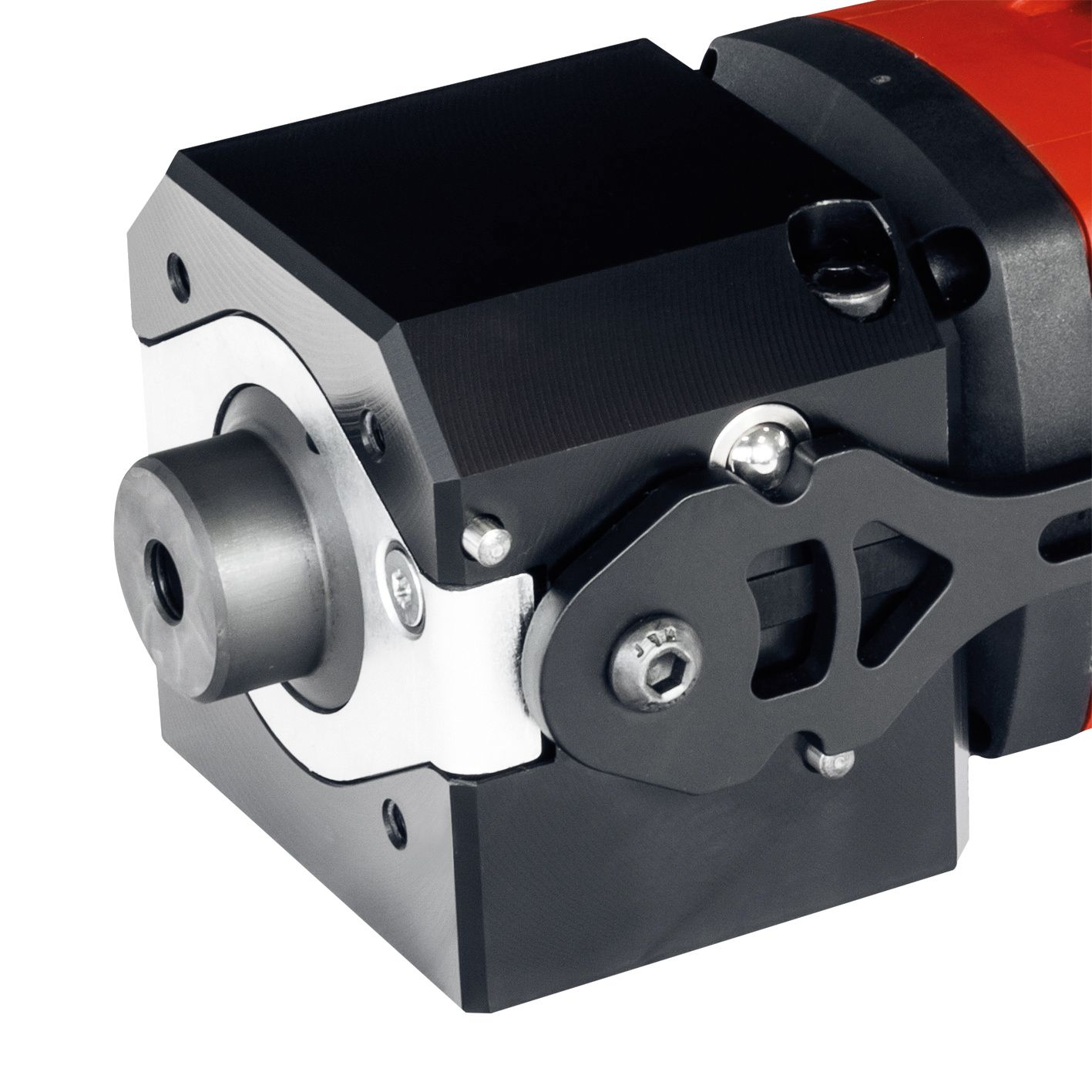

Mafell 9M1301 FM1000NC-WS Milling Motor 1000 Watt
With the FM 1000 NC-WS, MAFELL has developed a new milling motor bearing the label “Made in Germany”. The high quality standard and well-thought-out details make the MAFELL milling motor the best partner within its power class. The speed can be adjusted steplessly for a very wide range of applications. Furthermore, the digital electronics are equipped with soft start, constant speed under load, speed reduction at no load, and overload protection.
Applications
- Model making, mold making, advertising technology, engravings, jewelry, electronics, stonemasonry industry
- Ideal for gantry milling machines, cutting tables, grinding devices, and flexible shafts
- For wood, metal, plastic, foam, Styrofoam, stone
Features
- Duo-In: The speed can be adjusted steplessly for any application manually or via the gantry interface. Additional status indicator LED.
- With the Rapidfix cable, it can be installed in the gantry.
- The FM 1000 NC-WS has a noise level of only 74 dB (A), making it very quiet.
- MAFELL milling motors are manufactured in Oberndorf am Neckar and subjected to strict quality controls. Before delivery, every milling motor is ‘broken in’ in the test cabin. This ensures a longer service life and service life.
- Maximum eccentricity thanks to the precise coordination of all components, such as the double-bearing spindle for absorbing axial forces and the innovative, tool-free quick-clamping system.
- Thanks to the ‘patent pending’, tool-free quick-clamping system, various milling cutters can be mounted comfortably and quickly.
Technical data
- Power input 1,000 W
- Universal motor 230 V / 50 Hz
- No-load speed 4,000 - 25,000 1/min
- NC connection M8 / 4-pin.
- Voltage supply in NC operation 8 - 56 V
- External control 0 - 10 V
- Dimensions (L x W x H) 280 x 92 x 85 mm
- Saw shaft Ø 8 mm
- Sound pressure level db (A) 74
- Portal mounting (bore hole) 6 x M6
- Weight 2.8 kg
Scope of delivery
- 1 NC control cable M8 / 4-pin, 5 m 1
- Connection cable 0.75 + 4 m
- In cardboard box
