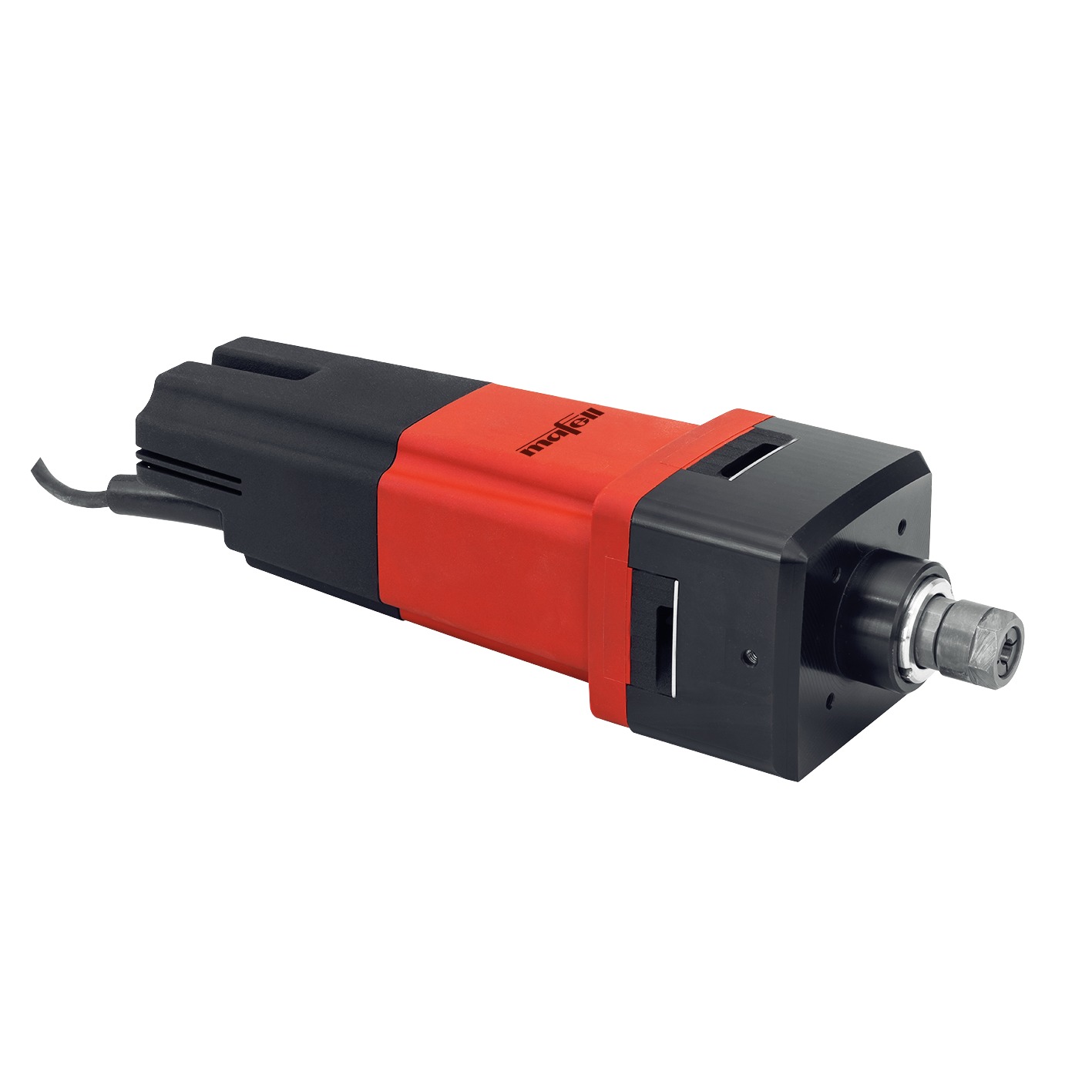

Mafell 9M1801 Milling Motor FM 1650 NC-LO
Special Features
- With the FM 1650 PV-LO, MAFELL has developed a new milling motor bearing the label “Made in Germany”. The high quality standard and well-thought-out details make the MAFELL milling motor the best partner within its power class.
- The speed can be adjusted steplessly for a very wide range of applications. Furthermore, the digital electronics are equipped with soft start, constant speed under load, speed reduction at no load, and overload protection.
- Duo-In: The speed can be adjusted steplessly for any application manually or via the portal interface. Additional LED status indicator
- Mounting to the gantry possible
- Maximum eccentricity due to the filigree alignment of all components and the fact that anchors and spindles are produced and balanced in one piece
- The spindle can be secured to the flat points of the spindle via the push button or with a wrench
- The labyrinth seal provides durable protection for the spindle and bearing against the smallest particles, dust, and chips
Suitable for:
- Model making, mold making, advertising technology, engravings, jewelry, electronics, stonemasonry industry
- Ideal for gantry milling machines, cutting tables, grinding devices, and flexible shafts, drive motor for saw and milling tables
- For wood, metal, plastic, foam, Styrofoam, stone
Technical data
- Power input: 1650 W
- Universal motor: 230 V / 50 Hz
- No-load speed: 4000 - 23000 rpm
- NC connection: M8 / 4-pin
- External control: 0-10 V

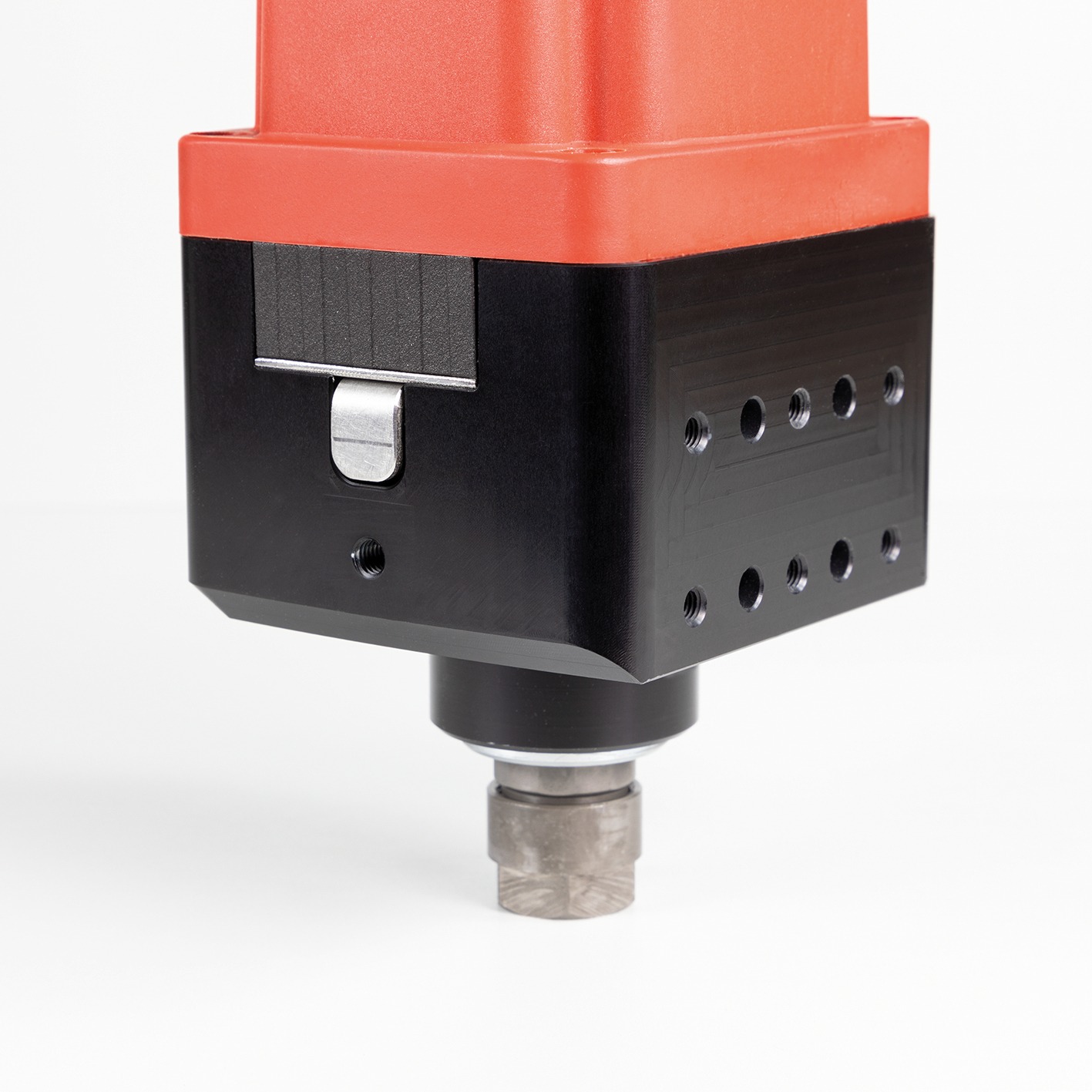

- Portal mounting (drilled hole): 6 x M6
- Clamping neck: 43 mm
- Collet: 8 mm
- Sound pressure level: 85 db (A)
- Weight: 3.22 kg
Scope of delivery
- 1 collet OZ 12, 8 mm
- 1 open-end wrench
- 1 NC control cable M8 / 4-pin, 5 m
- 1 Connection cable 4 m
